To remove or install the CompactFlash card for the CTP2000 series with the PP310 and PP332 processors
(see Figure 38 on page 99):
1. Power off the unit.
2. Remove the processor RTM by unscrewing the retaining screws and pushing the extractors outward
with the latching buttons depressed.
3. Remove the CompactFlash card retaining screw and nut. You can then remove or install the
CompactFlash card in the flash socket (see Figure 38 on page 99).
4. Reinstall the CompactFlash card retaining screw and nut.
5. Reinstall the processor RTM into the chassis, and secure the retaining screws.

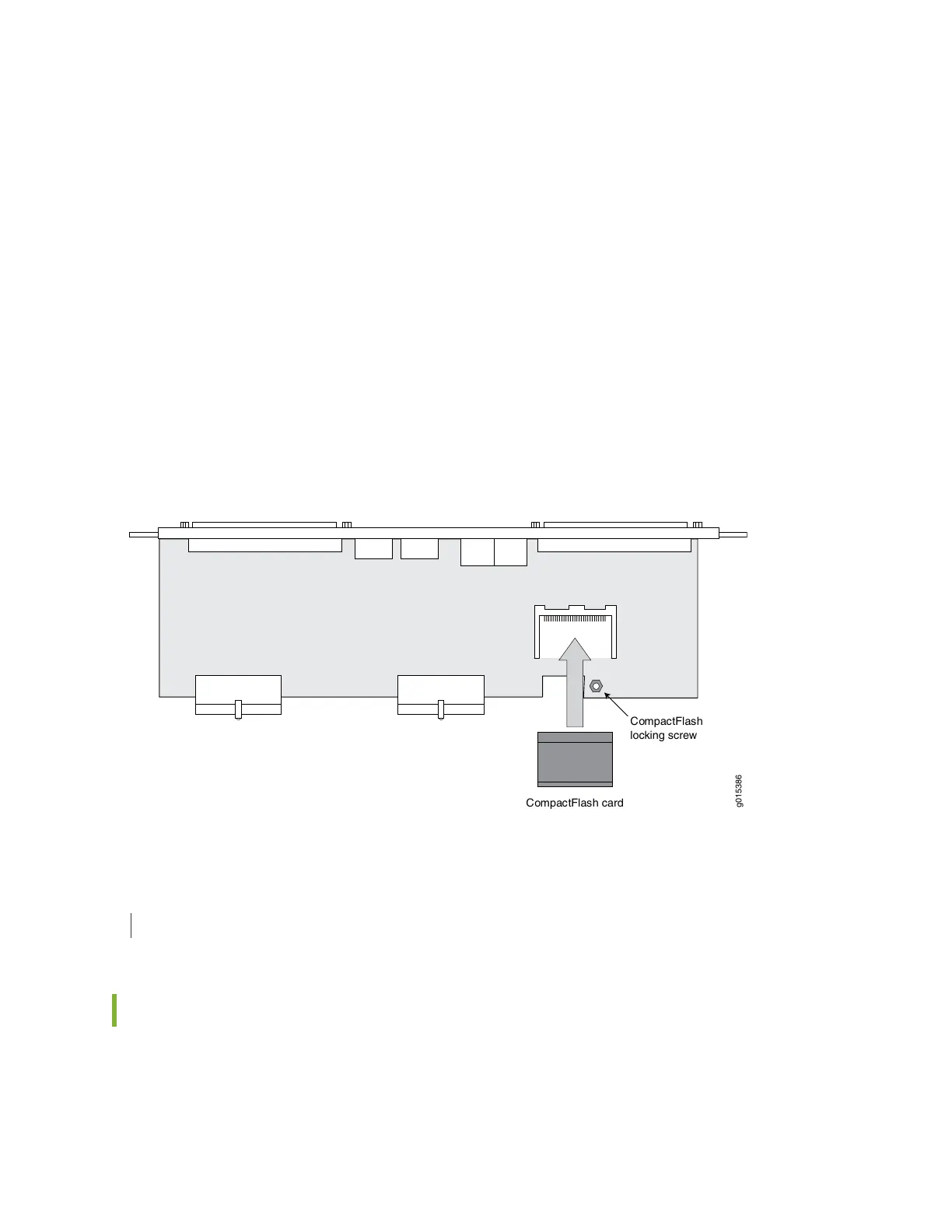

Figure 38: CompactFlash on the RTM
IIIIIIIIIIIIIIIIIIIIIIIIIIIII
C ompactFlash card
C ompactFlash
locking screw
g015386
RELATED DOCUMENTATION
Installing a CTP Interface Module, Processor Module, or Clock Module | 95
Installing a PMC on CTP2000 Platforms
The PCI mezzanine card (PMC) is mounted on the processor module and can be installed or replaced in
the field. Figure 39 on page 100 displays the location of the PMC.
99
