38  Replacing a Mini-GBIC Transceiver
Replacing a Mini-GBIC Transceiver
To remove a mini-GBIC transceiver from an interface module:
1. Push in the transceiver release latch (located on the underside of the
transceiver) until it locks into place, disengaging the transceiver.

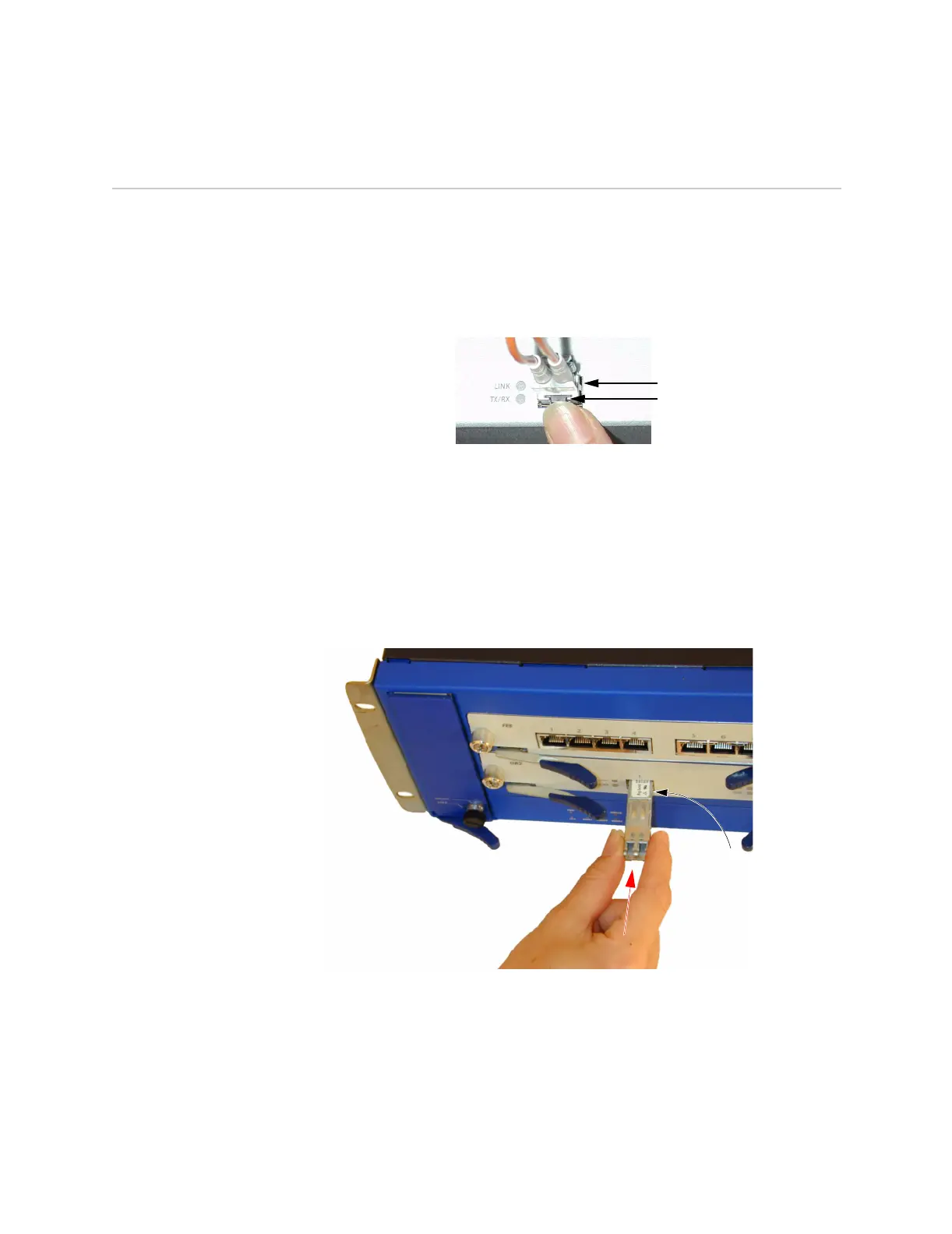

Figure 24: Disengaging the Transceiver
2. Grasp the transceiver at both sides, and pull the transceiver toward you to
remove it from the interface module.
To install a mini-GBIC transceiver into an interface module:
1. Holding the transceiver with the label faceup, insert it into the transceiver slot.
Figure 25: Inserting the Transceiver
2. Check that the release latch extends fully at the front of the latch slot.
Transceiver
Release Latch
Push in the release
latch to disengage the
transceiver.
Label is faceup.
Slide the transceiver into
the transceiver slot.
