Keithley 2001-TCSCAN User Manual

Card Connections and Installation
2-7
2.4.2 Voltage connections
Figure 2-6 shows typical connections for voltage measure-
ments. Note that up to nine voltage sources can be switched
with this configuration. This basic configuration can be used
for the following types of measurements:
• DCV
• ACV
• Frequency
Channels (2-10) can be used with this configuration.
V
HI
LO
V
HI
LO
V
HI
LO
V
HI
LO
V
HI
LO
V
HI
LO
V
HI
LO
V
HI
LO
V
HI
LO
Voltages
Under Test
HI
HI
LO
HI
LO
HI
LO
HI
LO
HI
LO
HI LO
HI
LO HI LO HI LO
HI LO
CH 2
CH 3
CH 4
CH 5
OUT A
CH 6
CH 7
CH 8
CH 9
CH 10
OUT B
2001-TCSCAN Card
HI
LO
LO
To DMM Input Jacks

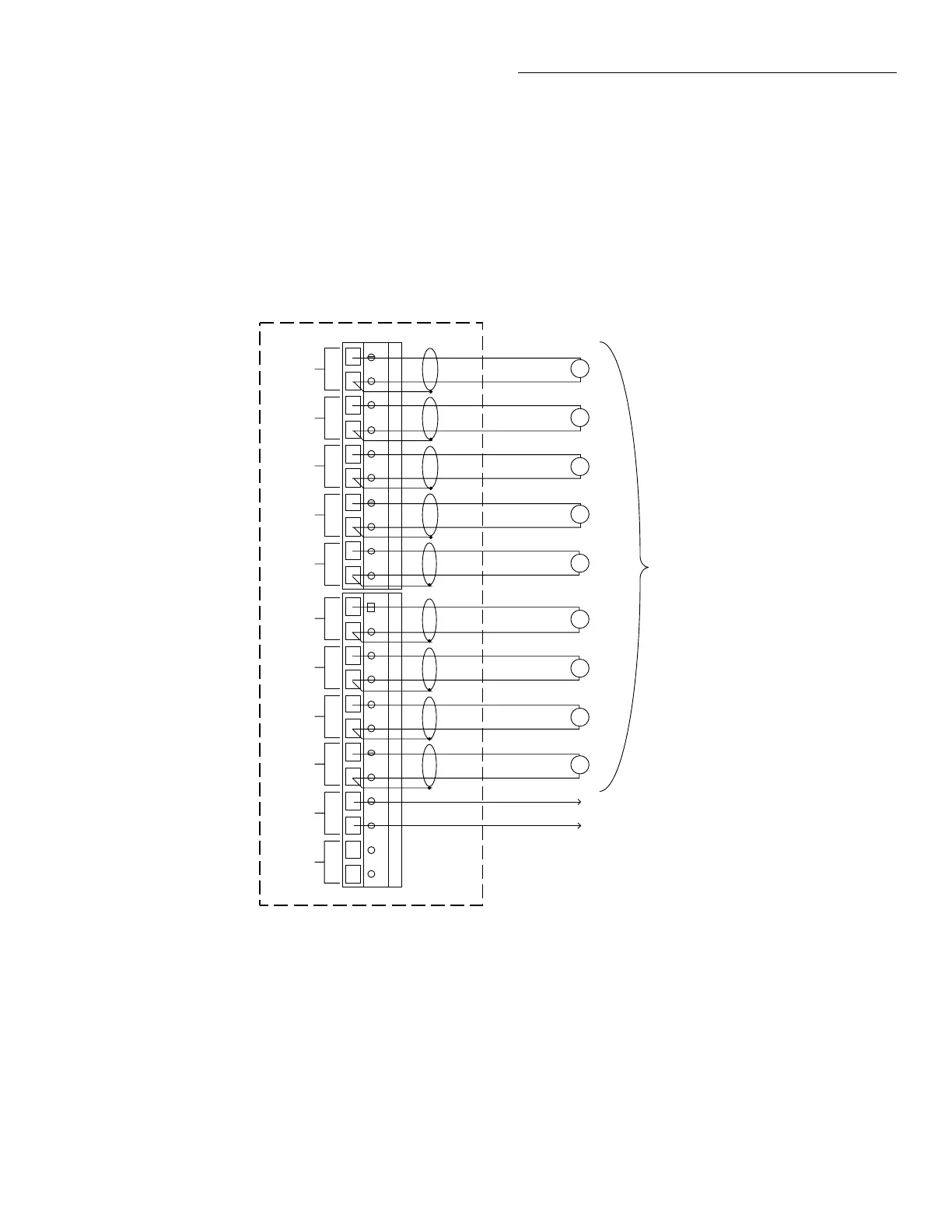

Figure 2-6
Connections for voltage scanning
