Keithley 2001-TCSCAN User Manual

Card Connections and Installation
2-13
Input HI
Out A
HI (Red)
Input LO
Out A
LO (Black)
Use this configuration
for : DCV
ACV
2-wire Ω
2-wire RTD
Frequency
Thermocouple
A. Models 2001 and 2002

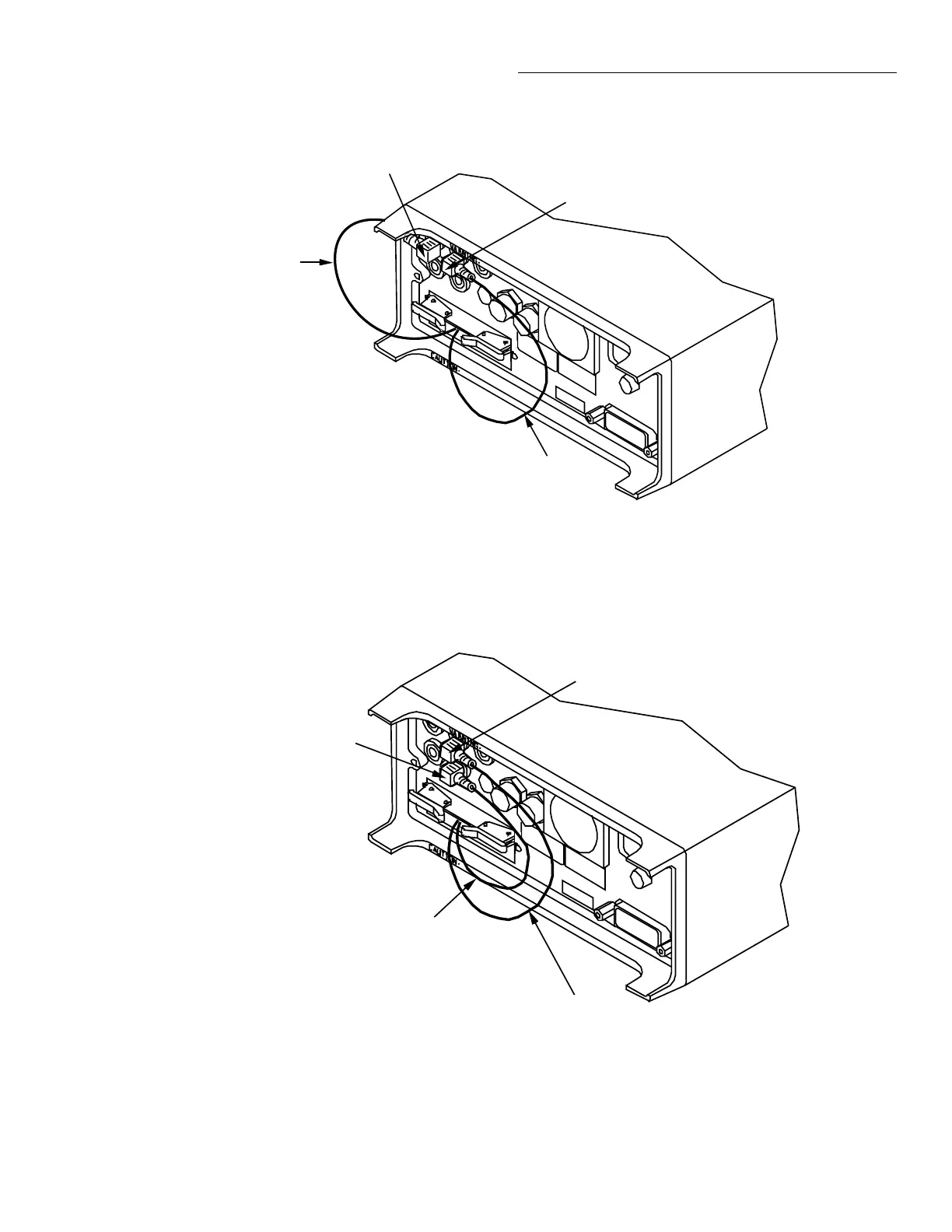

Figure 2-10
2-pole output connections
Input HI
Input LO
Out A
HI (Red)
Use this configuration
for : DCV
ACV
2-wire Ω
2-wire RTD (Model 2010)
Thermocouple
Out A
LO (Black)
B. Models 2000 and 2010
