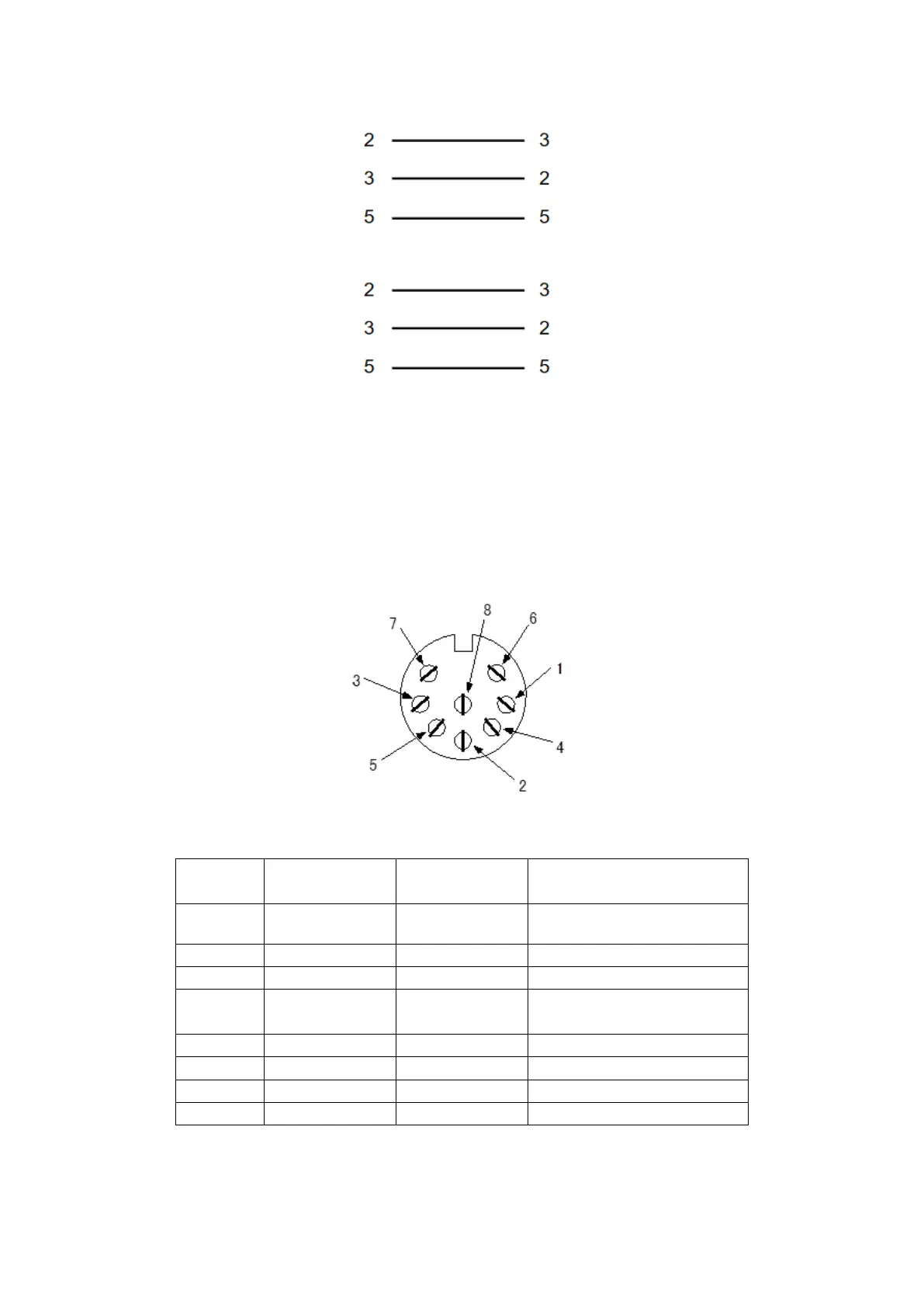

19.1.2 Interface cable
Balance
9-poles
PC
9-poles
Balance
9-poles
Printer
9-poles
19.2 DIN8P-interface to the data output
As per standard the balance is equipped with a DIN8P-interface. This duplicates the
data output of the RS232C-interface.
19.2.1 Technical data
Connection
DIN8P
Baud rate
1200/2400/4800/9600/19200 optional
Parity
Empty / Odd number / Even number
Pin connection:
Pin nr.
Signal
Input/Output
Function
1
EXT.TARE
Input
External tare subtraction
or zeroing
2
-
-
-
3
-
-
-
4
TXD
Output
Edit data
5
GND
-
Signal ground
6
-
-
-
7
-
-
-
8
-
-
-
