Maintenance Light bulbs

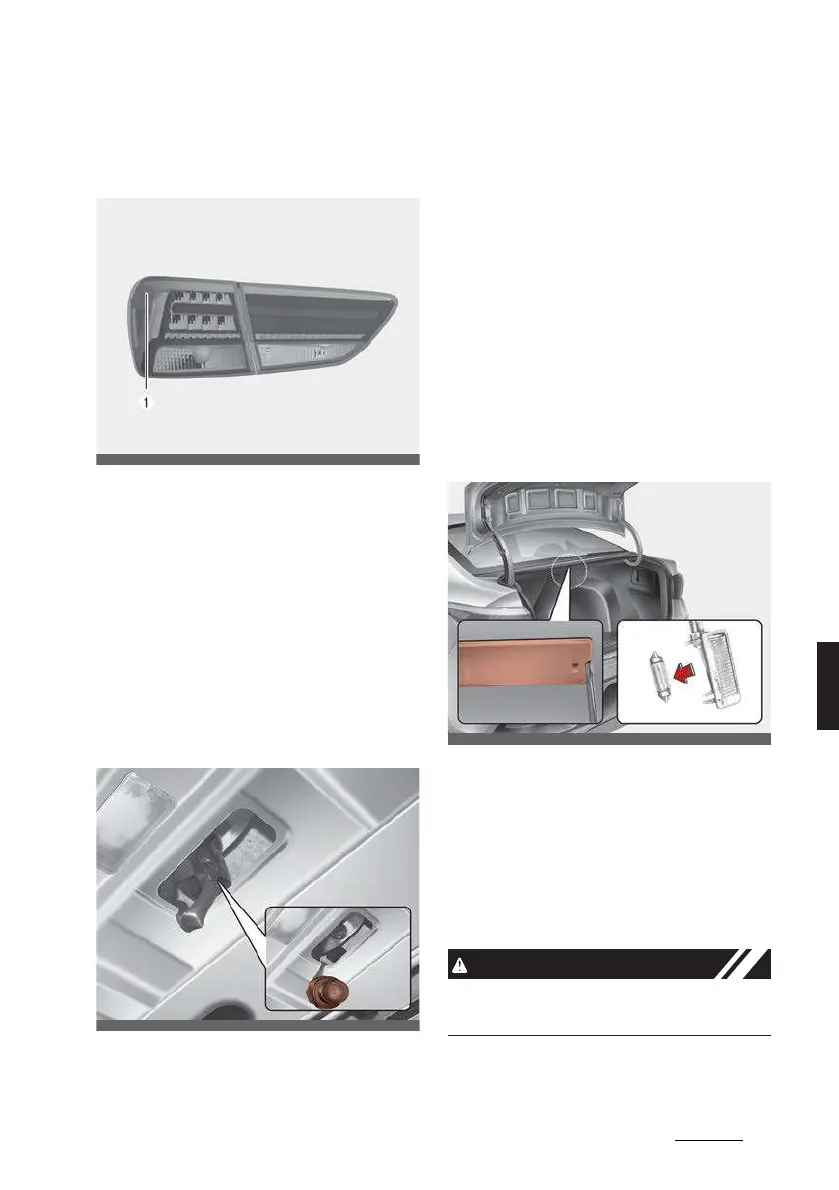

Side marker (rear) (LED type)
bulb replacement (Rear combina
-
tion lamp Type B) (for 4 Door)
If the Side marker (LED) (1) does not
operate, have the vehicle checked by an
authorized Kia dealer.
The LED lamps cannot be replaced as a
single component because it is part of
an integrated unit. The LED lamps have
to be replaced with the unit.
A skilled technician should check or
repair the Side marker (LED), for it may
damage related parts of the vehicle.
High mounted stop lamp bulb
replacement (for 4 Door)
1. Open the trunk lid.
2. Remove the socket from the housing
by turning the socket counterclock
-
wise until the tabs on the socket align
with the slots on the housing.
3. Remove the bulb from bulb-socket by
pulling it out.
4. Insert a new bulb by inserting it into
the bulb-socket.
5. Install the socket in the housing by
aligning the tabs on the socket with
the slots in the housing. Push the
socket into the housing and turn the
socket clockwise.
Trunk lamp bulb replacement (for
4 Door)
1. Using a flat-blade screwdriver, gently
pry the lens cover from lamp housing.
2. Remove the bulb by pulling it straight
out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the
lamp housing notches and snap the
lens into place.
Be careful not to dirty or damage the
lens, lens tab, and plastic housings.
