1 Product description
1.1 Technical description

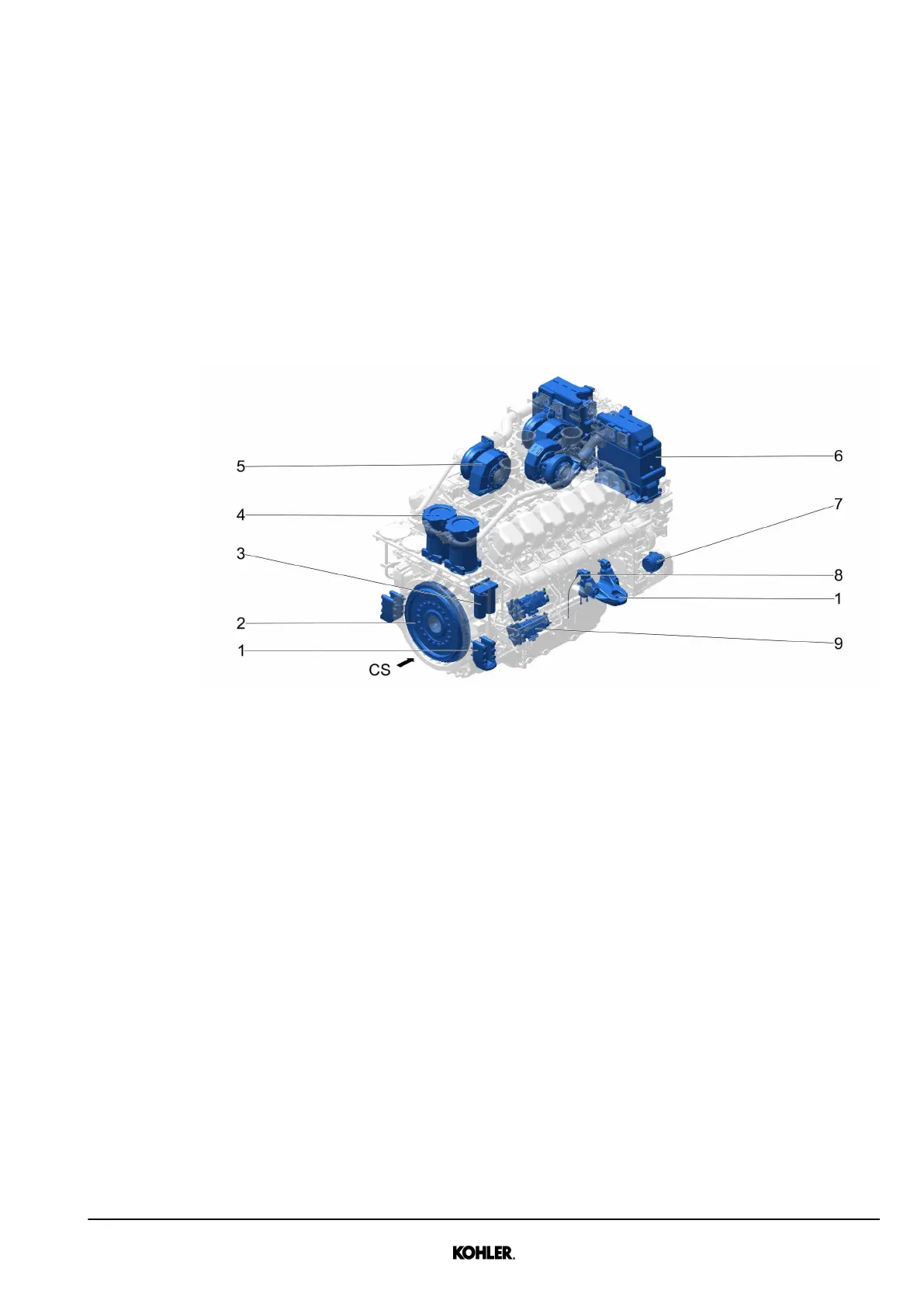

Fig. 1: Diesel engine / view from the flywheel side
CS Coupling side (flywheel side) 5 Exhaust gas turbocharger assembly
1 Engine brackets 6 Charge air cooler
2 Flywheel 7 Battery charging alternator
3 Fuel filter 8 Oil dipstick
4 Crankcase breather system filter housing 9 High-pressure fuel pump
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
17
