Service and Repair Manual Product description
Technical description
1.1.1 Cylinder designation, direction of rotation
Principle according to ISO 1204
Cylinder 1 is located on flywheel side. Direction of rotation as shown on the flywheel side.

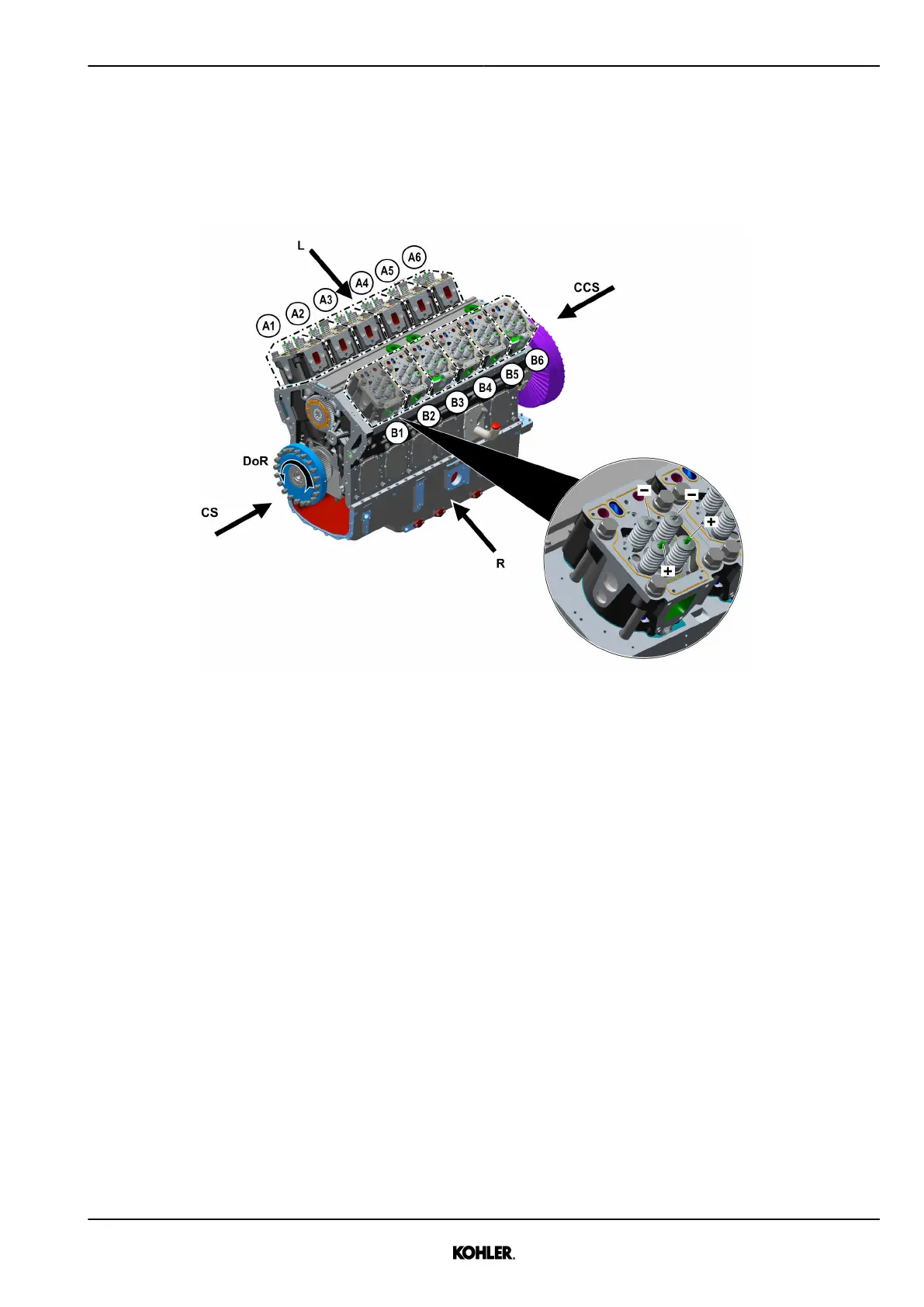

Fig. 4: Cylinder designation - direction of rotation according to ISO 1204
A1-A6 Series of cylinders – Bank A - Exhaust valves
B1-B6 Series of cylinders – Bank B + Inlet valves
CS Engine rear (flywheel side) L Left engine side
CCS Engine front (damper side) R Right engine side
DoR Direction of rotation
Firing order
Cylinder B6 is located on the engine right opposite the flywheel side.
The rotational direction is on the left-hand side as viewed towards the flywheel.
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
