Standard tightening torques

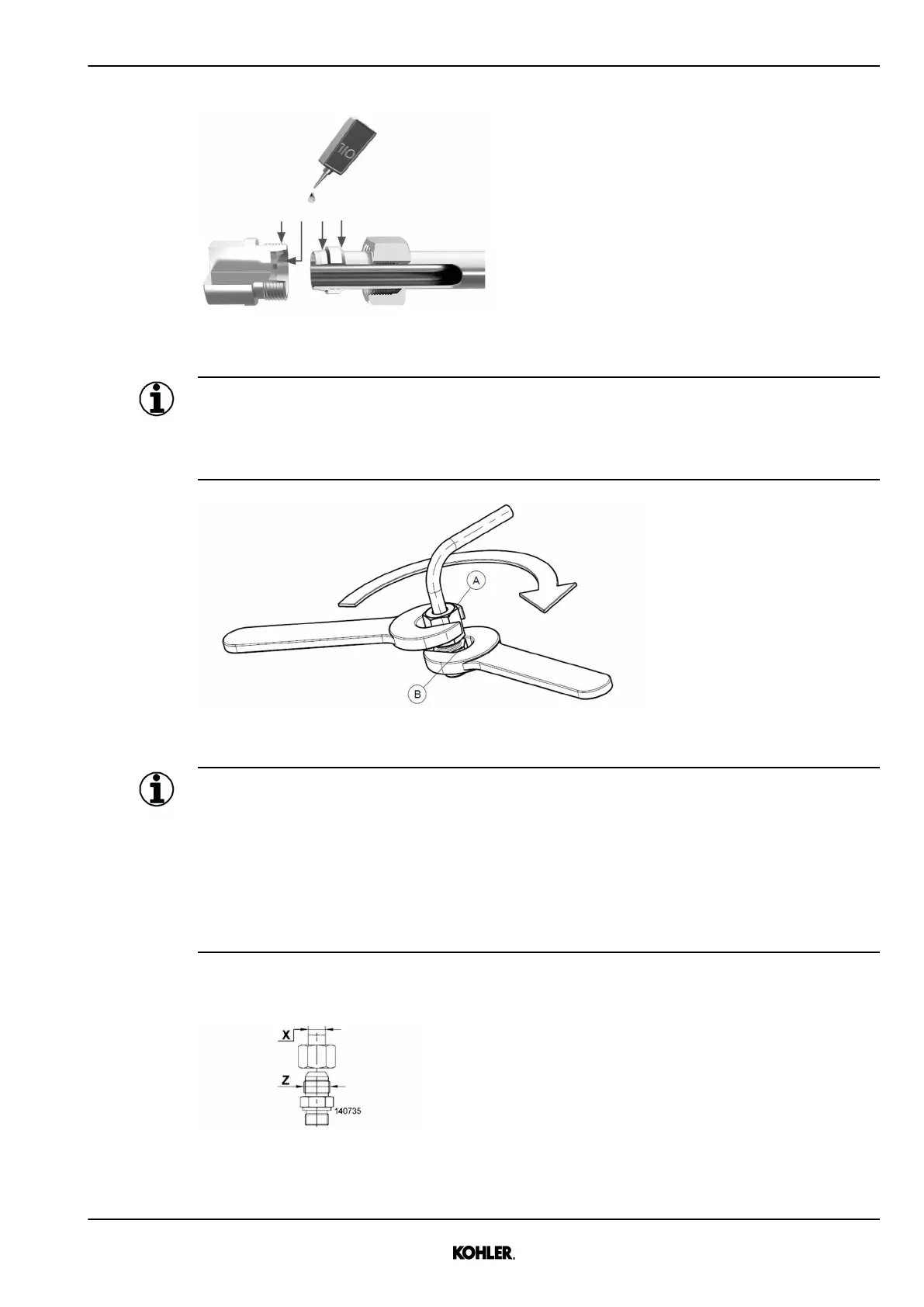

Fig. 103: Cutting ring lubrication
Information
To assemble pipes with cutting rings, proceed like following:
u Assemble pipe tension free. Mount support clamp after pipe assembling.
u Lubricate the surfaces of the connection, with engine oil. (see: fig. 103, page 169) .
Fig. 104: Cutting ring tightening
Information
u Screw in the nut of the cutting ring nut by hand.
u Hold the wrench as close as possible near to the nut.
u Tighten with a wrench until reaching the resisting point.
u Tighten by 90° maximal. While screwing nut A, preclude connector B to rotate. (see: fig. 104,
page 169) .
u If foreseen, proceed with the mounting of support clamps.
8.4.11 Standard torques for triple lock flange joints
Fig. 105: Triple lock flange joints
KD83V16 33521030601_0_1 EN_US
2018-07
© 2018 by Kohler Co. All rights reserved.
169
