Operation and Maintenance Manual Product description
Technical description
1.1.2 Cylinder designation, direction of rotation
Principle according to ISO 1204
Cylinder 1 is located on flywheel side. Direction of rotation as shown on the flywheel side.

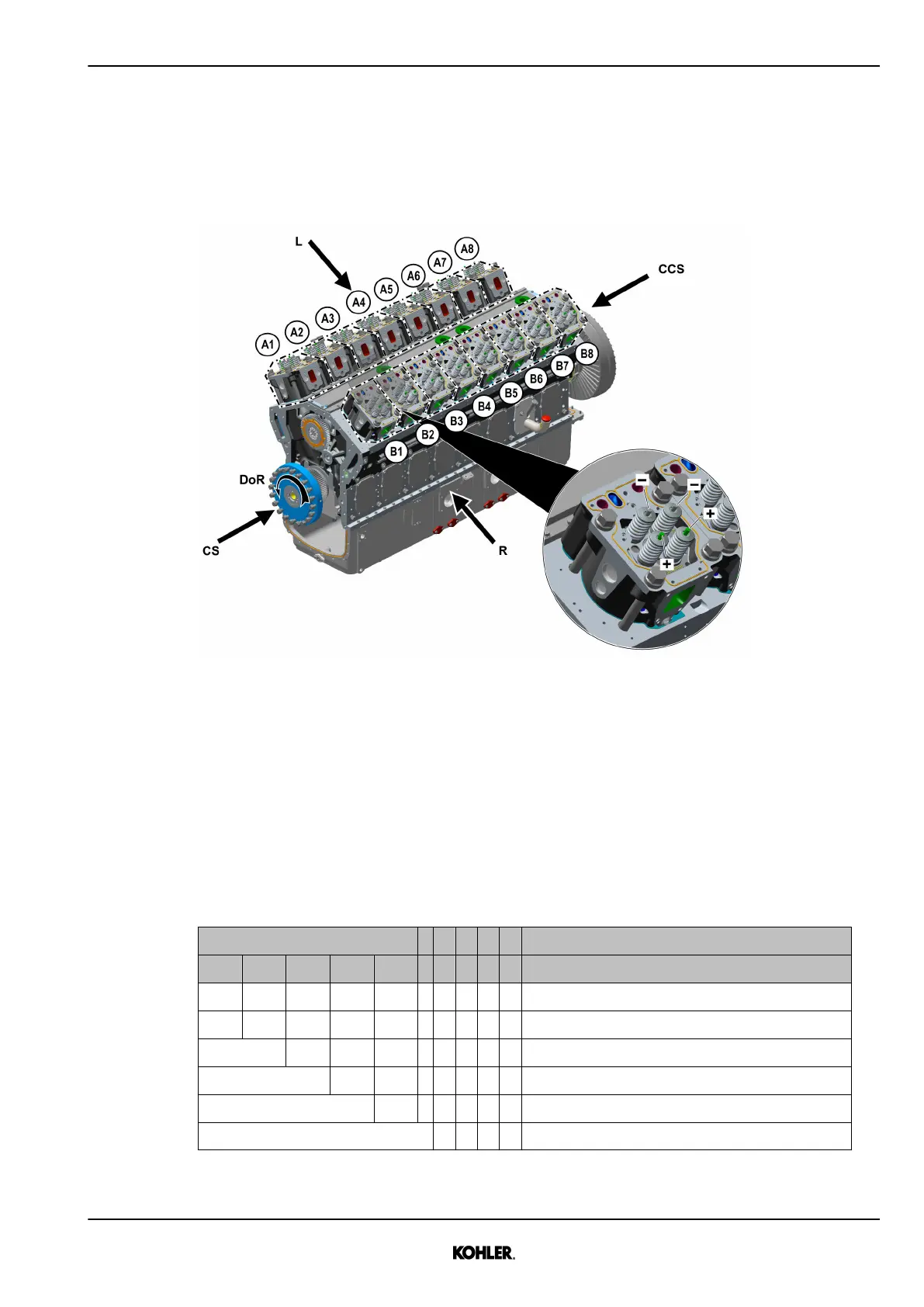

Fig. 5: Cylinder designation - direction of rotation according to ISO 1204
A1-A8 Series of cylinders – Bank A - Exhaust valves
B1-B8 Series of cylinders – Bank B + Inlet valves
CS Engine rear (coupling/flywheel side) L Left engine side
CCS Engine front (counter-coupling/damper
side)
R Right engine side
DoR Direction of rotation
1.1.3 Nameplates
Type designation
Designation Description
K D 83 V 16 - 5 A F C Engine type description
K Engine manufacturer
D Fuel type (D=Diesel)
83 Total displacement in liter
V Cylinder configuration
16 Number of cylinders
5 Frequency. 5=50Hz; 6=60Hz
KD83V16 33521030601_0_1 EN_US
2018-07
© 2018 by Kohler Co. All rights reserved.
23
