Kohler KD83V16 User Manual

1 Product description
1.1 Technical description
1.1.1 Design overview

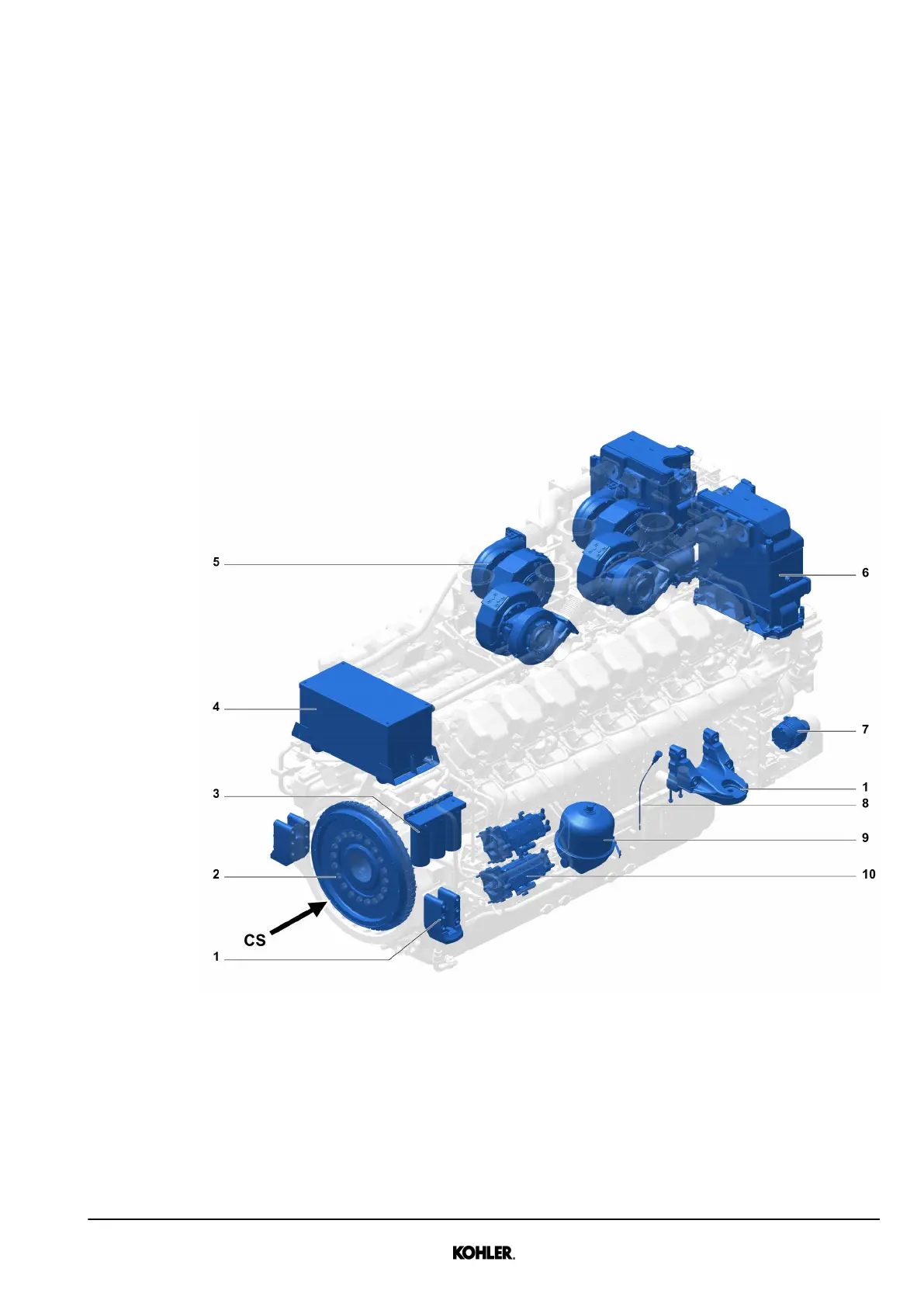

Fig. 1: Diesel engine / view from the flywheel side
CS Engine rear (flywheel side) 6 Charge air cooler
1 Engine brackets (x4) 7 Battery charging alternator
2 Flywheel 8 Oil dipstick
3 Fuel filter 9 Oil centrifuge assembly
4 Crankcase ventilation filter housing 10 High pressure fuel pump (x2)
5 Turbocharger assembly (x4)
KD83V16 33521030601_0_1 EN_US
2018-07
© 2018 by Kohler Co. All rights reserved.
17
