Maintenance Operation and Maintenance Manual
Daily or monthly maintenance activities
5.6.4 Checking drive belt — SL109

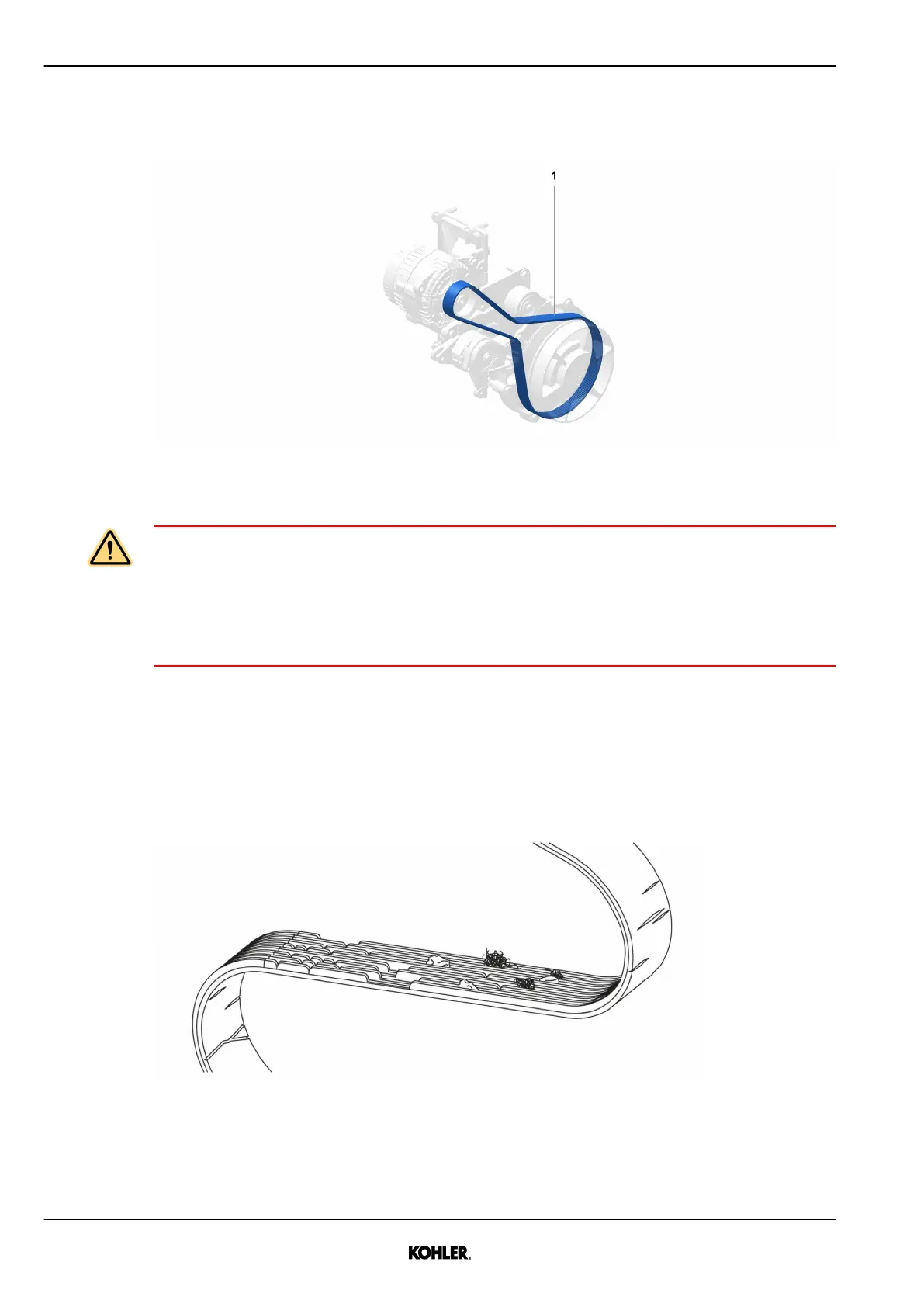

Fig. 51: Drive belt alternator
1 V-ribbed belt
WARNING
Crushing hazards! During the assembly of auxiliaries, fingers can be crushed between tensioner
and bracket.
Could cause serious injury or death.
u Wear proper personal protective equipment.
u Use assembly and lifting devices.
Damage to the V-ribbed belt are:
– Rip breaks
– Rubber nodules in the belt base
– Deposits of dirt and / or stones
– Ribs detached from belt base
– Traverse cracks on the back
– Traverse cracks in several ribs
Fig. 52: Damage to the V-ribbed belt
The belt attachment is self-tensioning and maintenance-free.
The belt drive is located at the engine damper side.
96
© 2018 by Kohler Co. All rights reserved.
KD83V16 33521030601_0_1 EN_US
2018-07
