140-3 SERIES
11-95
STRUCTURE AND FUNCTION, MAINTENANCE STANDARD AIR COMPRESSOR

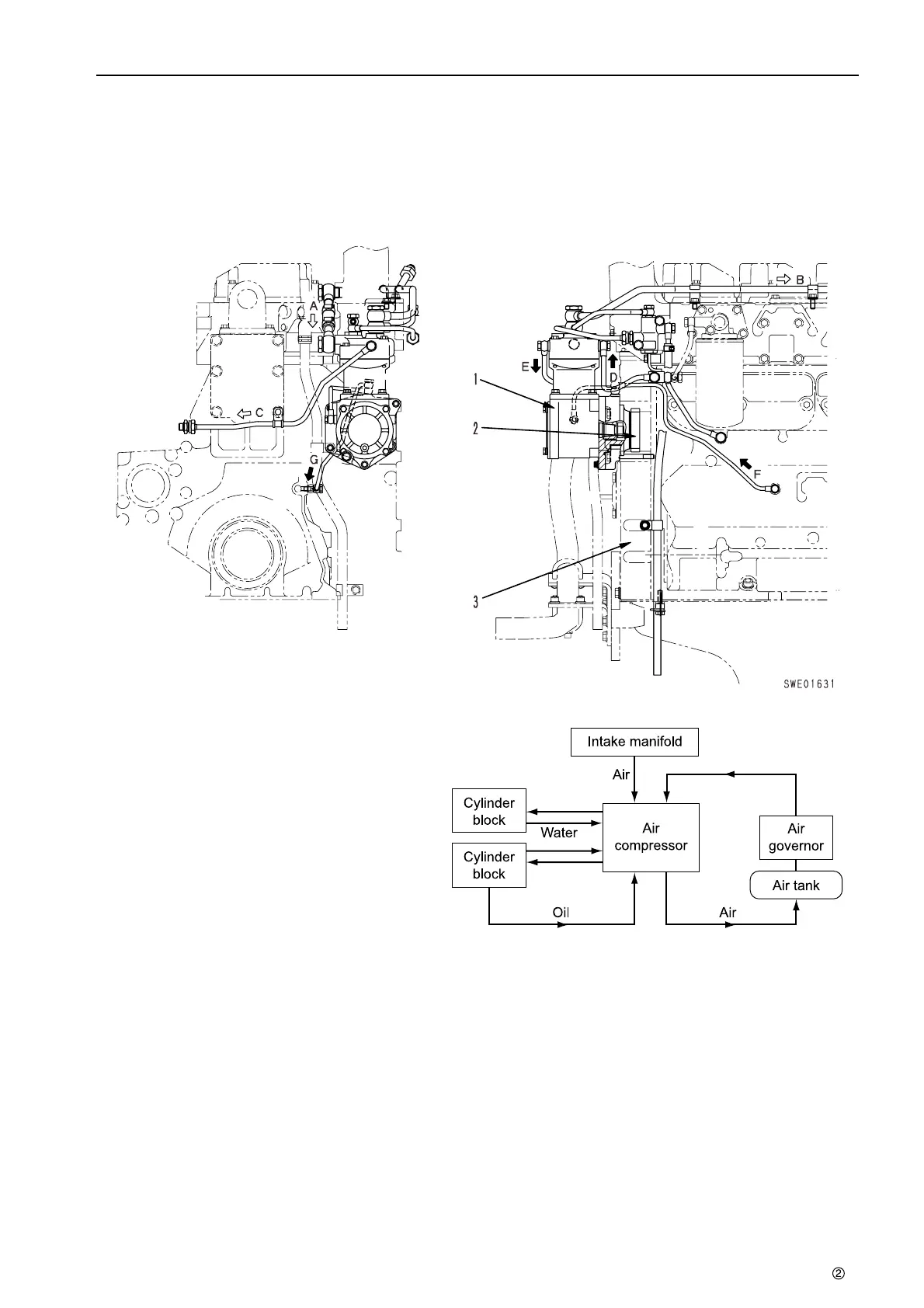

AIR COMPRESSOR
MOUNT
SAA6D140E-3 (HD325-6, PC1800-6 Front engine)
★ The shape may differ according to the machine
model.
1.
Air compressor
2.
Air compressor drive gear (No. of teeth: 24)
3.
PTO case
A.
From intake manifold (air)
B.
Discharge port (air)
C.
Unloaded from air governor (air)
D.
From cylinder block (cooling water)
E.
To cylinder block (cooling water)
F.
From cylinder block (oil inlet)
G.
To cylinder block (oil outlet)
