11-22
140-3 SERIES

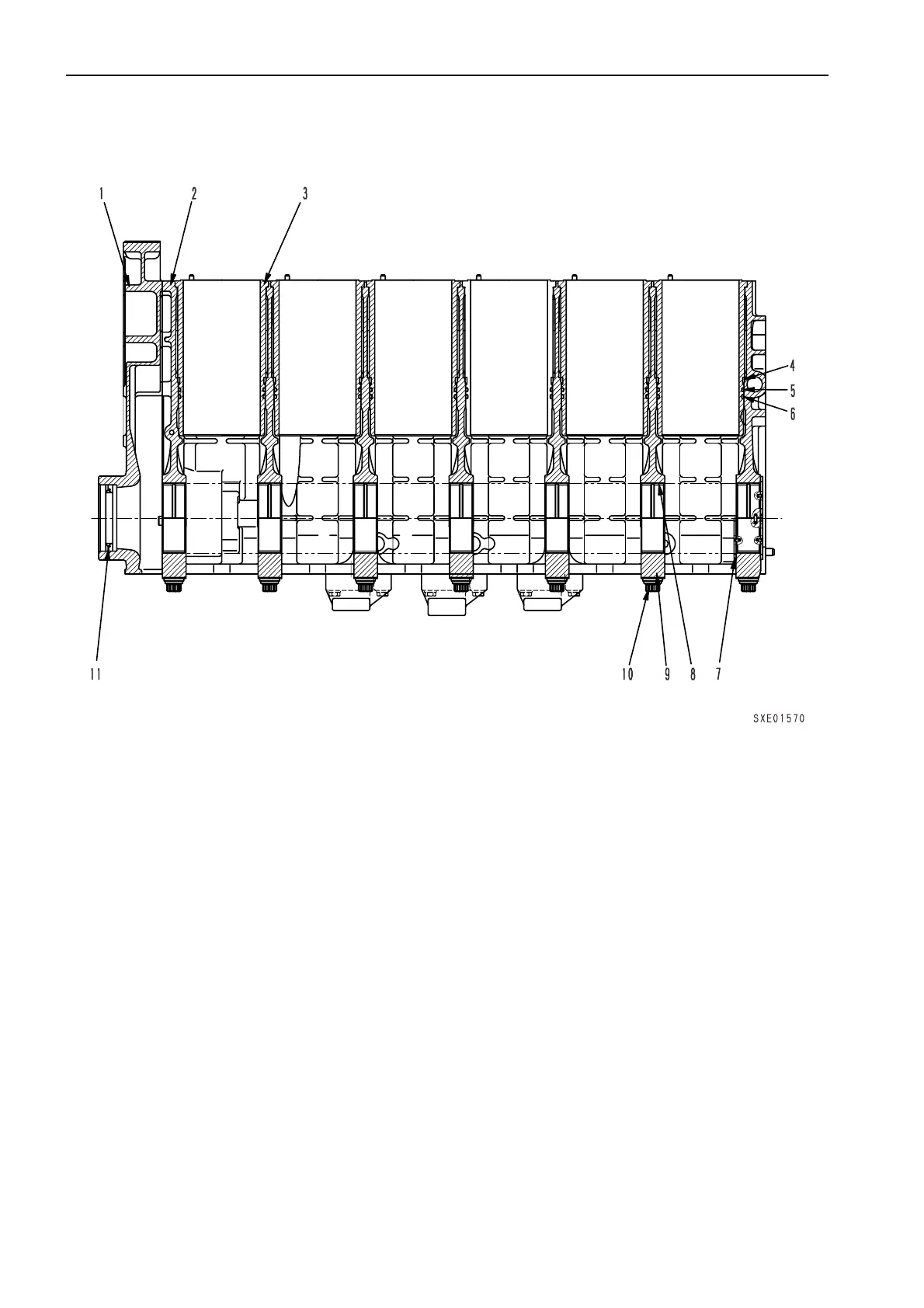

STRUCTURE AND FUNCTION, MAINTENANCE STANDARD CYLINDER BLOCK
CYLINDER BLOCK
1.
Front cover
8.
Main bearing
2.
Cylinder block
9.
Main bearing cap
3.
Cylinder liner
10.
Main bearing cap bolt
4.
Clevis seal
11.
Front oil seal
5.
Liner O-ring
12.
Piston cooling nozzle (front end)
6.
Liner O-ring
13.
Piston cooling nozzle (rear end)
7.
Thrust bearing
