11-106
140-3 SERIES
STRUCTURE AND FUNCTION, MAINTENANCE STANDARD STARTING MOTOR
6

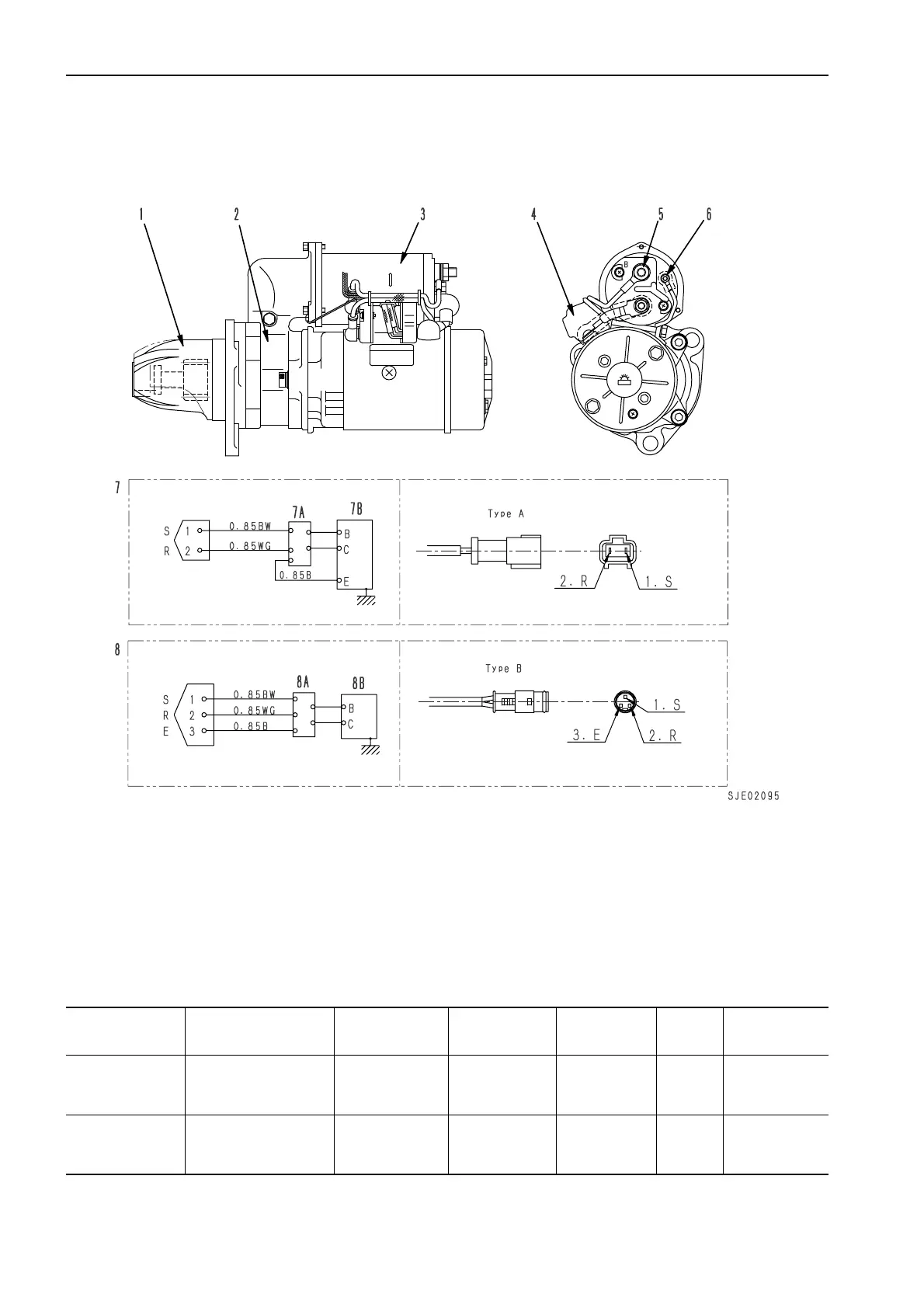

STARTING MOTOR
For 7.5 kW
★ The shape may differ according to the machine
model.
1. Pinion gear 8. External wiring diagram (3-pin connector type)
2. Starting motor assembly 8A. Safety relay portion
3. Magnetic switch 8B. Starting motor portion
4. Safety relay
5. Terminal B S. To starting switch terminal C
6. Terminal C R. To alternator terminal R
7. External wiring diagram (2-pin connector type) E. To ground
7A. Safety relay portion
7B. Starting motor portion
Engine Machine model Type Specification
No. of
pinion teeth
Weight
(kg)
Connector
type
SA6D140E-3
DCA400SSK
(Denyo generator)
Nikko Denki
Waterproof,
oilproof type
24V, 7.5kW 12 18 A
SAA6D140E-3
Nikko Denki
Waterproof,
oilproof type
24V, 7.5kW 12 18
To Next Page
