MAINTENANCE
SERVICE PROCEDURE
MAINTENANCE
SERVICE PROCEDURE

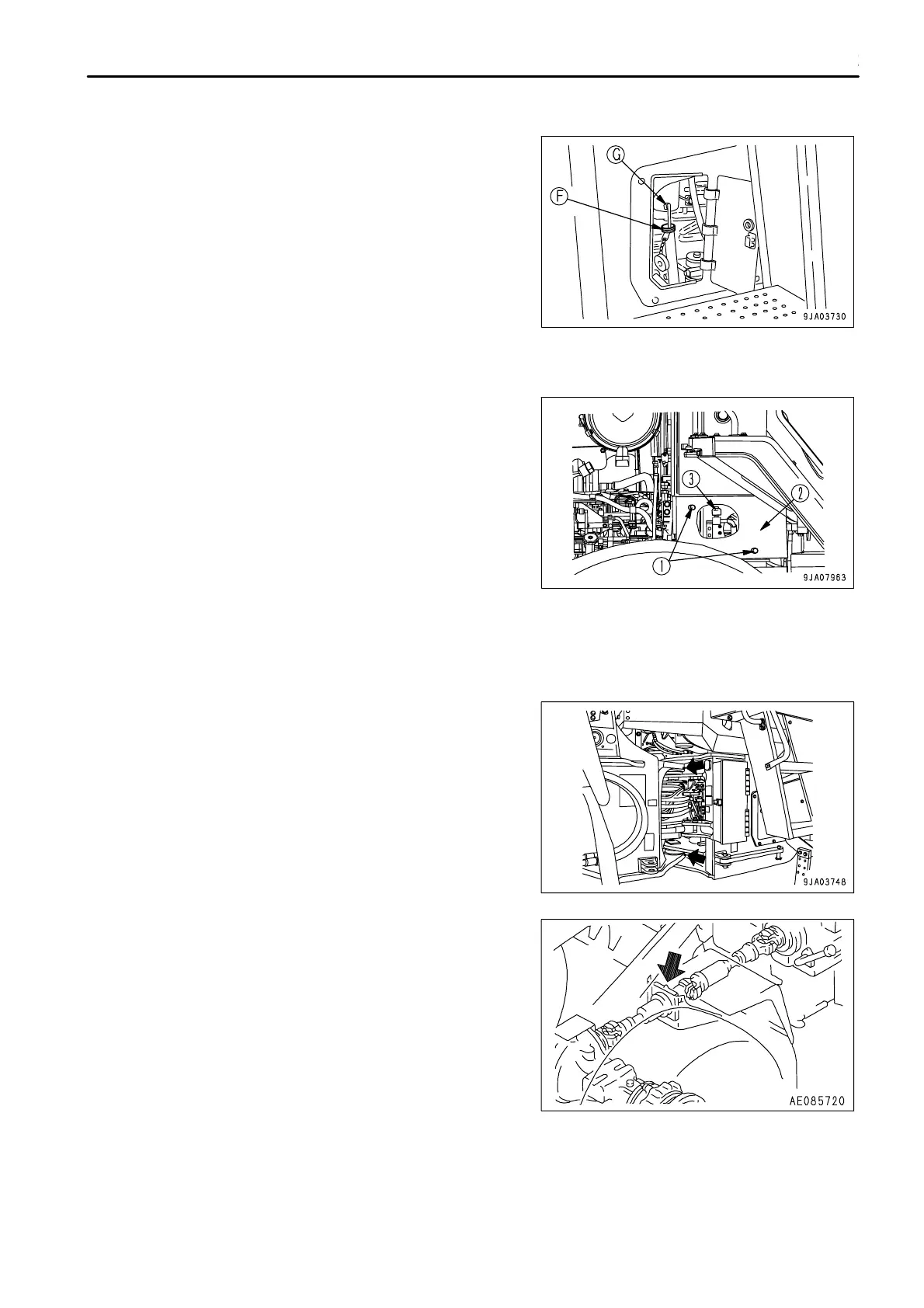

11. Refill the specified quantity of oil through oil filler (F).
12.
After filling with oil, check that the oil is at the specified level.
For details, see "CHECK TRANSMISSION OIL LEVEL, ADD
OIL (PAGE 4-24)".
13.
Check that there is no leakage of oil from the transmission
case or oil filter.
CLEAN TRANSMISSION CASE BREATHER
1. Loosen bolt (1) and remove cover (2).
2.
Remove all dirt and mud from around the breather, then
remove breather (3), soak it in flushing fluid, and wash it.
After removing the breather, take steps to prevent dirt or dust
from entering the mount.
LUBRICATING
1. Using a grease pump, pump in grease through the grease fittings marked by the arrows.
2.
After greasing, wipe off any old grease that was pushed out.
(1) Center hinge pin (2 places)
(2) Drive shaft center support (1 place)
4 - 55
