ATTACHMENTS, OPTIONS
HANDLING JOYSTICK STEERING SYSTEM
ATTACHMENTS, OPTIONS
HANDLING JOYSTICK STEERING SYSTEM

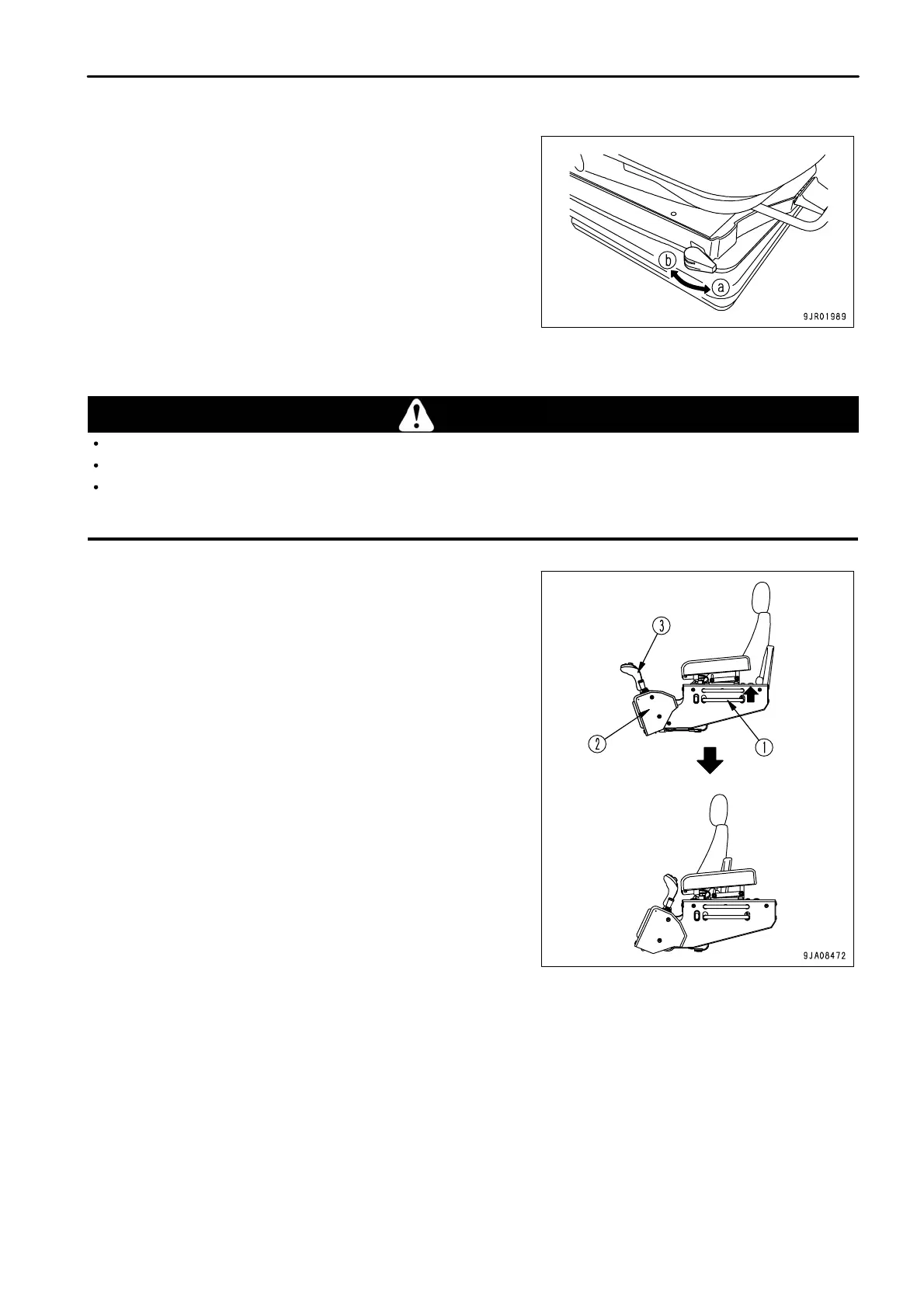

(K) Adjusting hardness of suspension damper
Operate knob (7) to adjust the strength of the suspension damper.
Turn knob (7) towards the front of the seat (a) to make the damping
force harder; turn it towards the rear of the seat (b) to make the
damping force softer.
Amount of adjustment: 5 stages
ADJUSTMENT OF JOYSTICK CONSOLE
WARNING
Stop the machine on level ground in a safe place when carrying out the adjustment.
Carry out the adjustment before starting operations or when changing operator shifts.
Put your back against the backrest of the operator's seat and adjust the seat so that it is possible to depress the brake fully,
then adjust the console.
Grip console fore-and-aft adjustment lever (1) and adjust the
position of the joystick console to the front or rear.
If you grip the console fore-and-aft adjustment lever (1), lever
portion (2) of the joystick console automatically tilts to the rear.
Maximum slide to rear when getting on or off: 220 mm (8.7 in)
Fore-and-aft adjustment when operating joystick: 160 mm (6.3 in)
(16 mm (0.6 in) x 10 stages)
When using the joystick, adjust the fore-and-aft position, then push
console tilt lever (3) to the front and tilt lever portion (2) fully from
the rear to the front.
After doing this, set the joystick ON/OFF switch to the ON position.
6 - 15
