Komatsu WA380-6 Service Manual

.
OPERATION
GENERAL VIEW

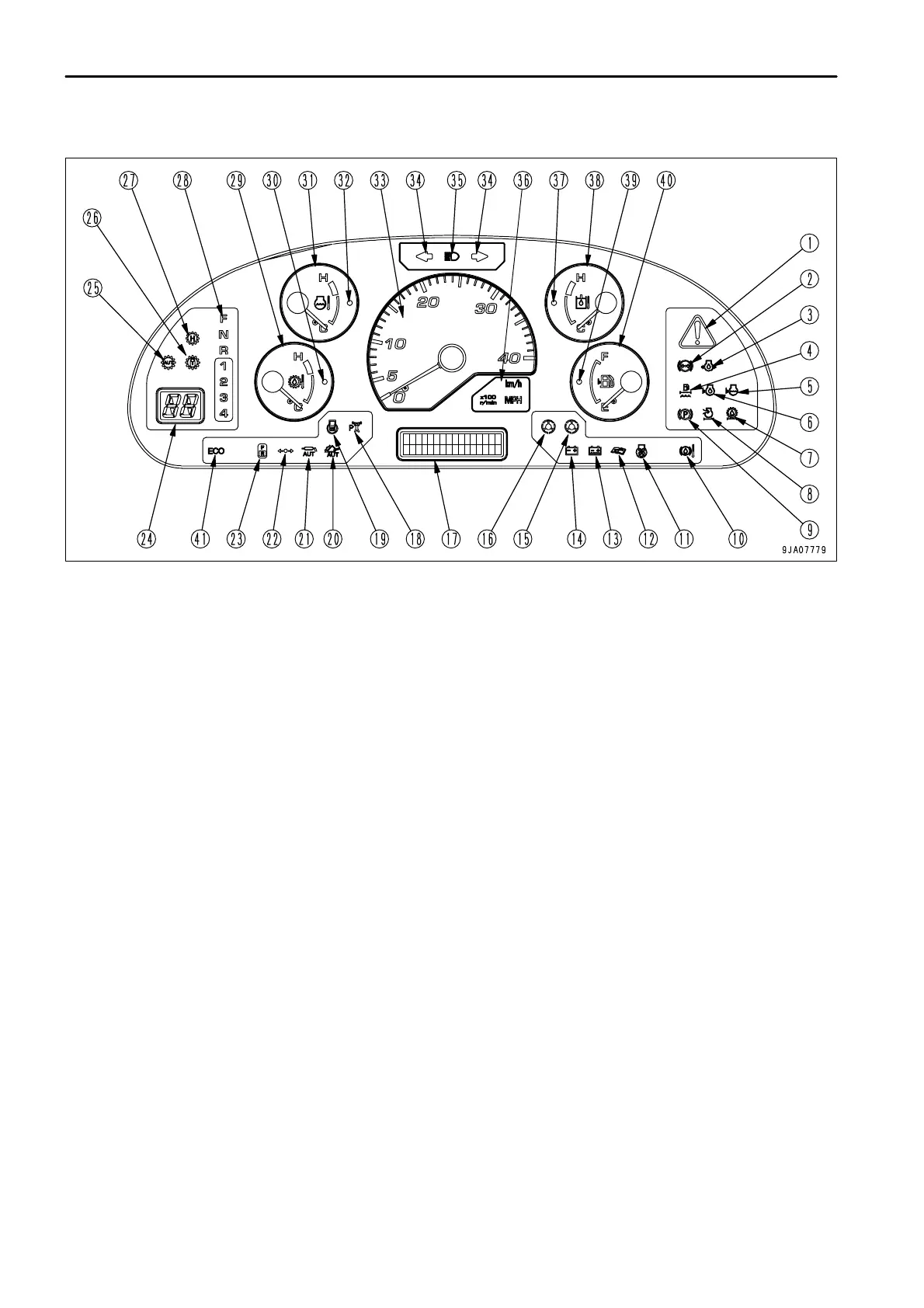

MACHINE MONITOR
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
Central warning lamp
Brake oil pressure caution lamp
Enigine oil pressure caution lamp
Water separtor caution lamp
Radiator coolant level caution lamp
Engine oil level caution lamp
Transmission oil filter clogging caution lamp
Air cleaner clogging caution lamp
(Machines equipped with KOMTRAX)
Parking brake pilot lamp
Brake oil temperature caution lamp
Cooling fan reverse rotation pilot lamp
Maintenance caution lamp
Battery electrolyte level caution lamp
(if equipped)
Battery charge circuit caution lamp
Steering oil pressure caution lamp (if equipped)
Emergency steering pilot lamp (if equipped)
Character display portion
Power mode pilot lamp (P mode)
Preheating pilot lamp
Semi auto digging pilot lamp (if equipped)
(21)
(22)
(23)
(24)
(25)
(26)
(27)
(28)
(29)
(30)
(31)
(32)
(33)
(34)
(35)
(36)
(37)
(38)
(39)
(40)
(41)
Auto-greasing pilot lamp (if equipped)
Joystick pilot lamp (if equipped)
Directional selector pilot lamp
Shift indicator
Auto-shift pilot lamp
Torque converter lockup pilot lamp (if equipped)
Shift hold pilot lamp
Shift lever position pilot lamp
Torque converter oil temperature gauge
Torque converter oil temperature caution lamp
Engine coolant temperature gauge
Engine coolant temperature caution lamp
Speedometer
Turn signal pilot lamp
Head lamp high beam pilot lamp
Meter display pilot lamp
Hydraulic oil temperature caution lamp
Hydraulic oil temperature gauge
Fuel level caution lamp
Fuel gauge
Economy operation display lamp
3 - 4

Komatsu WA380-6 Specifications

General

Brand	Komatsu
Model	WA380-6
Category	Compact Loader
Language	English
