11. EXPLANATION OF COMPONENTS
The following is an explanation of the devices needed for
operating the machine.
To carry out suitable operations correctly and safely, it is impor-
tant to understand fully the methods of operating the equipment and
the meanings of the displays.

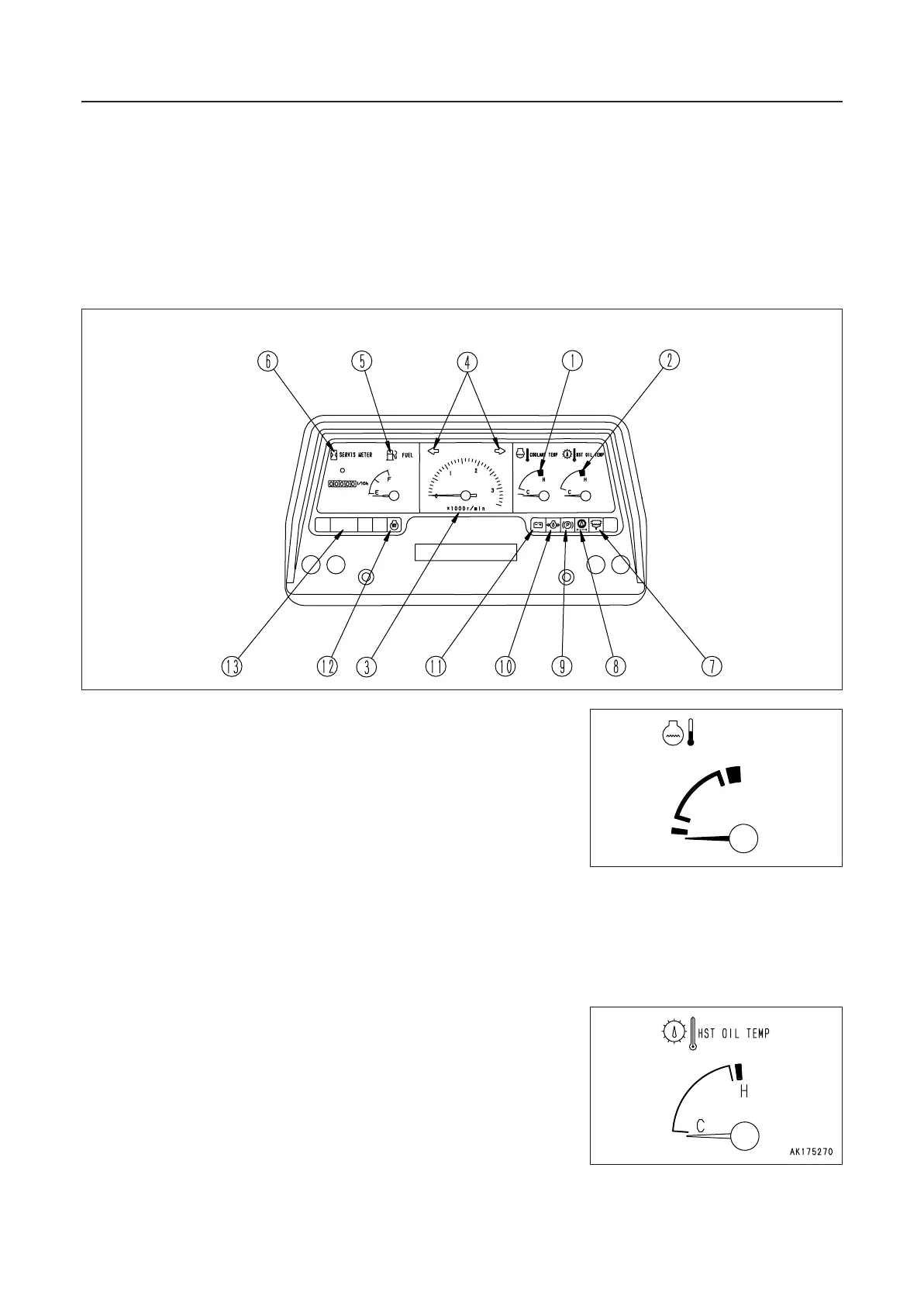

11.1 METER, LAMPS
1. ENGINE WATER TEMPERATURE GAUGE
This gauge indicates the engine cooling water temperature.
When the pointer of the temperature gauge shows the white
range, the oil temperature is normal.
When the pointer enters the red range, stop the machine imme-
diately, and run the engine with no load at midrange speed until the
oil temperature drops to the normal value.
NOTICE
If the engine water temperature gauge enters the red range
frequently, check and clean the radiator fins.
2. HST OIL TEMPERATURE GAUGE
This gauge indicates HST oil temperature.
When the pointer of the gauge shows the white range, the oil is
normal.
When the pointer enters the red range, stop the machine imme-
diately, and run the engine with no load at midrange speed until the
oil temperature drops to the normal value.
AL175252
AE070270
C
H
COOLANT TEMP
