2-14
11. EXPLANATION OF COMPONENTS 11. EXPLANATION OF COMPONENTS

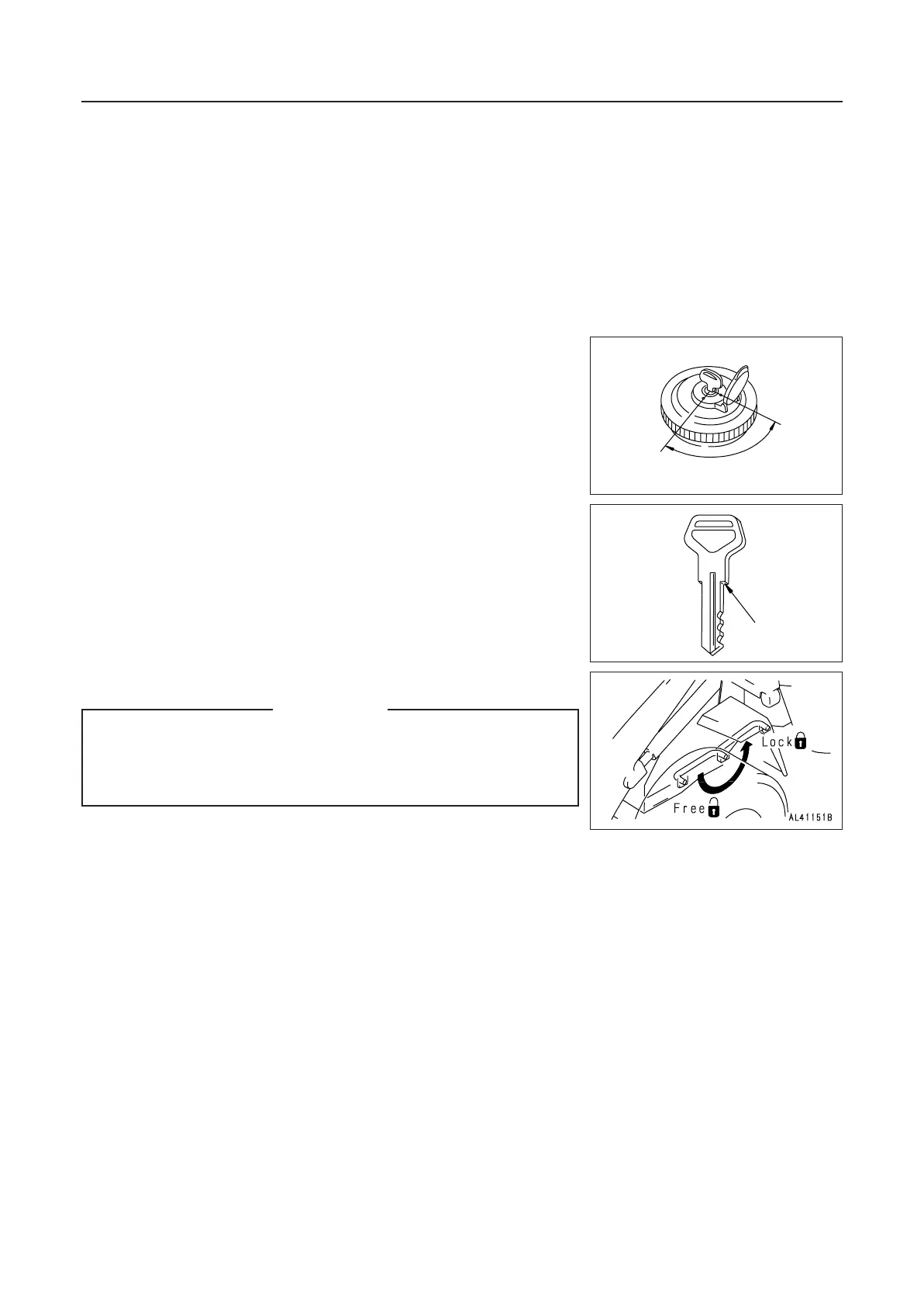

11.4 CAP WITH LOCK
The fuel tank filler port is equipped with locks.
Open and close the cap lock as follows.
Use the starting key to open and close the cap.
11.4.1 METHOD OF OPENING AND CLOSING CAP WITH
LOCK
TO OPEN THE CAP
1. Insert the key into the cap.
Insert the key as far as it will go. If the key is turned before it is
inserted all the way, it may break.
2. Turn the key clockwise, align the match mark on the cap with the
rotor groove, then remove the cap.
TO LOCK THE CAP
1. Turn the cap into place.
2. Turn the key counterclockwise and take the key out.
11.5 SAFETY BAR
WARNING
‡ Always use the safety bar for maintenance or when trans-
porting the machine.
‡ Always remove the safety bar during normal travel opera-
tions.
The safety bar is used during maintenance or when transporting
the machine. It locks the front frame and rear frame, and prevents
the front and rear frames from bending.
AE061400
Lock
Open
AE061410
Shoulder
