2-56
13.4 PRECAUTIONS FOR TRANSPORTATION
WARNING
Determine the route for transporting the machine by taking into
account the width, height and weight of the machine.
Obey all state and local laws governing the weight, width and
length of a load. Observe all regulations governing wide loads.
13.5 REMOVING AND INSTALLATION OF
CANOPY
WARNING
Precautions for removal and installation
When removing or installing the canopy, observe the following
precautions and take steps to ensure safety during the opera-
tion.
‡ Carry out the removal and installation operation on hard level
ground.
‡ When carrying out the operation with two or more workers,
decide signals and always follow these signals during the
operation.
‡ Weight of parts: Pole 9 kg (18 lb) (each), roof 15 kg (30 lb)
‡ When removing parts, always check that the parts are prop-
erly supported before starting to remove.
‡ When parts have been removed or when they are to be
installed, set them in a stable position so that they will not
fall over.
‡ When installing the canopy, tighten the canopy mounting
bolts securely. If the bolts are loose, there is danger that the
canopy may fall off.

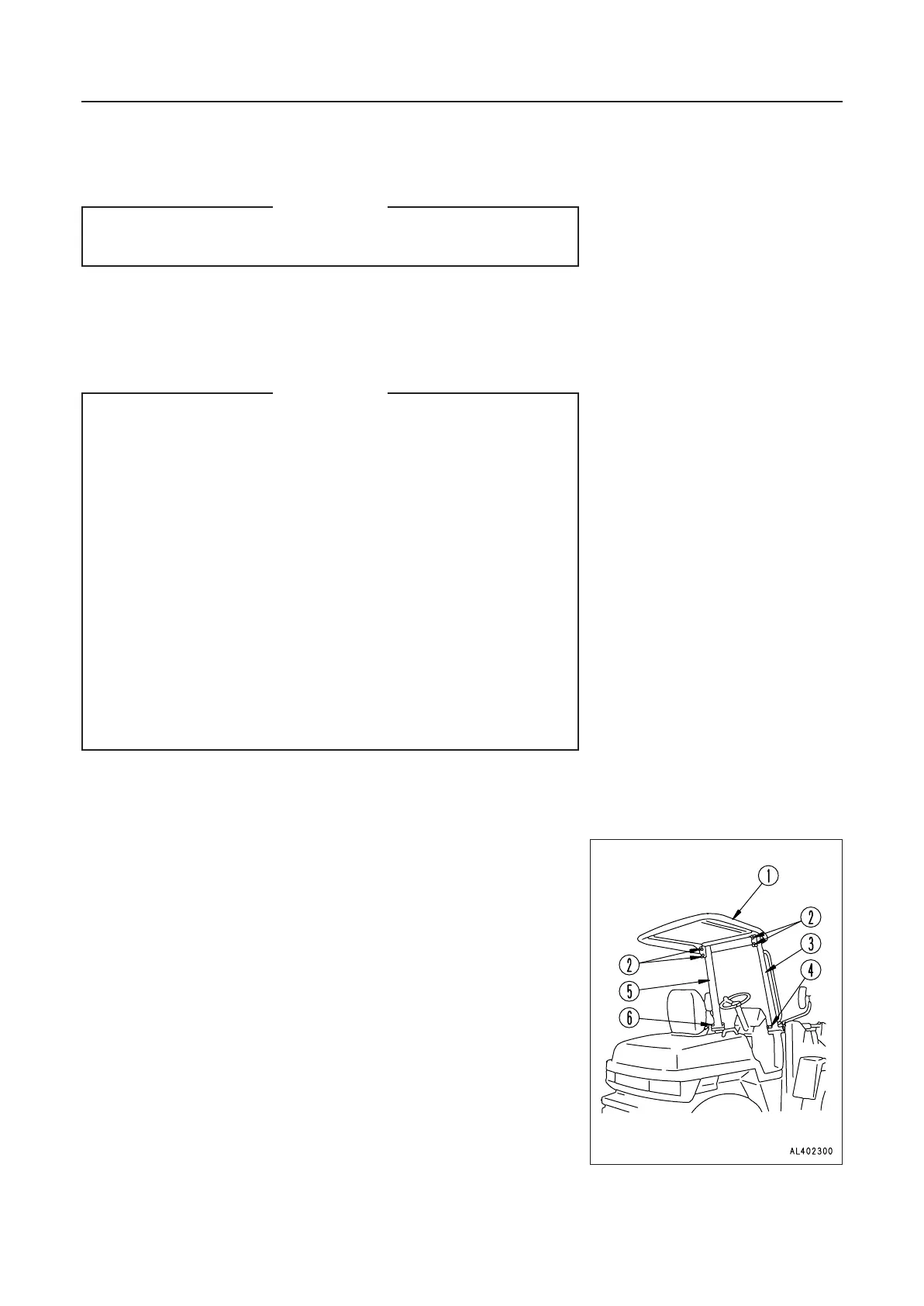

REMOVING
1 Support roof 1 to prevent it from tipping or falling.
2 Remove 4 roof mounting bolts 2, then remove roof 1.
Roof weight: 15 kg (30 lb)
3. Secure pole 3 so that it does not fall, then remove 4 pole
mounting bolts 4 and remove pole 3.
Pole weight: 9 kg (18 lb)
4. Remove pole 5 in the same way as pole 3.
13. TRANSPORTATION 13. TRANSPORTATION
