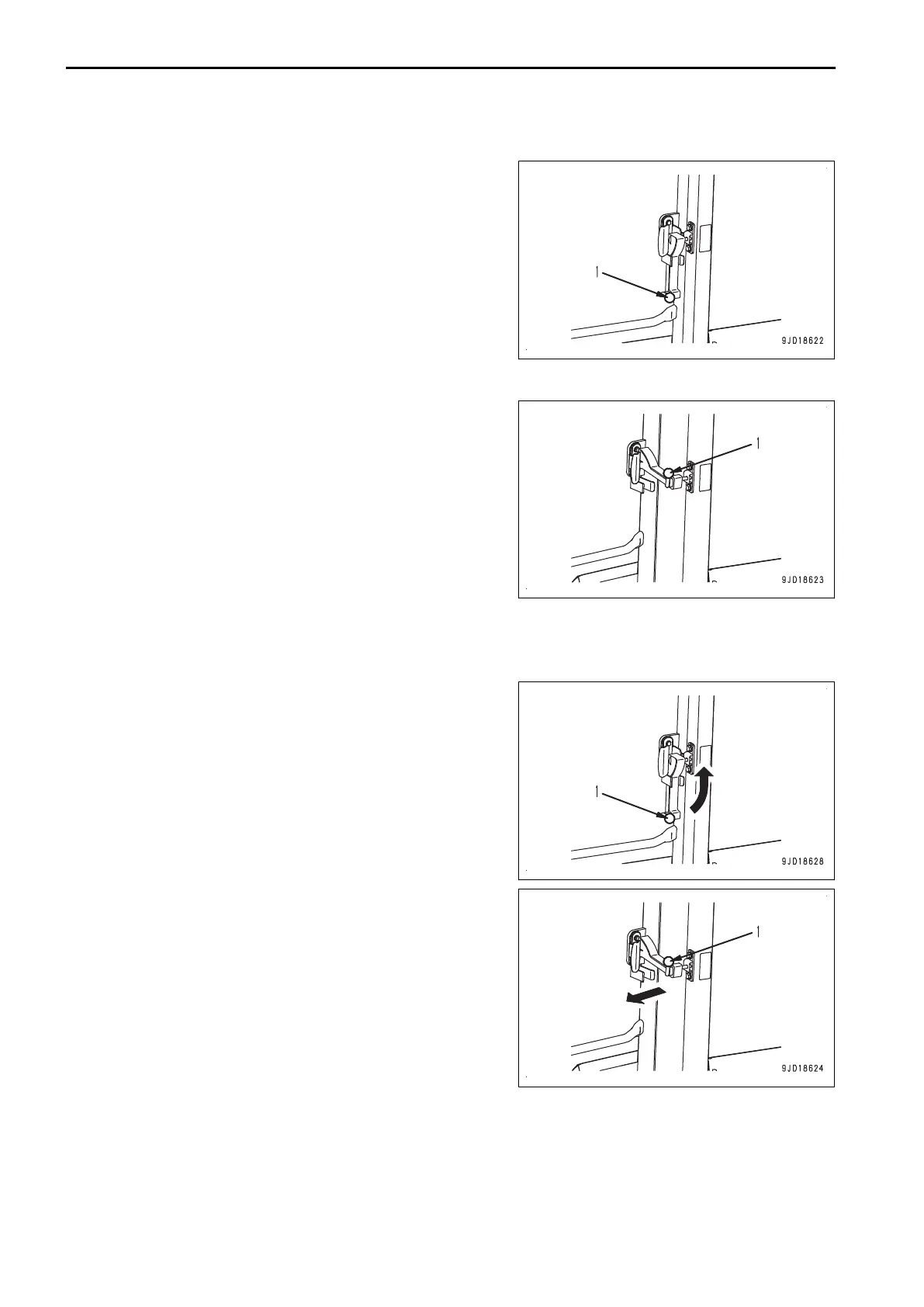

Alternate exit door completely closed and locked state
If the open knob (1) of the alternate exit of cab is completely
pushed down, it is completely closed and locked.
Normally, it must be completely closed and locked when oper-
ating the machine.
Alternate exit door partially open locked state
If the open knob (1) of the alternate exit of cab is pulled up, the
door is partially open locked.
When talking to a person in the right outside of the machine
during inspection and maintenance and such, keep the door
partially open locked with this function.
PROCEDURE FOR OPENING ALTERNATE EXIT OF CAB FOR EMERGENCY
If the door on the left side of the cab does not open or it is dangerous to get out the cab through the left side
door, get out through the alternate exit.
1.
Pull up the open knob (1) for alternate exit of cab.
2.
Pull the open knob (1) for alternate exit of cab backward.
EXPLANATION OF COMPONENTS OPERATION
3-130
