INTRODUCTION
MAIN USE OF MACHINE
This Komatsu machine is designed to be used mainly for the following work:
• Digging work
• Leveling work
• Dozing work
• Loading work
For details of the work procedure, see “RECOMMENDED APPLICATIONS (3-223)”.

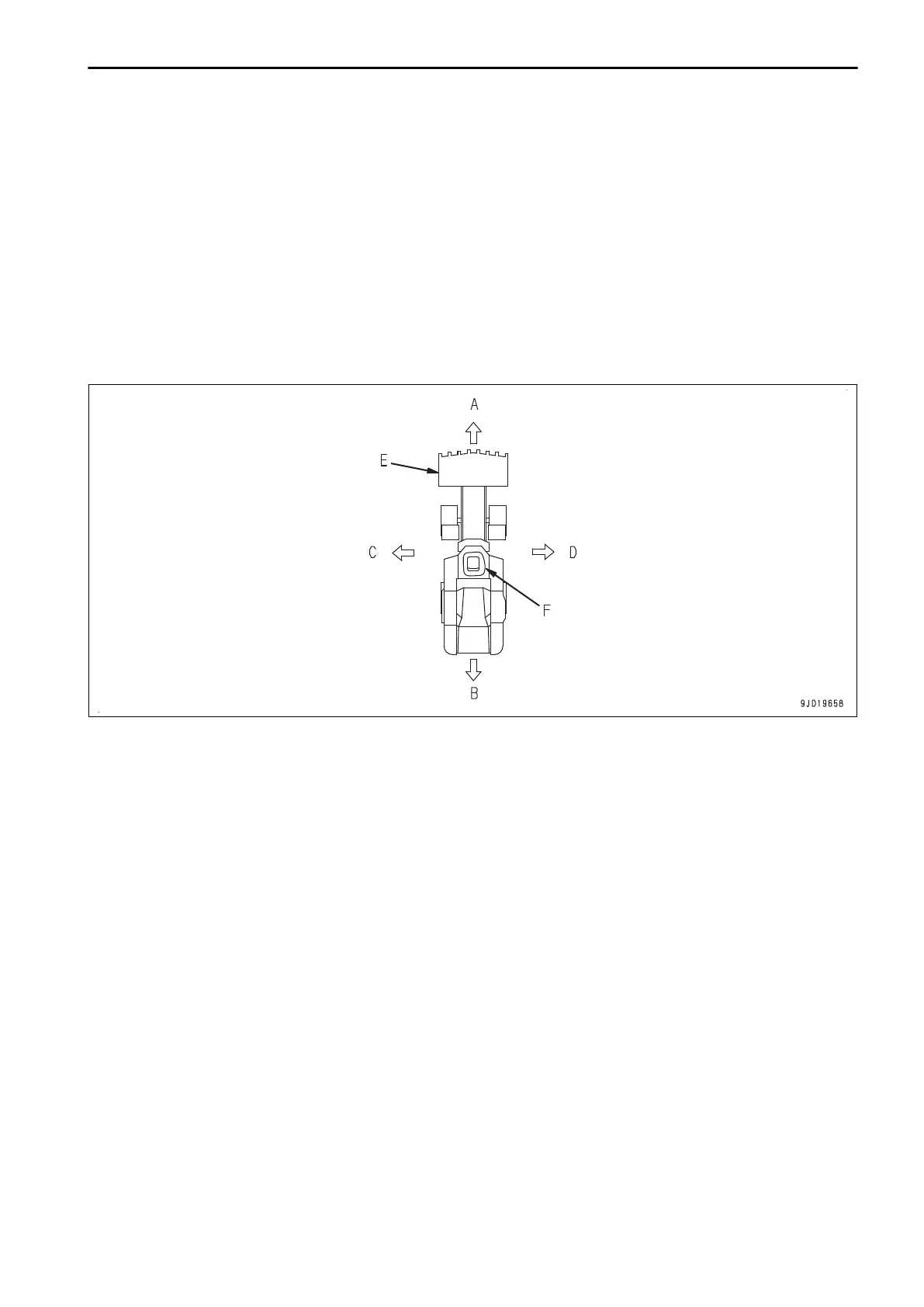

DIRECTIONS OF MACHINE
(A) Front
(B) Rear
(C) Left
(D) Right
(E) Bucket
(F) Operator's seat
In this manual, the directions of the machine (front, rear, left, right) are determined according to the view from
the operator's seat in the direction of travel (front) of the machine.
VISIBILITY FROM OPERATOR'S SEAT
The visibility of this machine required by visibility standards (ISO 5006) is shown as follows.
Proximity visibility
The figure below shows a visibility from the machine at a spot 1 m away from outside the machine and 1.5 m
above the ground.
Shaded area (A) in the figure shows an area whose view is blocked by a part of the machine when the machine
is equipped with the mirrors, rearview camera, and other visibility assistant devices.
Be fully aware that there is an area where the operator cannot see when operating the machine.
