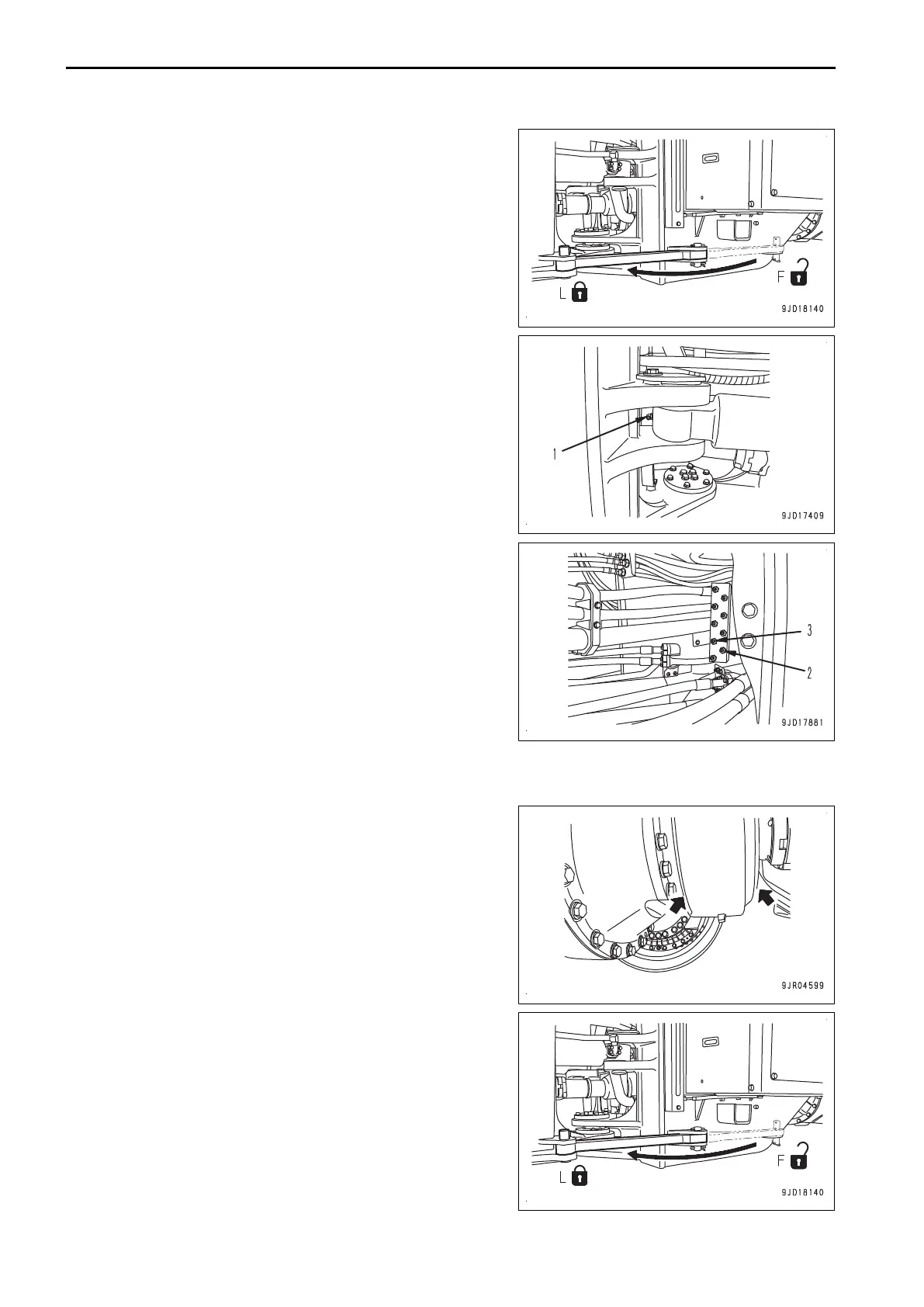

1.
Set the frame lock bar to LOCK position (L).
2.
By using a grease pump, pump in grease through the
grease fitting shown by arrow.
3.
After greasing, wipe off any old grease that is pushed out.
(1) Steering cylinder bottom end (2 places)
(2) Steering cylinder rod end (right)
(3) Steering cylinder rod end (left)
METHOD FOR LUBRICATING REAR AXLE PIVOT PIN
(3 places)
NOTICE
Apply grease until the grease comes out both side of the
axle support.
1.
Set the frame lock bar to LOCK position (L).
MAINTENANCE PROCEDURE MAINTENANCE
4-46
