1.
Set the bottom of bucket to be level, and lower the work
equipment to the ground.
2.
Set the parking brake switch to ON position (operate).
3.
Stop the engine.
Wait for the temperature of each part to drop.
4.

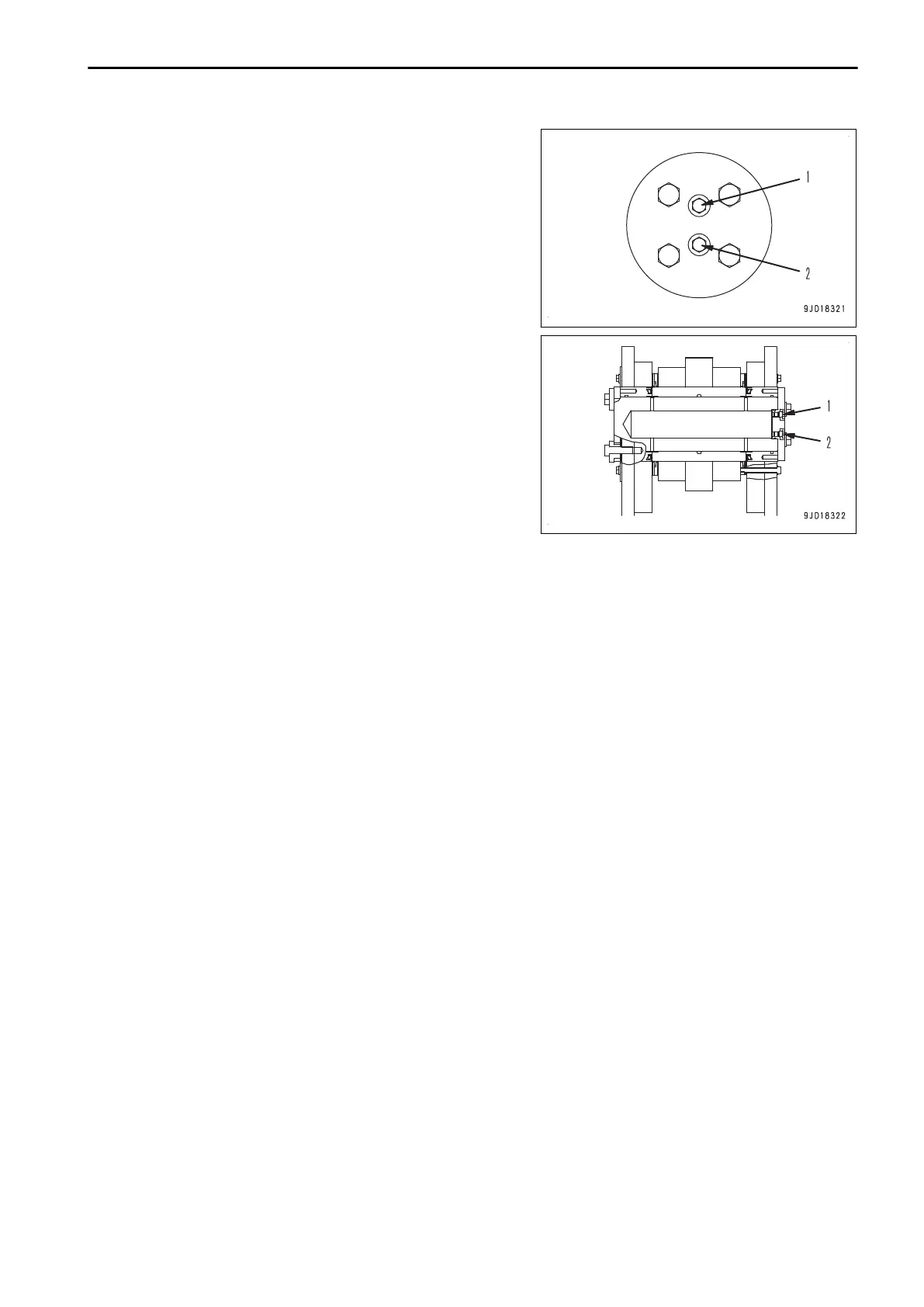

Place a container under the upper plug (1) of the work
equipment pin to catch the drained oil.
5.
Loosen upper plug (1) slowly, check that the oil does not
spurt out, and then remove the plug.
6.
Remove lower plug (2) and drain the oil.
7.
After draining the oil, install lower plug (2).
8.
Fill the oil through the hole for upper plug (1) until oil flows
out.
9.
Install upper plug (1).
MAINTENANCE MAINTENANCE PROCEDURE
4-77
