bizhub PRO C6500 / bizhub PRO C6500e 4-45

4.7 Disposing trimmings

When the waste basket of the saddle stitcher SD-501 becomes full, the Trim

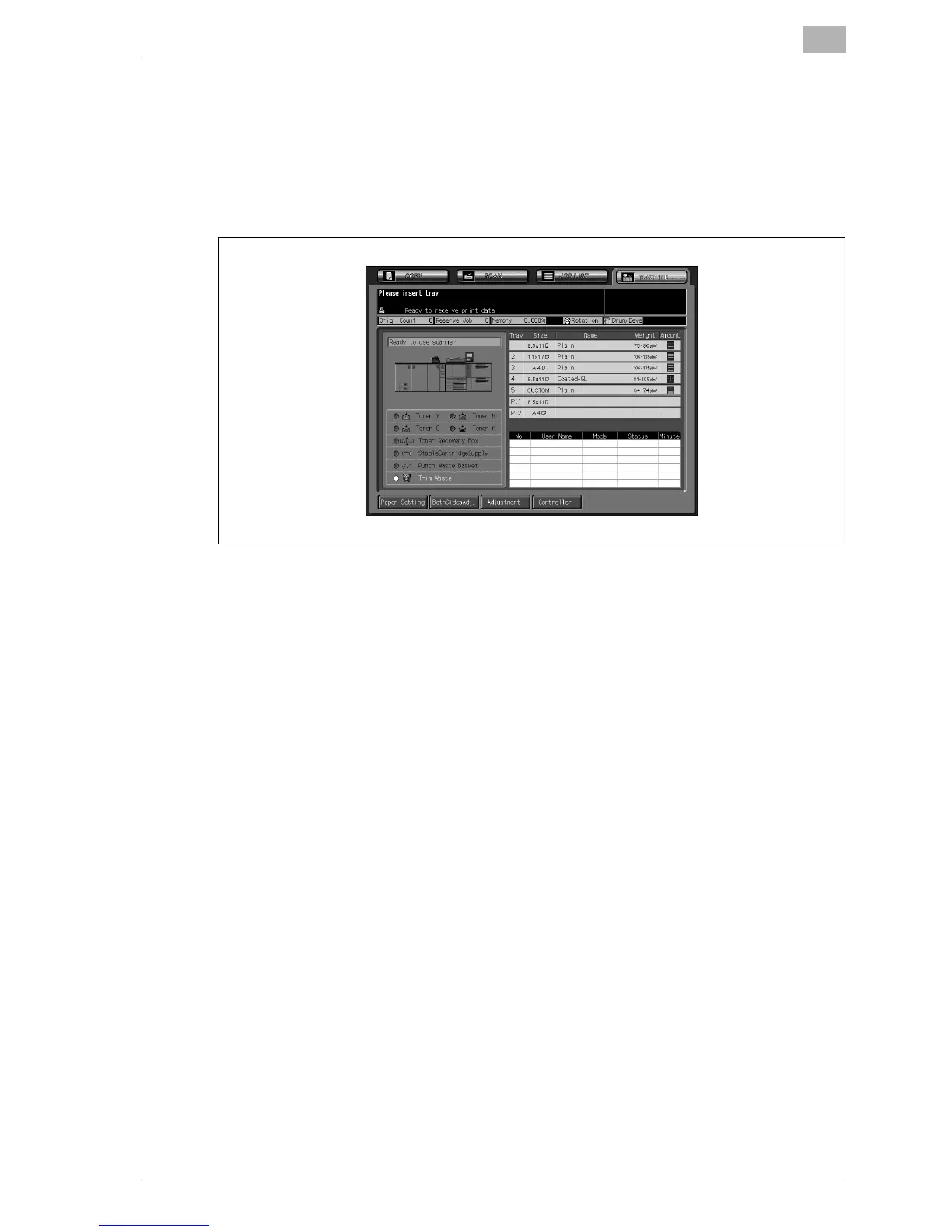

Waste indicator lights in red in the option status area of the Machine Status

screen.

If printing job is in progress, a message will be displayed on the Copy screen.

Follow the procedure below to empty the waste basket.

Default Chapter3
