Machine adjustment

14-68 bizhub PRO C6500 / bizhub PRO C6500e

14.7.4 06 Saddle Stitcher Adj. \ 04 Half Fold Position Adj.

Perform this adjustment for the double-folding position processed by the

saddle stitcher SD-501.

To specify Half Fold Position Adj.

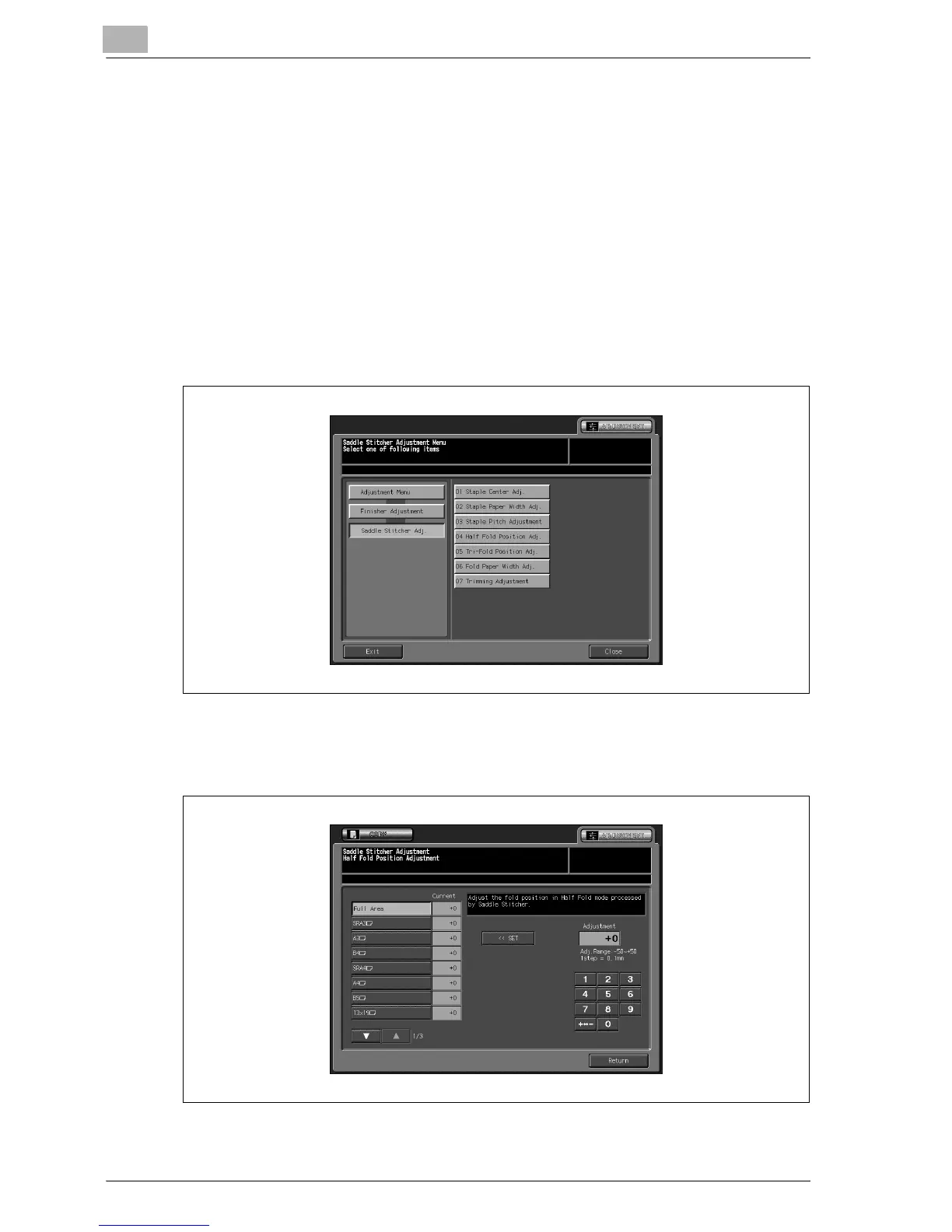

1 Touch [Adjustment] on the Machine Status screen.

The Adjustment Menu screen will be displayed.

2 Touch [04 Finisher Adjustment], [06 Saddle Stitcher Adj.], and then

[04 Half Fold Position Adj.].

The Half Fold Position Adjustment screen will be displayed.

3 Touch [COPY] tab.

The Copy screen will be displayed.
