19

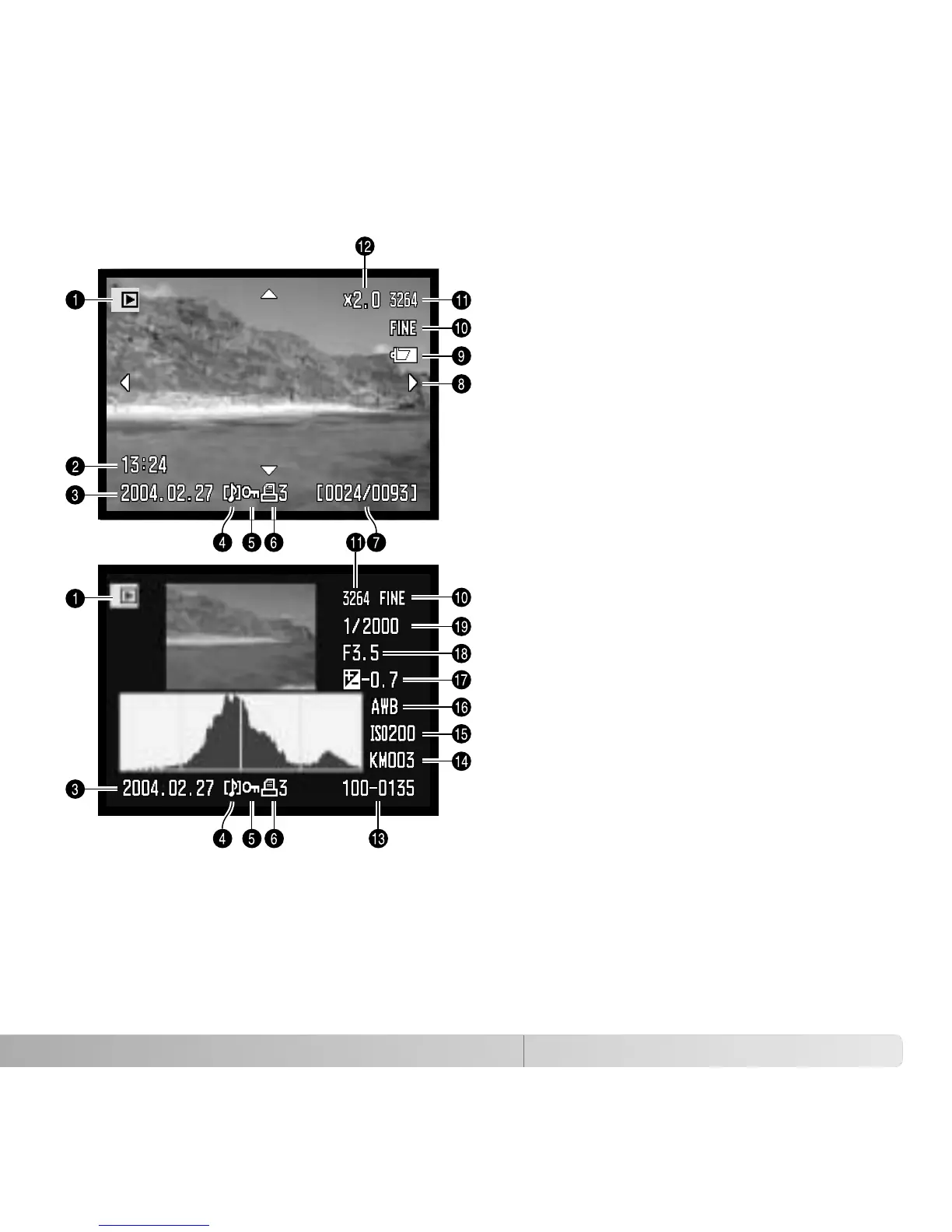

MONITOR DISPLAY - QUICK VIEW & PLAYBACK MODE
7. Frame number / total number of images
5. Lock indicator (p. 121)
6. Print indicator (p. 126)
11. Image-size display (p. 82)
10. Image-quality indicator (p. 82)
2. Time of capture
1. Mode indicator
4. Voice-memo indicator (p. 115)
16. White-balance setting (p. 70)
15. Sensitivity setting (p. 74)
17. Degree of exposure
compensation (p. 59)
14. Folder name (p. 137)
13. Folder number - image file number
Histogram
3. Date of capture
The dark area of the histogram shows the luminance distribution of the recorded image
from black (left) to white (right). Each one of the 256 vertical lines indicates the relative
proportion of that light value in the image. The histogram can be used to evaluate
exposure and contrast, but displays no color information.
19. Shutter-speed
18. Aperture value
8. Scroll arrows (p. 43)
9. Battery-condition indicator (p. 24)
12. Magnification display (p. 43)
