7 Start-up
7.4 Checking/setting parallel lifting
40
EasyCut F 320 M
Original Operating Instructions 150000808_01_en
The lower link extensions (1) serve as extension of the lower links to increase the distance from
machine to the front wheels of the tractor.
ü The lower link extensions (1) are mounted on the machine according to accessories kit 150
000 325.
ü The machine is attached to the tractor,refer to page38.
ü The machine is in the working position,refer to page48.
ü The front linkage is in the float position.
ü The machine is shut down and safeguarded, refer to page24.
On tractors with swinging (height-adjustable) lower links, fasten the lower link
extensions (1).
Fastening
Unscrew the screw (2) until the bolt (5) of the lower link extension (1) rests against the stop
(4) of the triangle linkage.
Lock the screw (2) with the nut (3).
Adjust the right and left machine side.
On tractors with rigid lower links, set the lower link extensions (1) so that they are
swinging.
Swinging
Turn the screw (2) all the way in.
Lock the screw (2) with the nut (3).
Adjust the right and left machine side.

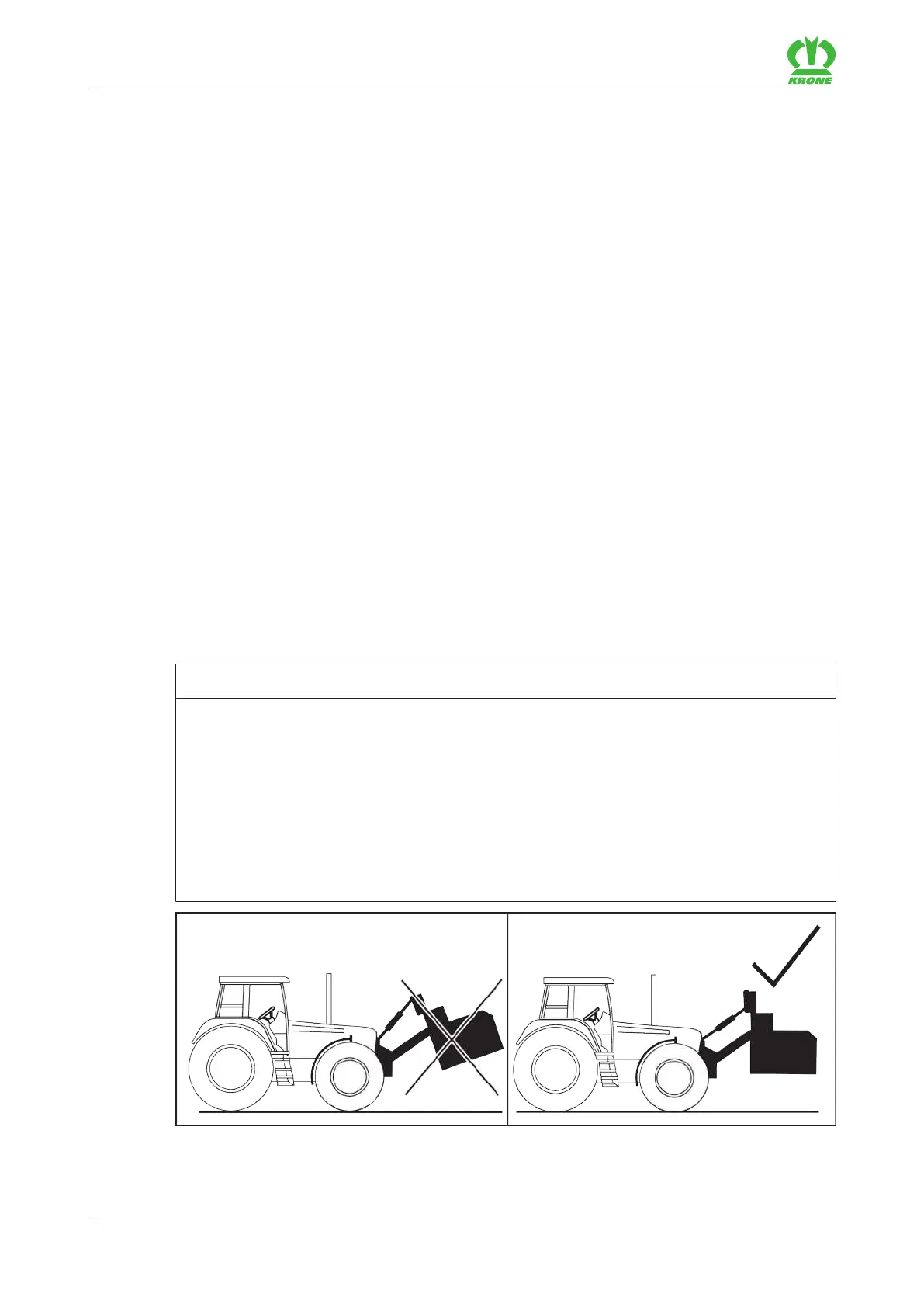

7.4 Checking/setting parallel lifting
NOTICE
If the machine does not lift in parallel with to the ground, the machine or the tractor
may be damaged.
If the machine does not lift in parallel with the ground, the universal shaft may bend
unfavourably. If the universal shaft is bent unfavourably, the machine will not run smoothly.
This may damage the machine or the tractor seriously.
To prevent damage, the machine must be aligned in parallel with the ground when it is
lifted.
Whenever mounting the machine again, check the parallelism of the machine to the
ground when it is lifted.
