Start-up 7
Mounting relief springs 7.5
EasyCut F 320 M
Original Operating Instructions 150000808_01_en 41
Attach the top link to the coupling triangle or to the upper coupling point of the machine so that
the raised machine is aligned as parallel as possible to the ground.
ü The machine is mounted on the tractor.
Lift the machine via the front hydraulics, refer to page49.
Shut down and safeguard the machine, refer to page24.
Check that the machine is parallel to the ground.
Æ When the raised machine is aligned parallel to the ground, continue with the connection.
Æ If the machine is not parallel to the ground:
Lower the machine to the ground, .
Shut down and safeguard the machine, refer to page24.
Move the top link in the hole pattern on the coupling triangle.
Lift the machine via the front hydraulics, refer to page49.
Check that the machine is parallel to the ground.
Repeat the process until the raised machine is parallel to the ground.
7.5 Mounting relief springs

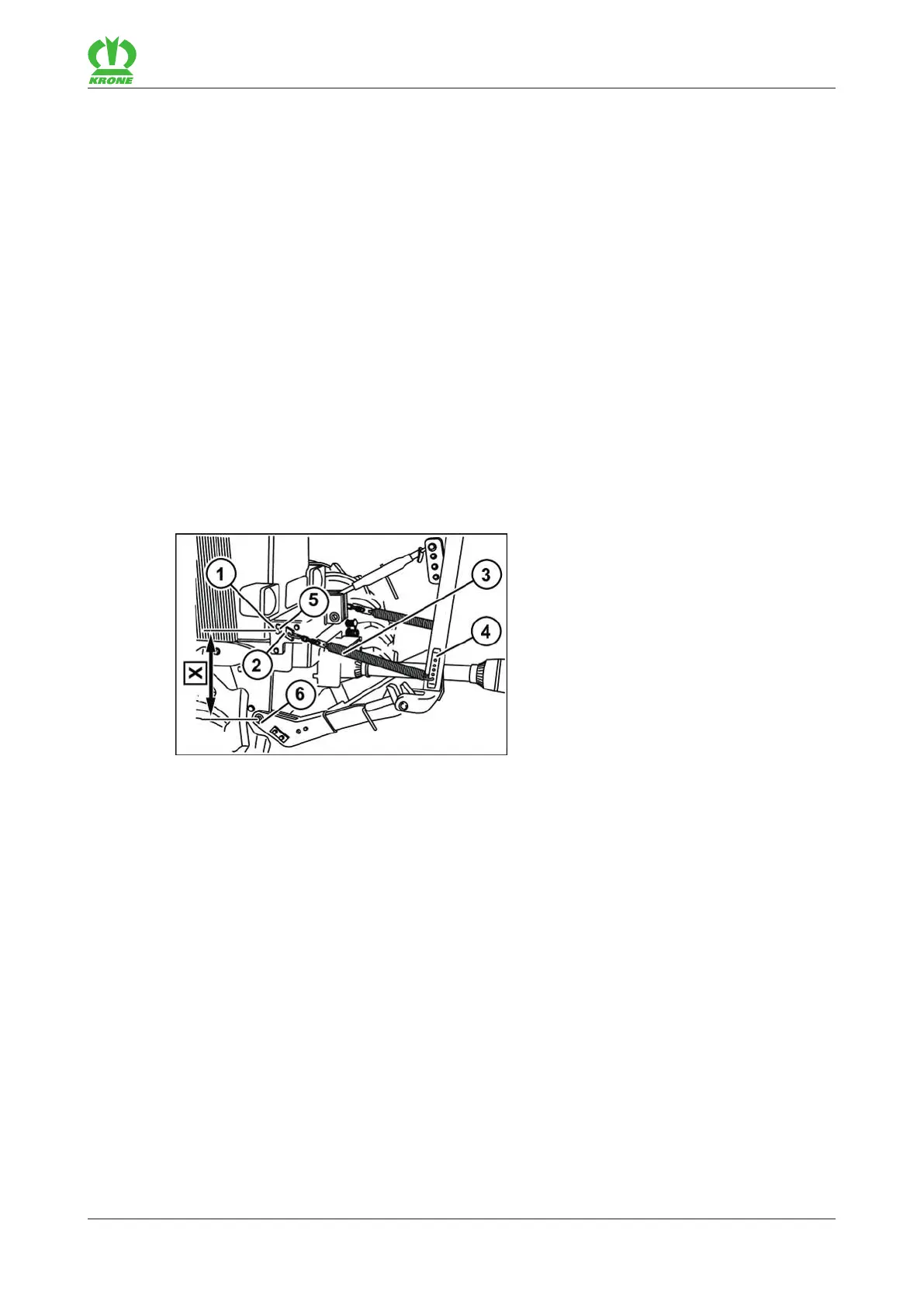

KMG000-055
Raise the machine to the transport position via the front hydraulics.
Shut down and safeguard the machine, refer to page24.
Hook the relief spring (3) on the machine side into the perforated bar (4).
Hook the relief spring (3) on the tractor side into the corresponding holder.
INFORMATION! To ensure proper use of the machine, make sure that the dimension is
X=300-400mm (measured between support point (5) of the relief spring (3) and the pivot
point (6) of the lower link of tractor).
If the support (2) is used to attach the relief spring, secure the support with the linch pin (1).
The relief springs must be attached equally on both sides.
