14 Maintenance - Cutterbar
14.2 Replacing the shear bolt at the rotary hub
70
EasyCut F 320 M
Original Operating Instructions 150000808_01_en
14.2 Replacing the shear bolt at the rotary hub
NOTICE
Wrong installation position
The machine may be damaged if the installation position of the bearing housings is not
observed.
 Clockwise rotating (RH) cutting discs / mower drums always have right-handed pinion
shaft and nut (no groove mark on pinion shaft and nut).
 Anti-clockwise rotating (LH) cutting discs / mower drums always have left-handed pinion
shaft and nut (with groove mark on pinion shaft and nut).

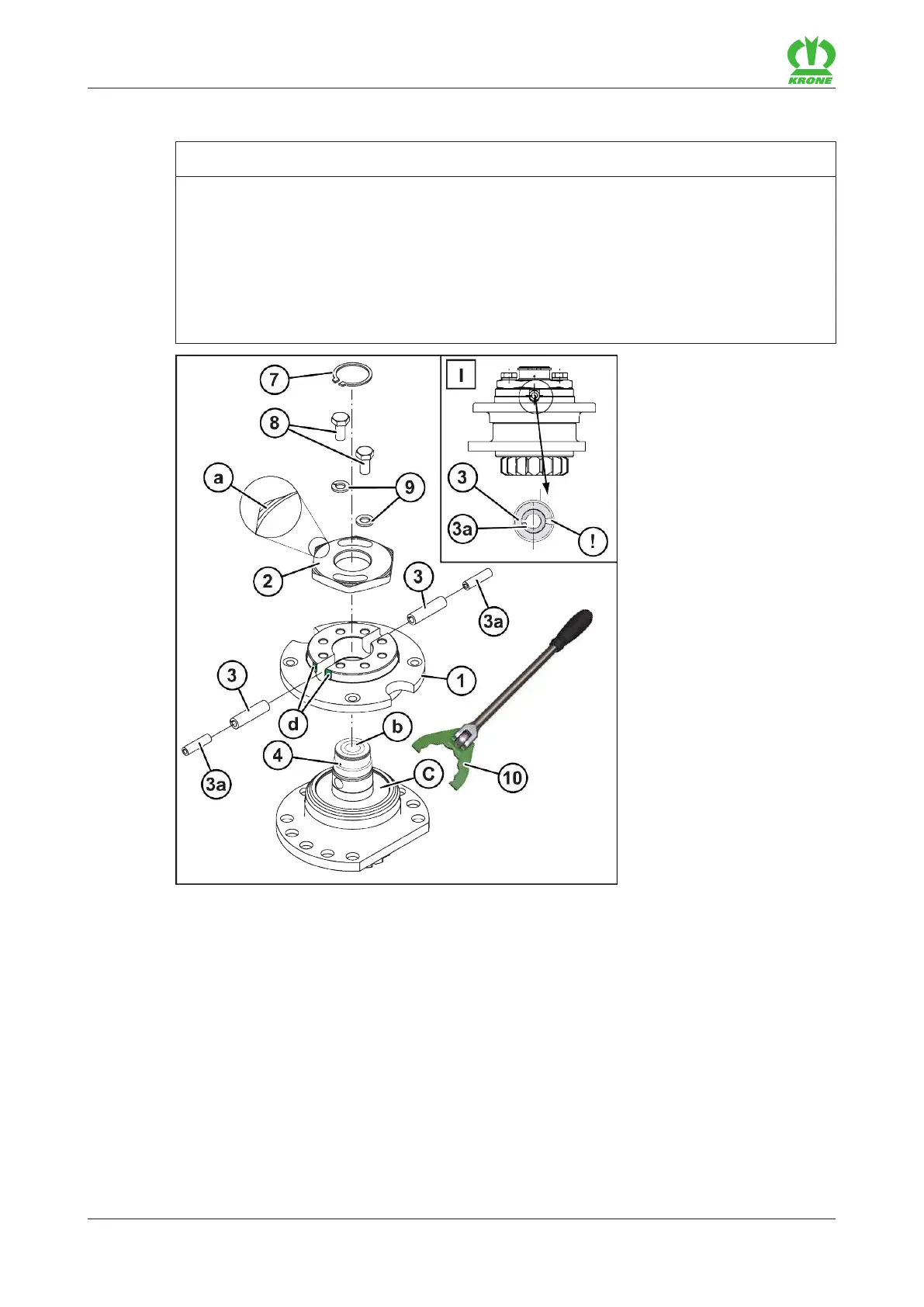

KM000-049_1
ü The machine is in the working position, refer to page48.
ü The machine is shut down and safeguarded, refer to page24.
 Dismount the cutting disc or the mower drum at the rotary hub with the defective shear bolt.
 Remove the retaining ring (7).
 Unscrew the screws (8).
 Dismount the nut (2) by using the special key (10) included with delivery.
 Dismount the hub (1).
 Remove the damaged shear pins (3).
 Check the nut and the hub for damage.
