Krone EasyCut F 320 M User Manual

14 Maintenance - Cutterbar
14.3 Check/change blades
72
EasyCut F 320 M
Original Operating Instructions 150000808_01_en
KM000-038
ü The machine is in the working position, refer to page48.
ü The machine is shut down and safeguarded, refer to page24.
ü The front guard is folded up, refer to page45.
 Clean the area around the blades, cutting discs and mower drums.
 Check wear limit.
ð If the dimension is X>13mm, the wear limit is not reached.
ð If the dimension is X≤13mm or the borehole touches the marking (1), the blade must
be replaced.
14.3.2 Changing blades for the “blade screw connection” version
KM000-044
ü The machine is in the working position, refer to page48.
ü The machine is shut down and safeguarded, refer to page24.
ü The front guard is folded up, refer to page45.
ü The area around the blade, mowing discs and mower drums is cleaned.
 Remove the damaged or worn blade.
 Check the fastening parts of the blade, refer to page74. Also replace worn or damaged
mounting parts.
INFO : The blades for anticlockwise rotating and clockwise rotating cutting discs/mower drums
are different. When mounting the blades, mind the direction of rotation. The arrow on the blade
must correspond to the direction of rotation of the respective cutting disc/mower drum.

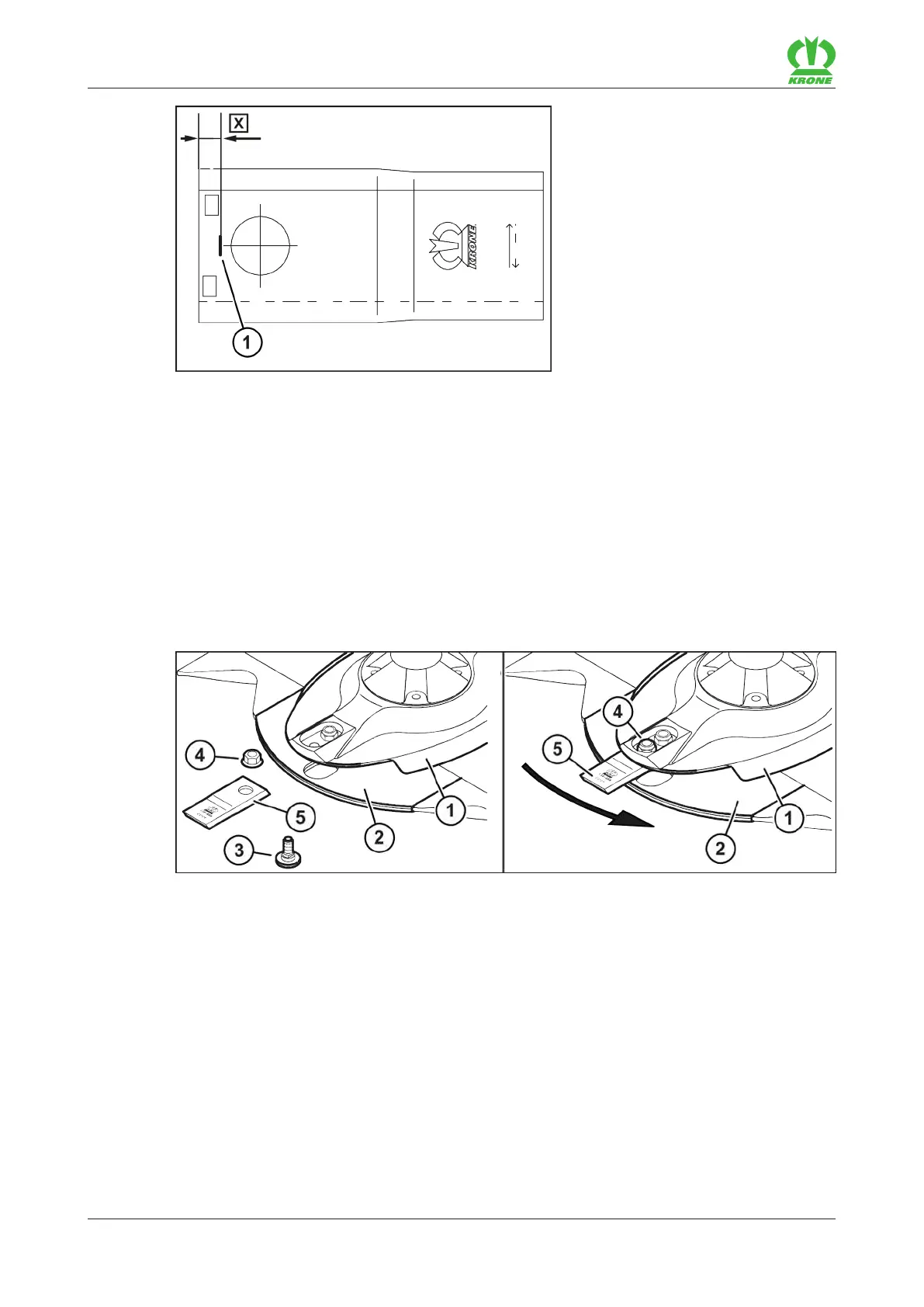

 Insert the new blade (5) between the wear skid (2) and the cutting disc (1).
 Insert the retaining bolt (3) from below through the wear skid (2), the blade (5) and the
cutting disc (1).
