Maintenance - Cutterbar 14
Checking oil level 14.8
EasyCut F 320 M
Original Operating Instructions 150000808_01_en 79

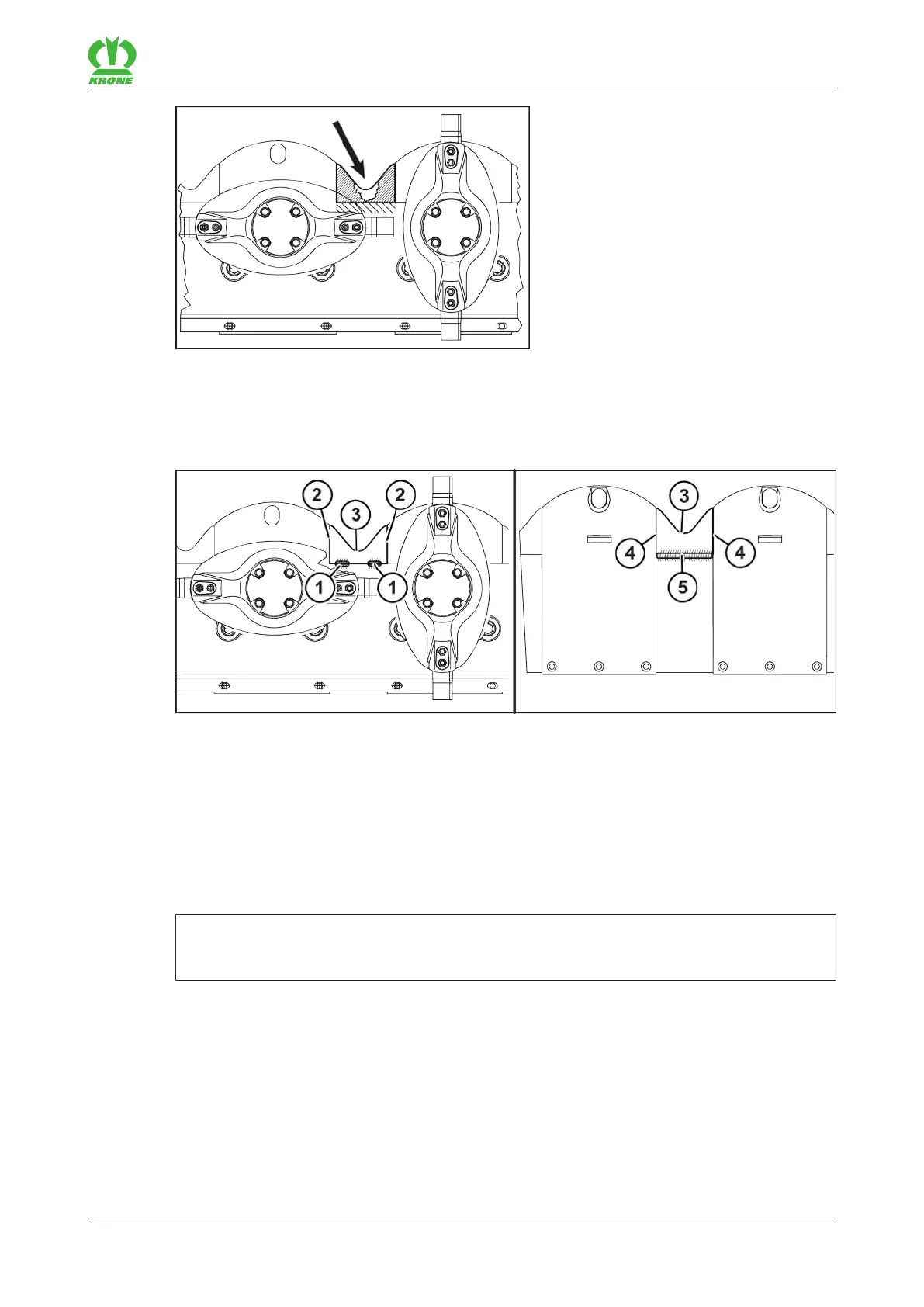

KM000-081
 Open the welding seams of the old lining.
 Remove lining.
 Deburr the contact areas.
KM000-080
 Fit the new lining (3).
 Weld short I seams on the upper side of the cutterbar in the sections (1) (each should be
approx. 30 mm). INFORMATION: The edges (2) must not be welded.
 On the bottom of the cutterbar, weld the lining (3) to the cutterbar along the whole length in
section (5). INFORMATION: The edges (4) must not be welded.
14.8 Checking oil level
INFORMATION
There is no need to change the oil on the cutterbar.
Before checking the oil level on the cutterbar, the cutterbar must be aligned levelly by means of
a spirit level.
