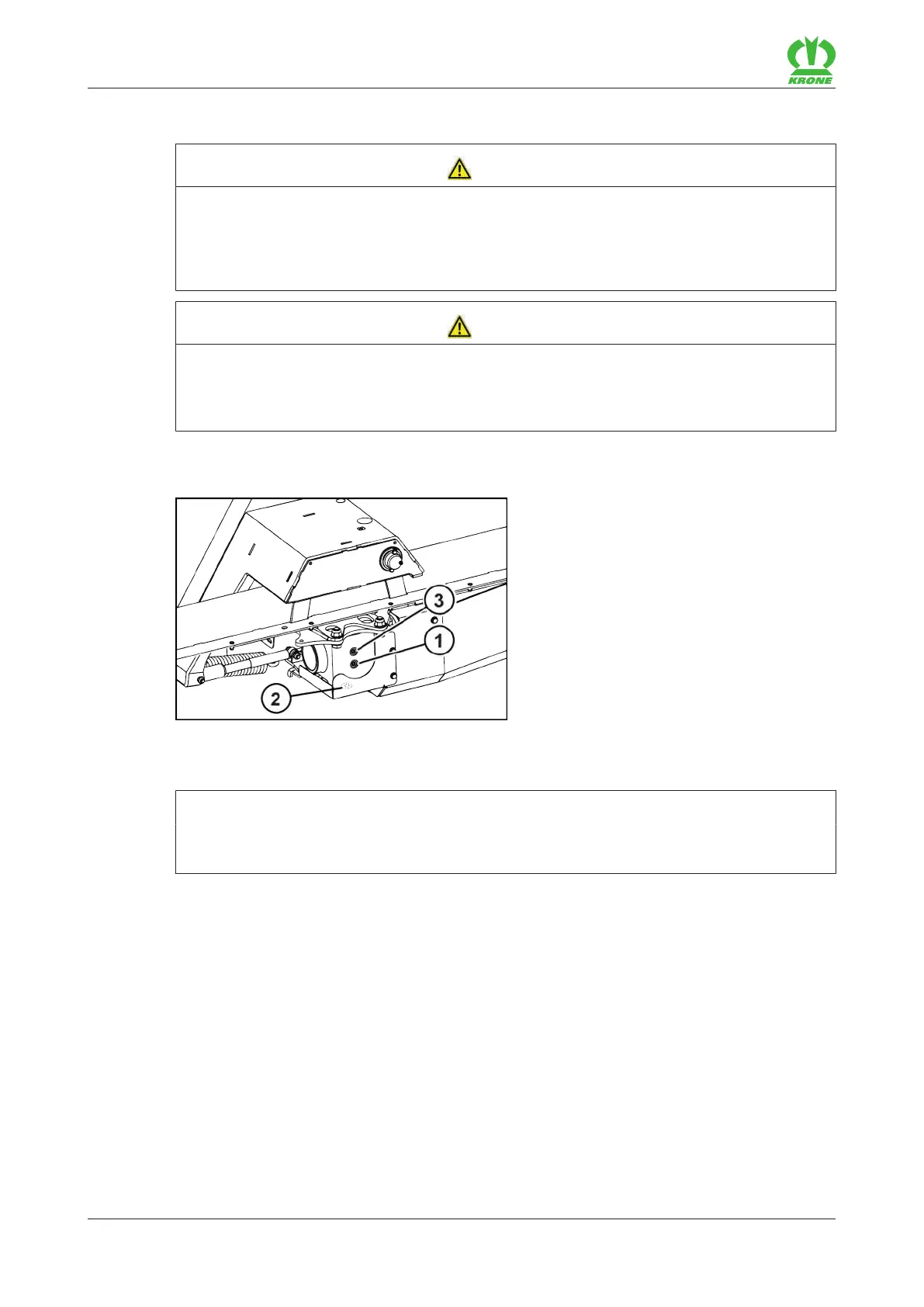

13.1 Input gearbox
KMG000-005
Comply with the safety routine "Safe execution of oil level check, oil and filter element
exchange", refer to page25.
INFORMATION
The oil level must be checked and the oil must be changed in working position and with
machine in horizontal position.
Check oil level
Unscrew the locking screw of the inspection hole (1).
ð If the oil reaches up to the inspection hole(1):
Screw on the locking screw of the inspection hole (1), tightening torque refer to
page62.
ð If the oil does not reach up to the inspection hole(1):
Remove the locking screw from the filling hole (3).
Refill with fresh oil up to the inspection hole (1) via the filling hole (3).
Screw on the locking screw of the inspection hole(1) and the locking screw of the filling
hole(3), tightening torque refer to page62.
