KTM 390 Duke Series 2019 User Manual

11 TUNING THE CHASSIS
114
11.2 Adjusting the shift lever
Info
The adjustment range of the shift lever is limited.
F00794-10
–

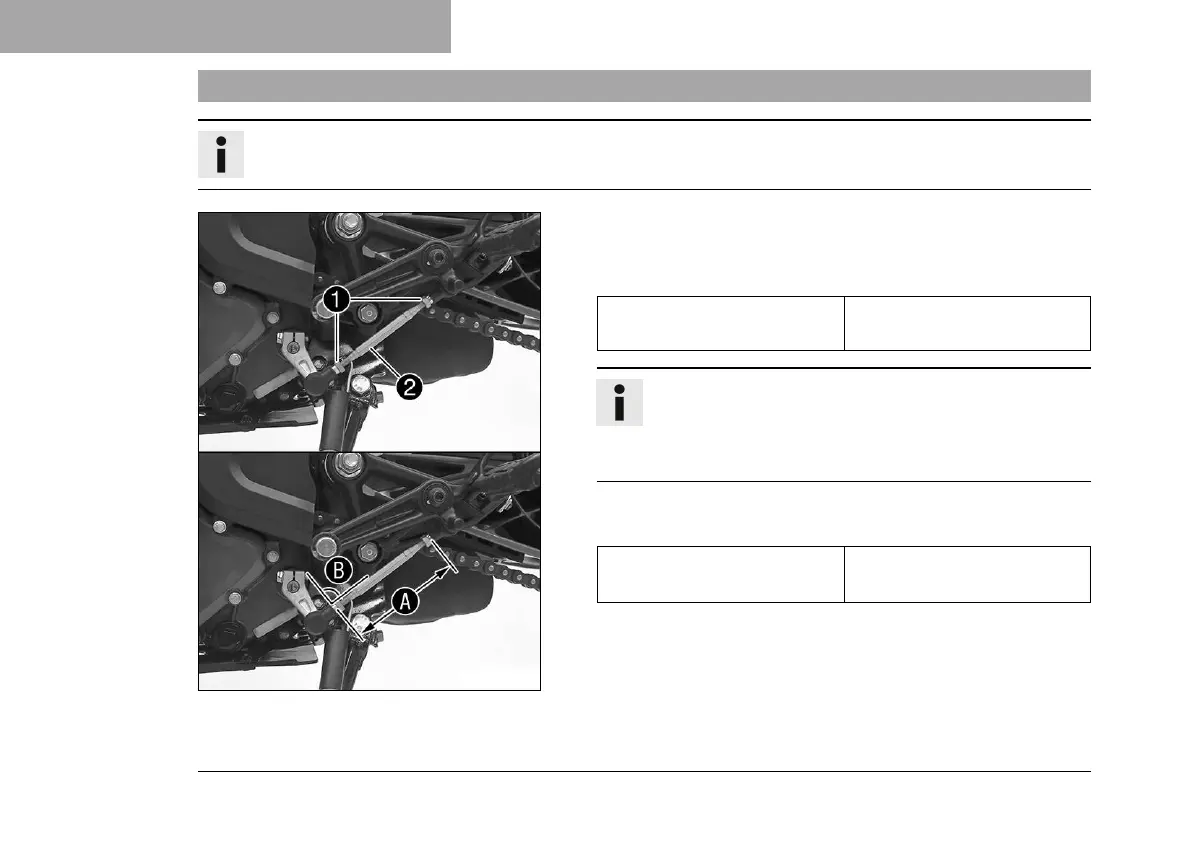

Loosen nuts
1
.
–
Adjust the shift lever by turning shift rod
2
.
Guideline
Shift rod adjustment
range
A
90 … 102 mm (3.54 …
4.02 in)
Info
Make the same adjustments on both sides.
At least five screw threads must be screwed into the
seating.
–
Check adjusting angle
B
.
Guideline
Adjusting angle
B
shift rod
- bell crank - shift lever
90°
–
Tighten nuts
1
.

KTM 390 Duke Series 2019 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Torque	37 Nm @ 7, 000 rpm
Compression Ratio	12.6:1
Transmission	6-speed
Frame	Steel trellis frame, powder coated
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Tire	110/70 R17
Rear Tire	150/60 R17
Wheelbase	1, 357 mm
Seat Height	830 mm
Ground Clearance	170 mm
Fuel Tank Capacity	13.4 liters
Dry Weight	149 kg
Power	32 kW (43.5 hp) @ 9, 000 rpm
Fuel System	Electronic fuel injection (EFI)
Front Brake	320 mm disc brake
Rear Brake	230 mm disc brake
ABS	Bosch 9.1MB two-channel ABS
Engine Type	Single-cylinder, 4-stroke, liquid-cooled
Clutch	Wet multi-disc clutch, mechanically operated
