KTM 390 Duke Series 2019 User Manual

7 COMBINATION INSTRUMENT
70

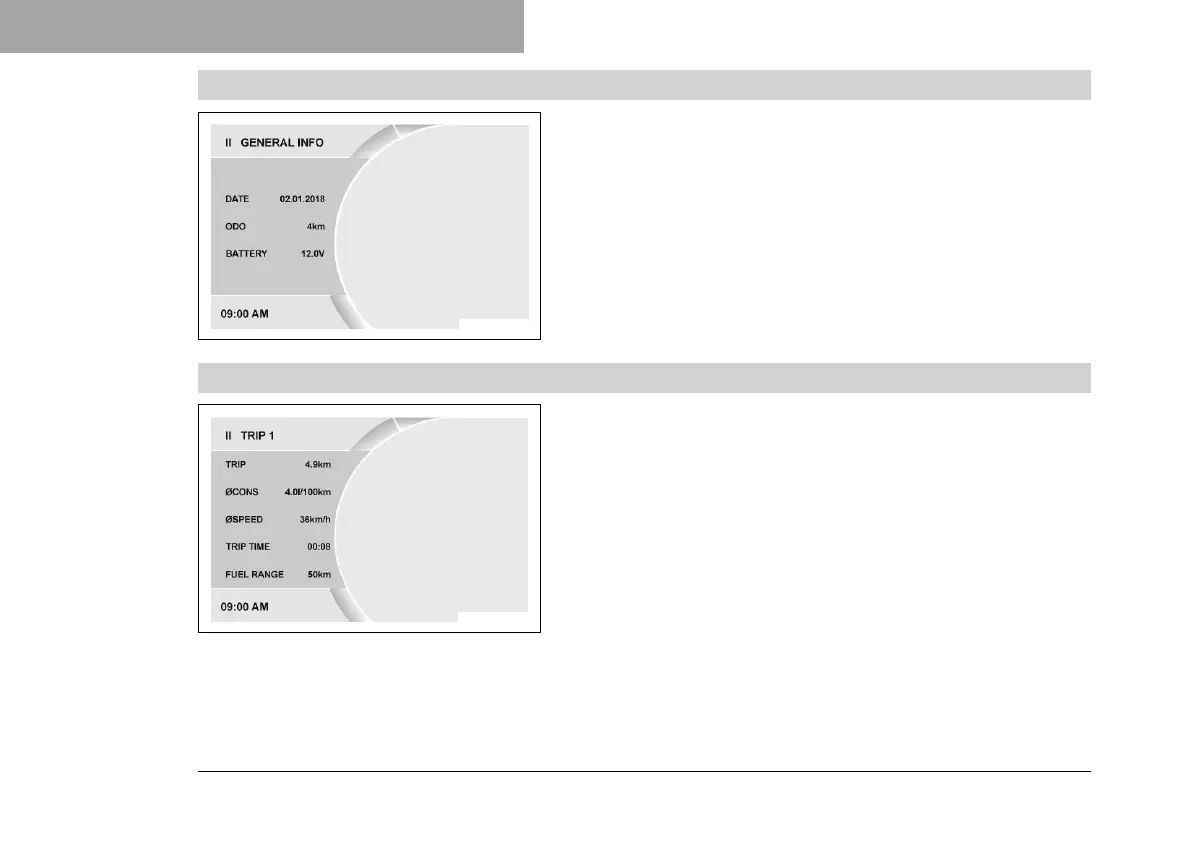

7.17.11 General Info
V01166-01
– Press the SET button when the menu is closed.
– Press the UP or DOWN button until Info is marked. Press
the SET button to open the menu.
– Press the UP or DOWN button until General Info is marked.
Press the SET button to open the menu.
Date shows the date.
ODO shows the total distance covered.
Battery indicates the battery voltage.
7.17.12 Trip 1
E01062-01
– Press the SET button when the menu is closed.
– Press the UP or DOWN button until Info is marked. Press
the SET button to open the menu.
– Press the UP or DOWN button until Trip 1 is marked. Press
the SET button to open the menu.
Trip shows the distance since the last reset, such as between two
refueling stops. Trip is running and counts up to 9999.
ØCons indicates the average fuel consumption based on Trip.
ØSpeed indicates the average speed based on Trip and Trip Time.
Trip Time shows the journey time on the basis of Trip and runs as
soon as a speed signal is received.

KTM 390 Duke Series 2019 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Torque	37 Nm @ 7, 000 rpm
Compression Ratio	12.6:1
Transmission	6-speed
Frame	Steel trellis frame, powder coated
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Tire	110/70 R17
Rear Tire	150/60 R17
Wheelbase	1, 357 mm
Seat Height	830 mm
Ground Clearance	170 mm
Fuel Tank Capacity	13.4 liters
Dry Weight	149 kg
Power	32 kW (43.5 hp) @ 9, 000 rpm
Fuel System	Electronic fuel injection (EFI)
Front Brake	320 mm disc brake
Rear Brake	230 mm disc brake
ABS	Bosch 9.1MB two-channel ABS
Engine Type	Single-cylinder, 4-stroke, liquid-cooled
Clutch	Wet multi-disc clutch, mechanically operated
