KTM 390 Duke Series 2019 User Manual

15 ELECTRICAL SYSTEM
182
15.7 Checking the headlight setting
400726-10

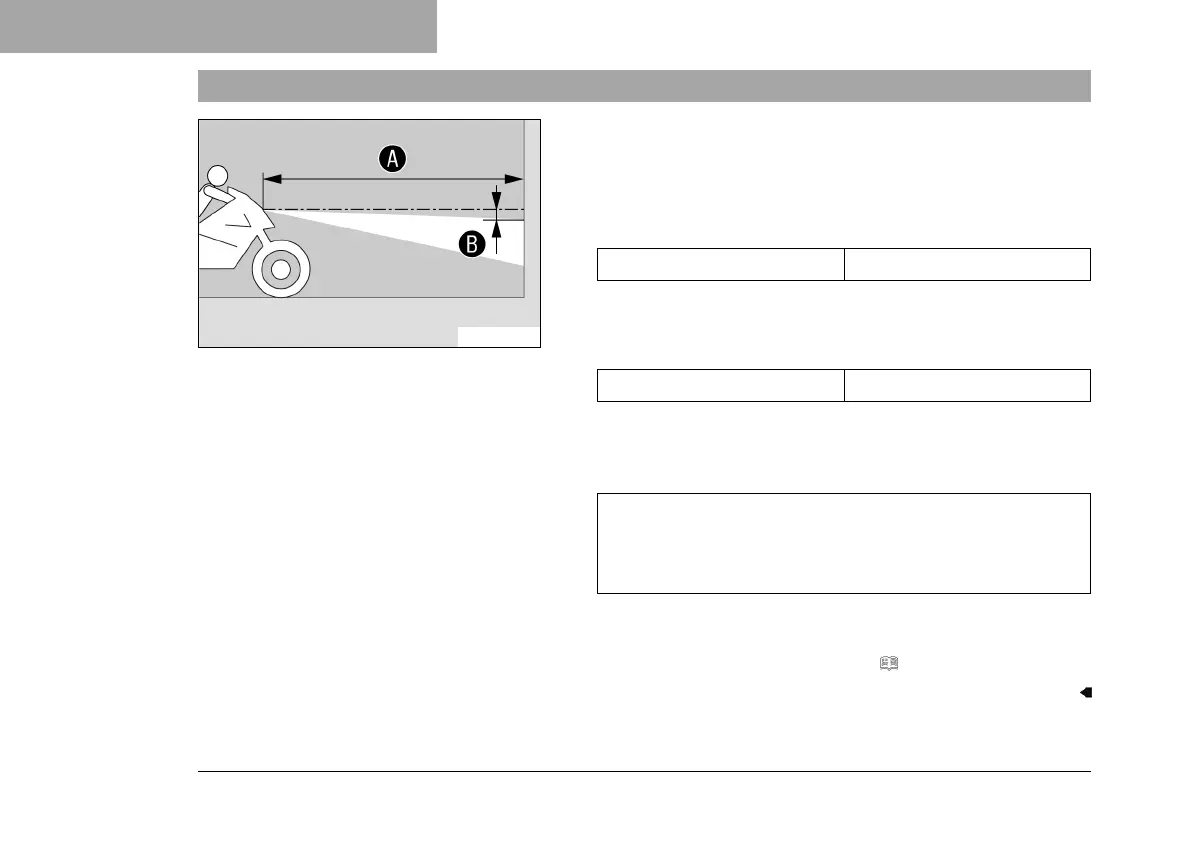

– Park the vehicle on a horizontal surface in front of a light-
colored wall and make a mark at the height of the center of
the low beam headlight.
–
Make another mark at a distance
B
under the first marking.
Guideline
Distance
B
5 cm (2 in)
–
Position the vehicle vertical to the wall at distance
A
from
the wall and switch on the low beam.
Guideline
Distance
A
5 m (16 ft)
– The rider now mounts the motorcycle with luggage and passen-
ger if applicable.
– Check the headlight setting.
The light-dark boundary must be exactly on the lower mark-
ing when the motorcycle is ready to be operated with the
rider mounted along with any luggage and a passenger if
applicable.
» If the boundary between light and dark does not meet
specifications:
– Adjust the headlight range. ( p. 183)

KTM 390 Duke Series 2019 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Torque	37 Nm @ 7, 000 rpm
Compression Ratio	12.6:1
Transmission	6-speed
Frame	Steel trellis frame, powder coated
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Tire	110/70 R17
Rear Tire	150/60 R17
Wheelbase	1, 357 mm
Seat Height	830 mm
Ground Clearance	170 mm
Fuel Tank Capacity	13.4 liters
Dry Weight	149 kg
Power	32 kW (43.5 hp) @ 9, 000 rpm
Fuel System	Electronic fuel injection (EFI)
Front Brake	320 mm disc brake
Rear Brake	230 mm disc brake
ABS	Bosch 9.1MB two-channel ABS
Engine Type	Single-cylinder, 4-stroke, liquid-cooled
Clutch	Wet multi-disc clutch, mechanically operated
