7 COMBINATION INSTRUMENT
54

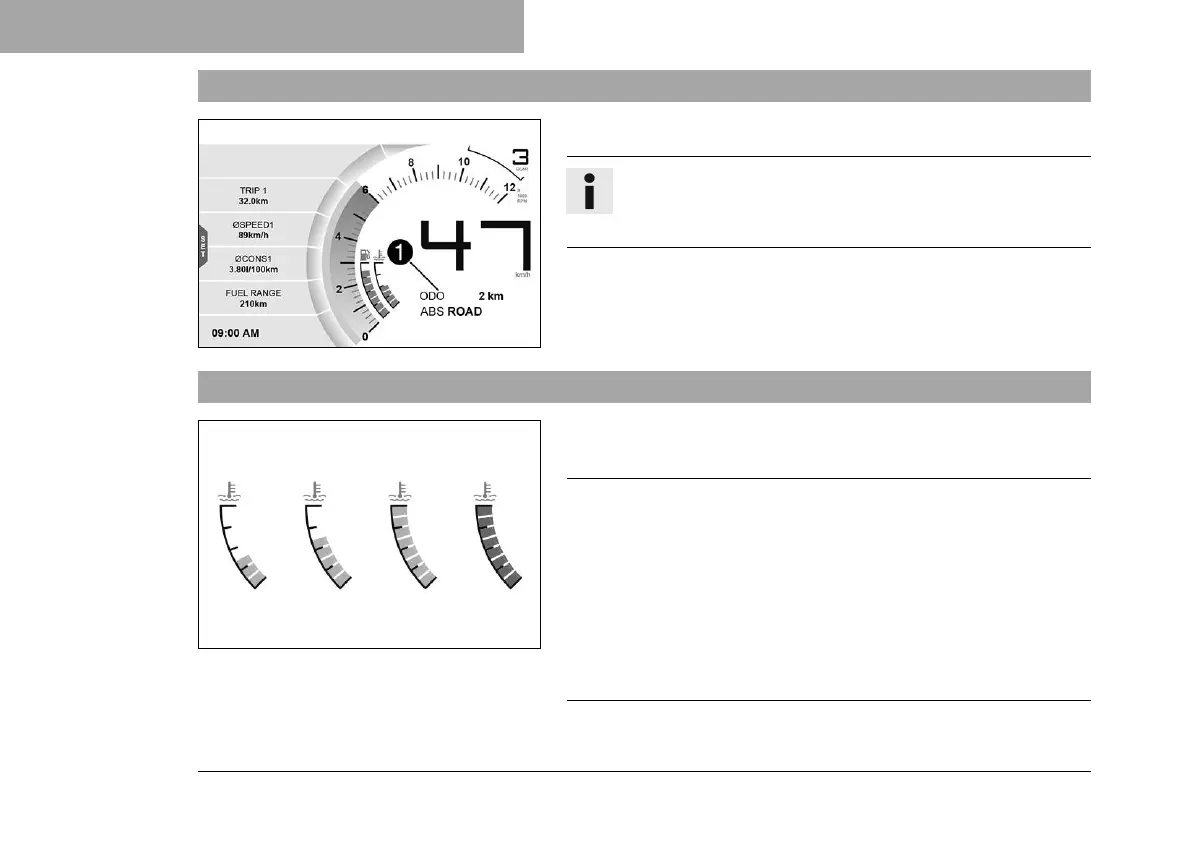

7.10 ODO display
M01581-12
The total distance covered ODO is shown in area
1
of the display.
Info
This value is retained, even if the 12-V battery is discon-
nected from the vehicle or the fuse blows.
7.11 Coolant temperature indicator
402808-01
The coolant temperature indicator consists of bars. The more bars
that light up, the hotter the coolant.
Note
Engine failureOverheating damages the engine.
If the coolant temperature warning is displayed, stop imme-
diately and take care not to endanger yourself or other traffic
participants in the process.
Allow the engine and cooling system to cool down.
Check and, if necessary, correct the coolant level on the cool-
ing system while it is in a cooled state.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the KTM 390 Duke Series 2019 and is the answer not in the manual?

KTM 390 Duke Series 2019 Specifications

General IconGeneral
Displacement373.2 cc
Bore x Stroke89 mm x 60 mm
Torque37 Nm @ 7, 000 rpm
Compression Ratio12.6:1
Transmission6-speed
FrameSteel trellis frame, powder coated
Front SuspensionWP upside-down Ø 43 mm
Rear SuspensionWP monoshock
Front Tire110/70 R17
Rear Tire150/60 R17
Wheelbase1, 357 mm
Seat Height830 mm
Ground Clearance170 mm
Fuel Tank Capacity13.4 liters
Dry Weight149 kg
Power32 kW (43.5 hp) @ 9, 000 rpm
Fuel SystemElectronic fuel injection (EFI)
Front Brake320 mm disc brake
Rear Brake230 mm disc brake
ABSBosch 9.1MB two-channel ABS
Engine TypeSingle-cylinder, 4-stroke, liquid-cooled
ClutchWet multi-disc clutch, mechanically operated
