KTM 390 Duke Series 2019 User Manual

ELECTRICAL SYSTEM 15
183

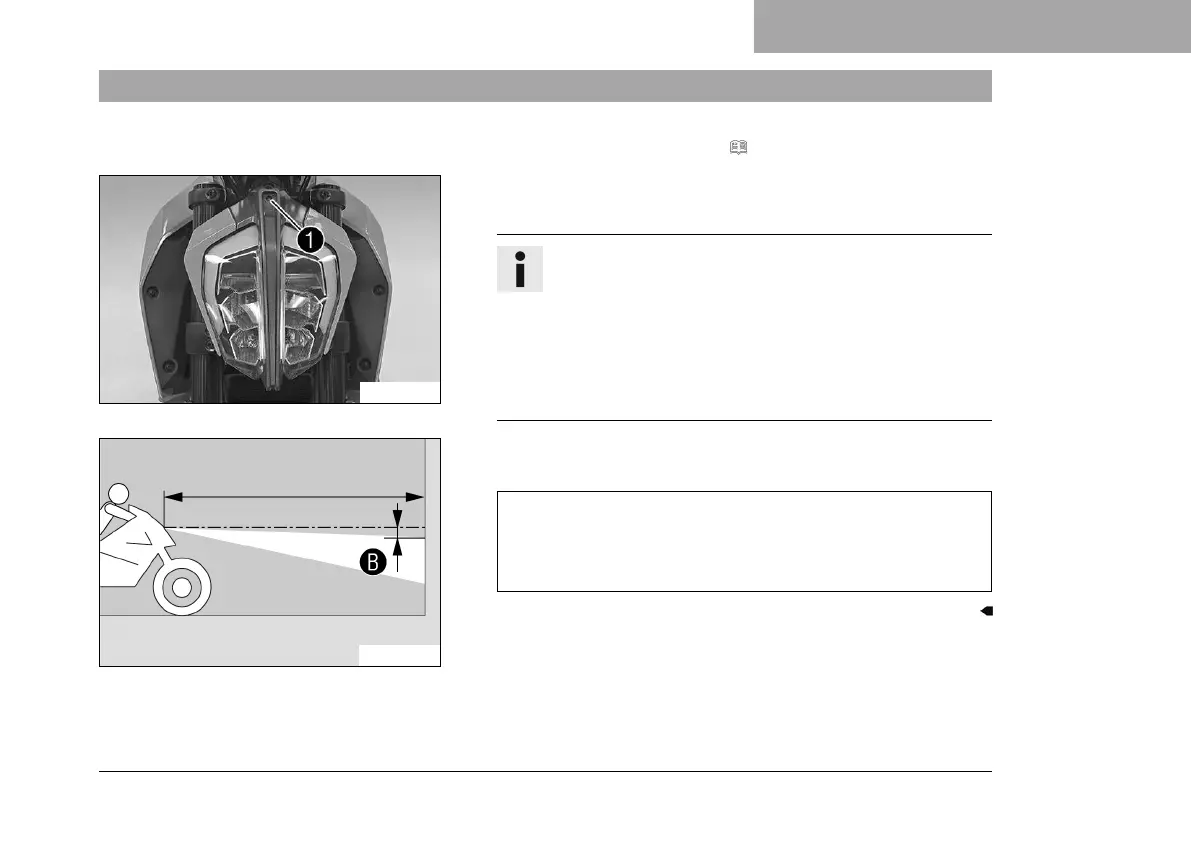

15.8 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 182)
F00850-10
Main work
–
Turn adjusting screw
1
to adjust the headlight range.
Info
Turn clockwise to increase the headlight range; turn
counterclockwise to reduce the headlight range.
If you have a payload, you may have to correct the
headlight range.
Screw
1
also secures the headlight. Ensure the screw
is always screwed in far enough.
400726-11
–
Set the headlight to marking
B
.
Guideline
The light-dark boundary must lie exactly on lower mark-
ing
B
when the motorcycle is ready to operate with the
rider mounted along with any luggage and a passenger if
applicable.

KTM 390 Duke Series 2019 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Torque	37 Nm @ 7, 000 rpm
Compression Ratio	12.6:1
Transmission	6-speed
Frame	Steel trellis frame, powder coated
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Tire	110/70 R17
Rear Tire	150/60 R17
Wheelbase	1, 357 mm
Seat Height	830 mm
Ground Clearance	170 mm
Fuel Tank Capacity	13.4 liters
Dry Weight	149 kg
Power	32 kW (43.5 hp) @ 9, 000 rpm
Fuel System	Electronic fuel injection (EFI)
Front Brake	320 mm disc brake
Rear Brake	230 mm disc brake
ABS	Bosch 9.1MB two-channel ABS
Engine Type	Single-cylinder, 4-stroke, liquid-cooled
Clutch	Wet multi-disc clutch, mechanically operated
