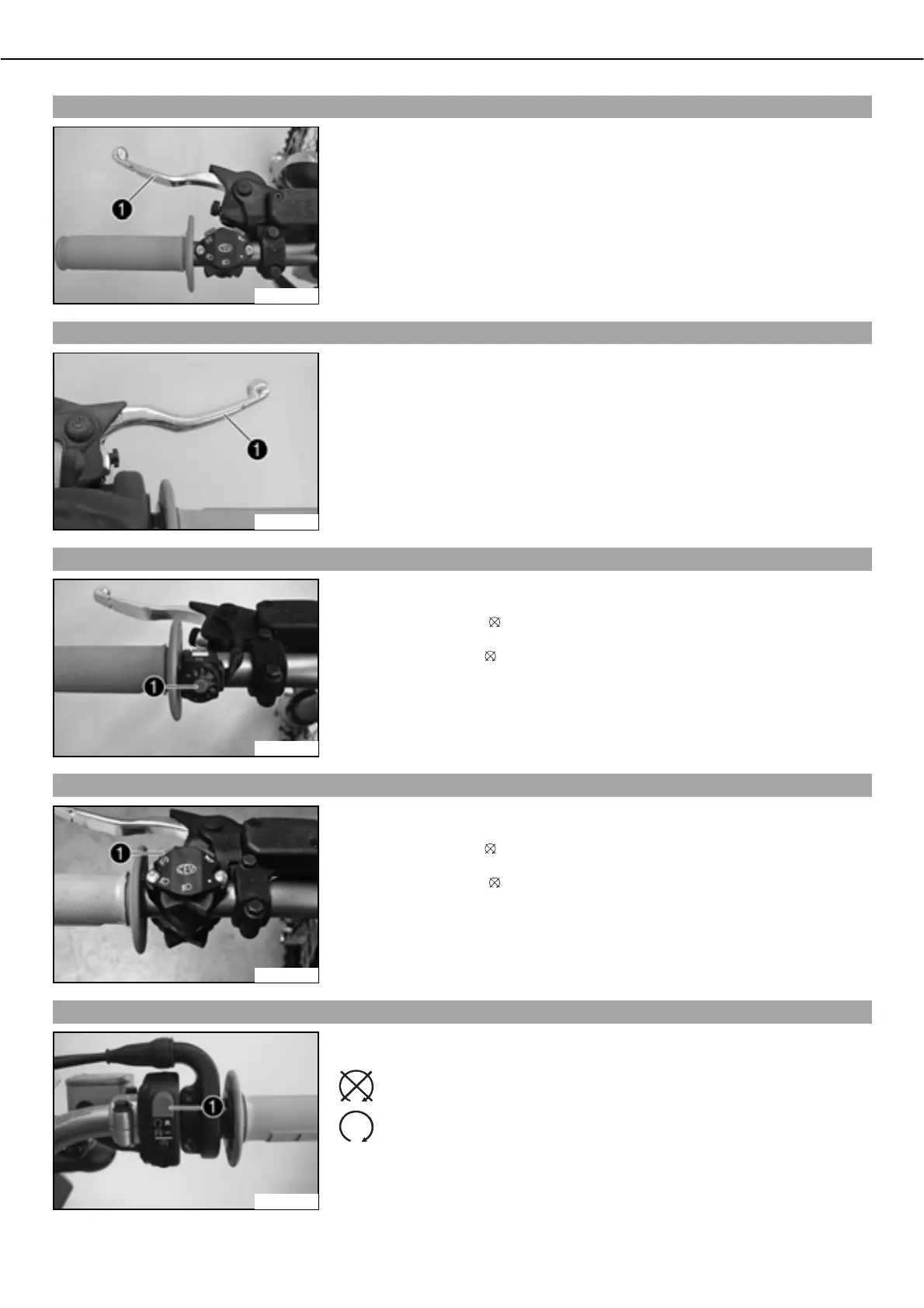

OPERATING ELEMENTS 10
23(5$7,1* (/(0(176
Clutch lever
500133-10
The clutch leverb is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
Hand brake lever
400196-10
The hand brake leverb is located on the right side of the handlebar and operates the
front wheel brake.
Short circuit button (EVERY XCR-W MODELS)
500132-10
The short circuit buttonb is mounted on the left side of the handlebar.
Possible states
• Short circuit button b in basic position ದbIn this position, the ignition circuit is
closed, and the engine can be started.
• Short circuit buttonb pressed ದbIn this position, the ignition circuit is interrupted,
a running engine stops, and a non-running engine will not start.
Short circuit button (EXC-RbEU, EXC-RbAUS/UK, EXC-RbSIXbDAYS)
500134-10
The short circuit buttonb is fitted on the left side of the handlebar.
Possible states
• Short circuit buttonb in basic position ದbIn this position, the ignition circuit is
closed, and the engine can be started.
• Short circuit button b pressed ದbIn this position, the ignition circuit is
interrupted, a running engine stops, and a non-running engine will not start.
Emergency OFF switch (EXC-RbAUS/UK)
500131-10
The emergency OFF switchb is fitted on the left side of the handlebar.
Possible states
Ignition off ದbIn this position, the ignition circuit is interrupted, a running
engine stops, and a non-running engine will not start.
Ignition on ದbIn this position, the ignition circuit is closed, and the en-
gine can be started.
