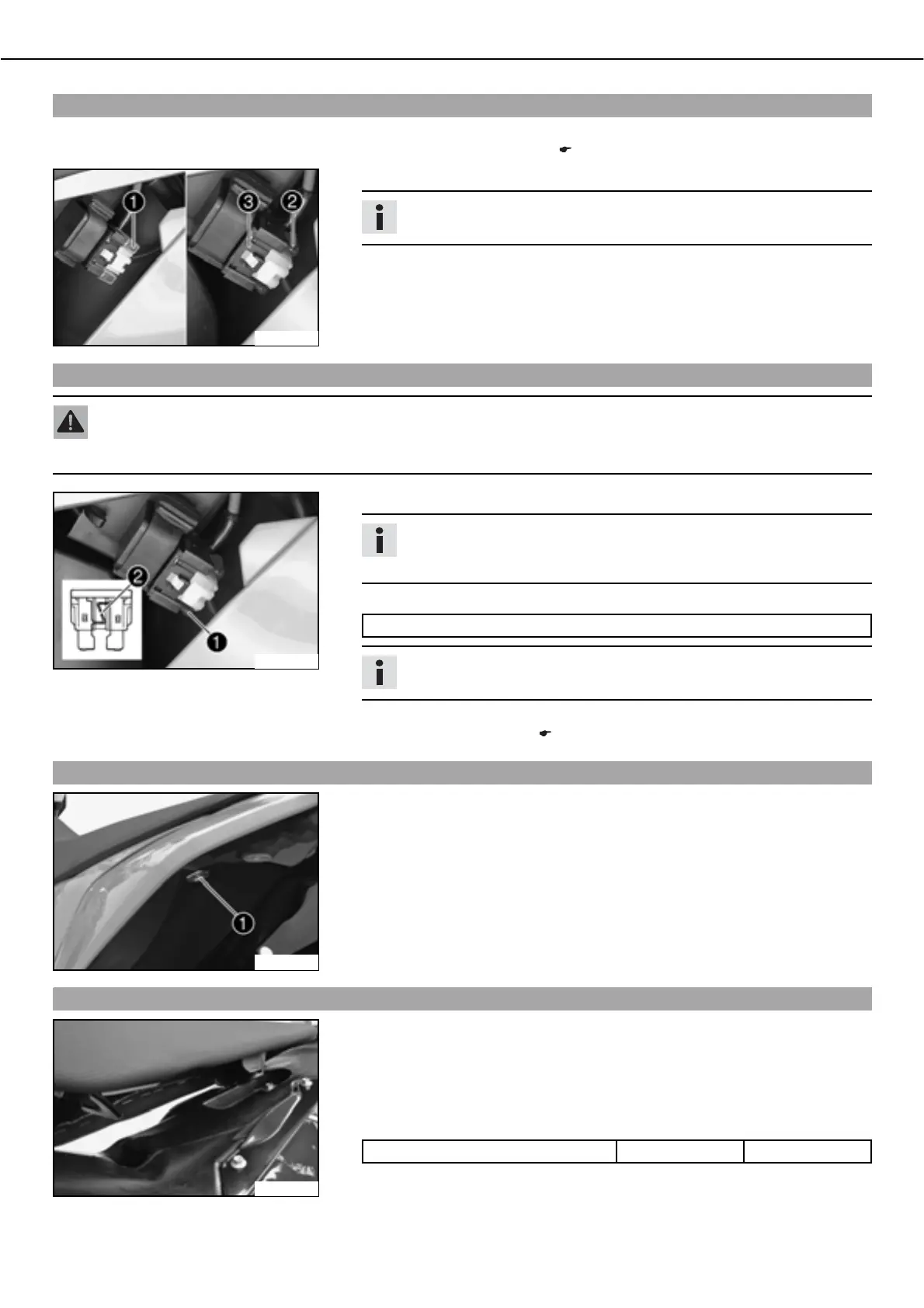

MAINTENANCE WORK ON CHASSIS AND ENGINE 69
Removing a fuse
ದ Switch off all power-consuming components and switch off the engine.
ದ Dismount the air filter box lid. ( P. 74)
400270-10
ದ Remove the protection coverb.
Info
The fuseb is located in the starter relayb under the filter box cover.
ದ Remove the fuseb
.
Replacing the fuse
Warning
Fire hazardಘThe electrical system can be overloaded by the use of incorrect fuses.
ದ Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
400273-10
ದ Check parts for damage and wear. Replace damaged or worn parts.
Info
A reserve fuseb is located in the starter relay.
Replace a burned-out fuseb
only by an equivalent fuse.
ದ Refit the fuse.
Fuseb(58011109110)
Info
If the new fuse burns out, contact an authorized KTM workshop.
ದ Replace the protection cover.
ದ Install the air filter box lid. ( P. 74)
Removing the seat
500080-10
ದ Remove screwb. Lift up the seat at the rear, pull it back and then remove from
above.
Mounting the seat
500068-01
ದ Check parts for damage and wear. Replace damaged or worn parts.
ದ Hook the front of the seat into the flange adapter of the fuel tank, lower the rear of
the seat and simultaneously push it forwards.
ದ Make sure that the seat is correctly locked in.
ದ Mount and tighten the screw of the seat fixing.
Specification
Remaining screws, chassis M6 10bNm (7.4blbfbft)
