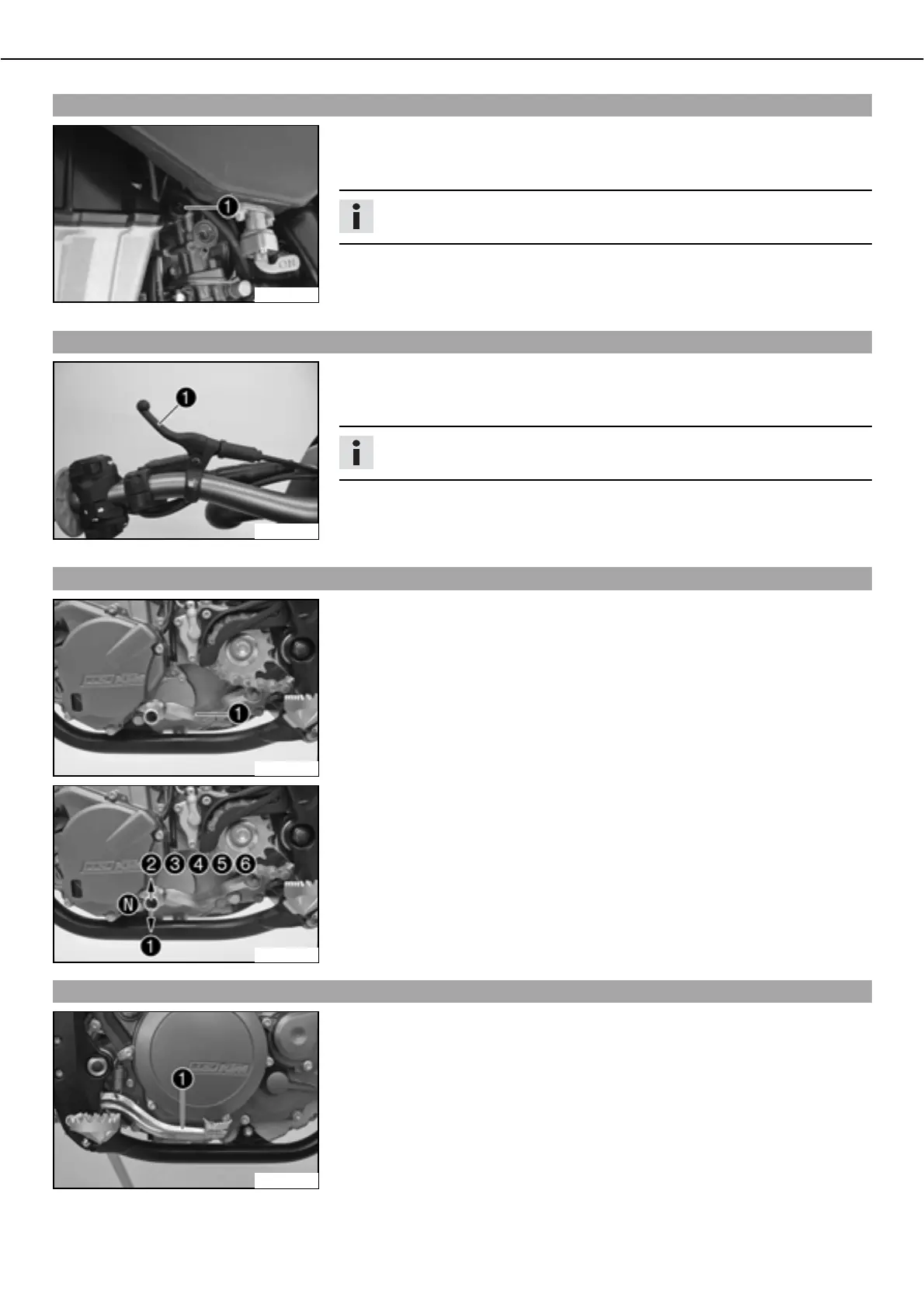

OPERATING ELEMENTS 21
Choke (EXC-RbAUS/UK, EXC-RbSIXbDAYS, EXC-RbUSA, XCR-W)
500135-10
The chokeb is fitted on the left side of the carburetor.
Activating the choke function frees an opening through which the engine can draw ex-
tra fuel. This gives a richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deactivated.
Possible states
• Choke function activated ದbThe choke lever is pulled out to the stop.
• Choke function deactivated ದbThe choke lever is pushed in to the stop.
Choke (EXC-RbEU)
500136-10
The flasher switchb is fitted on the left side of the handlebar.
Activating the choke function frees an opening through which the engine can draw ex-
tra fuel. This gives a richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deactivated.
Possible states
• Choke function activated ದbThe choke lever is pulled to the stop.
• Choke function deactivated ದbThe choke lever is pushed back to the stop.
Shift lever
500138-10
The shift leverb is mounted on the left side of the engine.
500138-11
The gear positions can be seen in the photograph.
The neutral or idle position is between the first and second gears.
Foot brake pedal
500139-10
The foot brake pedalb is located in front of the right footrest and operates the rear
wheel brake.
