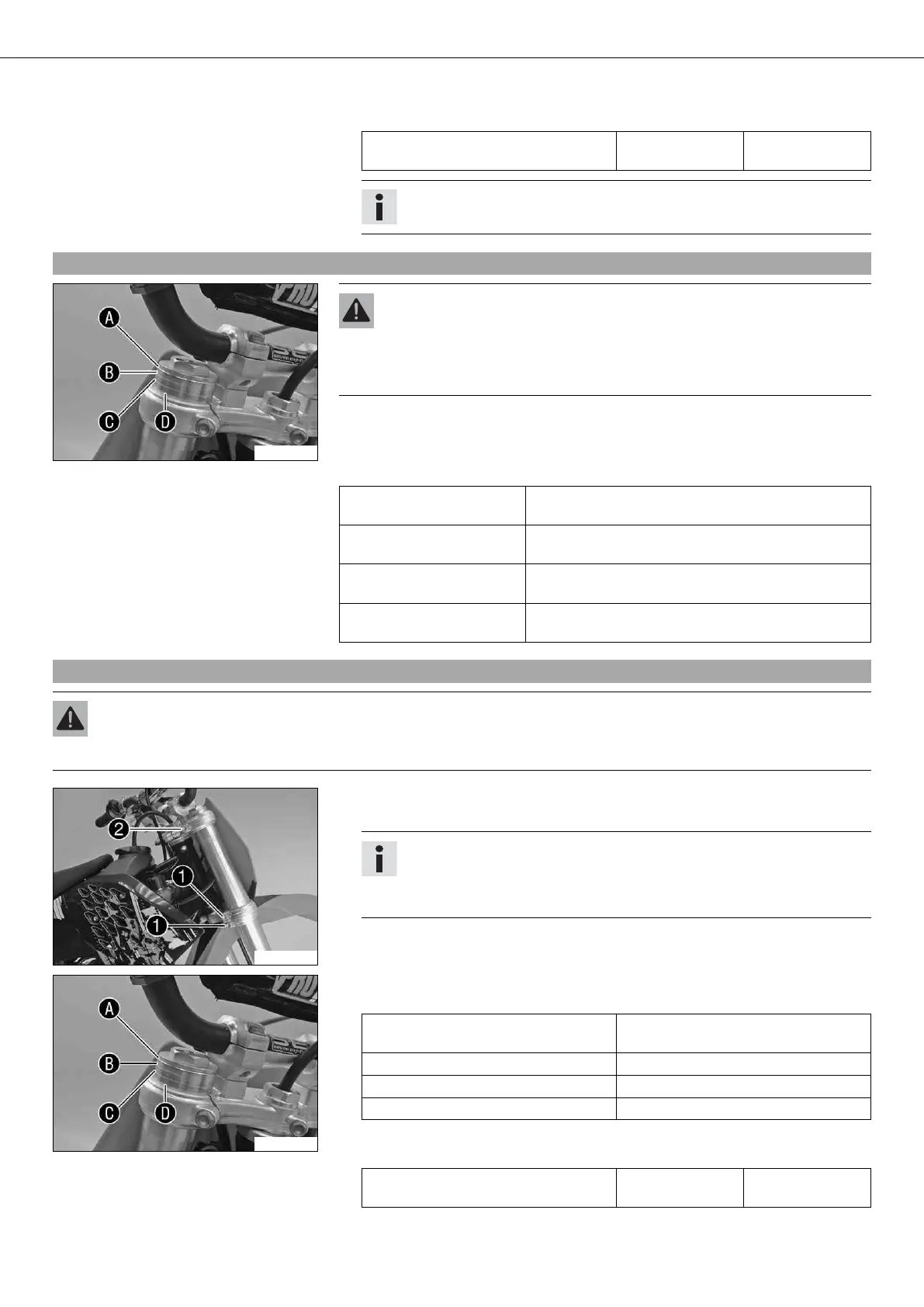

TUNING THE CHASSIS 25
– Position the handlebar clamp. Mount and evenly tighten the four screws .
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Info
Make sure the gap width is even.
9.12Vehicle level
700533-01
Warning
Danger of accidents Modifications to the suspension settings can seriously alter
the vehicle's ride behavior.
– Following modifications, ride slowly at first to get the feel of the new ride
behavior.
The vehicle level at the front can be adjusted via the fork legs clamp.
The fork overhang can be individually adjusted to the rider's body size. The fork should
be pushed through no further than position . Position  corresponds to the standard
setting.
Upper triple clamp flush
with top position

Upper triple clamp flush
with 1st ring
 Standard
Upper triple clamp flush
with 2nd ring

Upper triple clamp flush
with 3rd ring

9.13Adjusting the fork overhang x
Warning
Danger of accidents Modifications to the suspension settings can seriously alter the vehicle's ride behavior.
– Following modifications, ride slowly at first to get the feel of the new ride behavior.
700534-01
– Loosen screws  on the lower triple clamp.
– Loosen screw  on the upper triple clamp.
Info
Loosen the screws to the point where the fork leg can be moved without
damaging it.
Make the adjustments first on one fork leg and then on the other.
700533-01
– Adjust the fork overhang.
Guideline
Upper triple clamp flush with end of
outer tube

Upper triple clamp flush with 1st ring  Standard
Upper triple clamp flush with 2nd ring 
Upper triple clamp flush with 3rd ring 
– Tighten screw .
Guideline
Screw, top triple clamp M8 25 Nm
(18.4 lbf ft)
