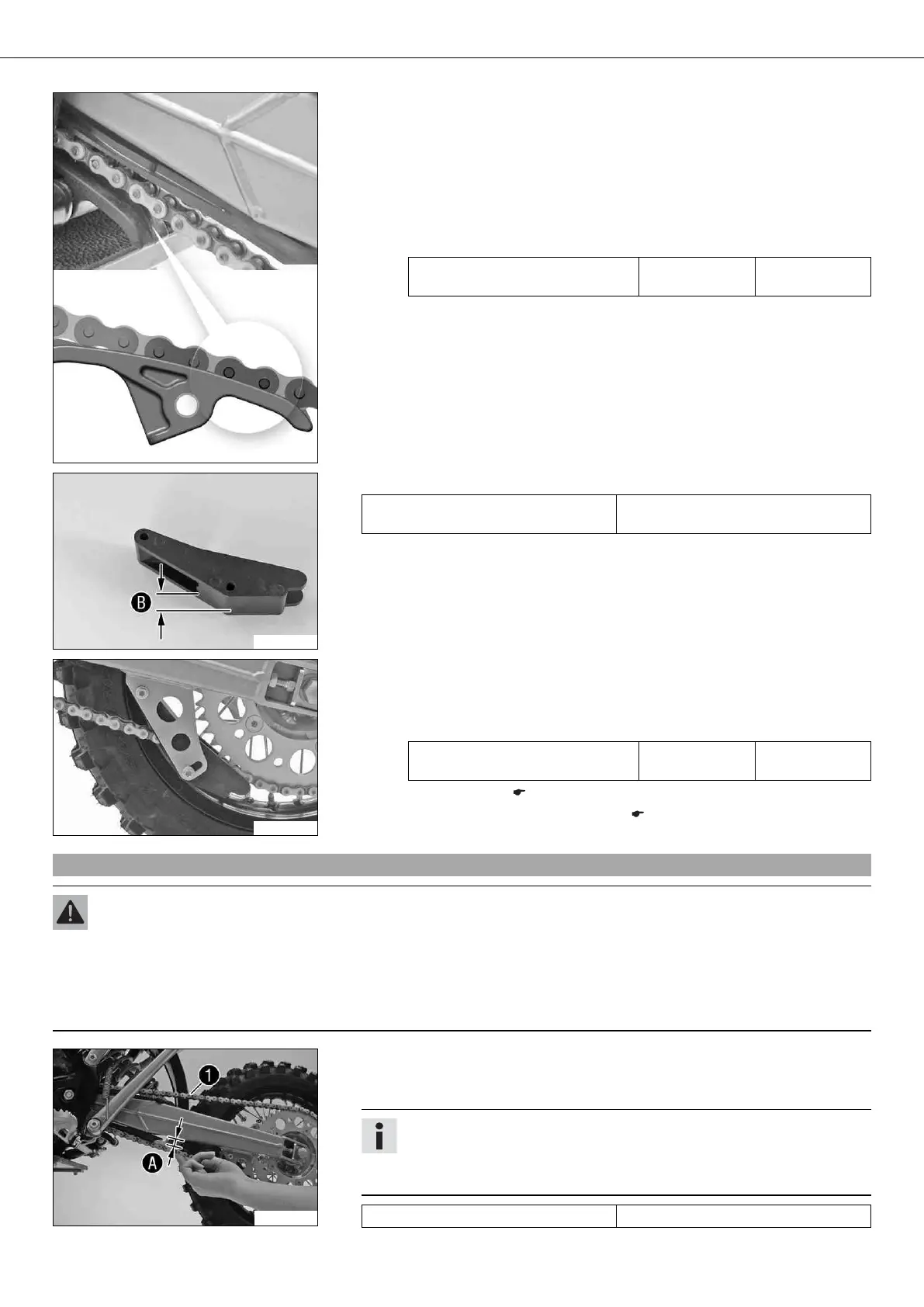

MAINTENANCE WORK ON THE CHASSIS 44
B00383-10
– Check the chain sliding piece for wear.
» If the lower bolt edge of the chain is in line with or below the chain sliding
piece:
–
Change the chain sliding piece. x
– Check the chain sliding piece for tightness.
» If the chain sliding piece is loose:
– Tighten the chain sliding piece.
Guideline
Remaining screws, chassis M8 25 Nm
(18.4 lbf ft)
B00384-10
– Measure the material thickness on the bottom of the chain guide.
Minimum distance at the lowest
position
13 mm (0.51 in)
» If distance is less than the specified measurement:
–
Change the chain guide. x
B00385-01
– Check the chain guide for tightness.
» If the chain guide is loose:
– Tighten the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
– Install the chain guard. ( p. 40)
– Remove the motorcycle from the lift stand. ( p. 27)
10.37Checking the chain tension - installing rear wheel
Warning
Danger of accidents Danger caused by incorrect chain tension.
– If the chain tension is too high, the components of the secondary power train (chain, engine sprocket, rear sprocket, bear-
ings in transmission and rear wheel) are under additional load. Apart from premature wear, in extreme cases the chain can
rupture or the countershaft of the transmission can break. On the other hand, if the chain is loose, it can fall off the engine
sprocket or the rear sprocket and block the rear wheel or damage the engine. Check the chain tension and correct if neces-
sary.
700537-01
– Make sure that the chain adjusters are fitted correctly on the adjusting screws.
– Push the chain at the end of the chain sliding component upward to measure the
chain tension .
Info
The upper chain section must be taut.
Because chain wear is not always even, repeat this measurement at differ-
ent chain positions.
Chain tension 5… 8 mm (0.2… 0.31 in)
