MAINTENANCE WORK ON THE ENGINE 67

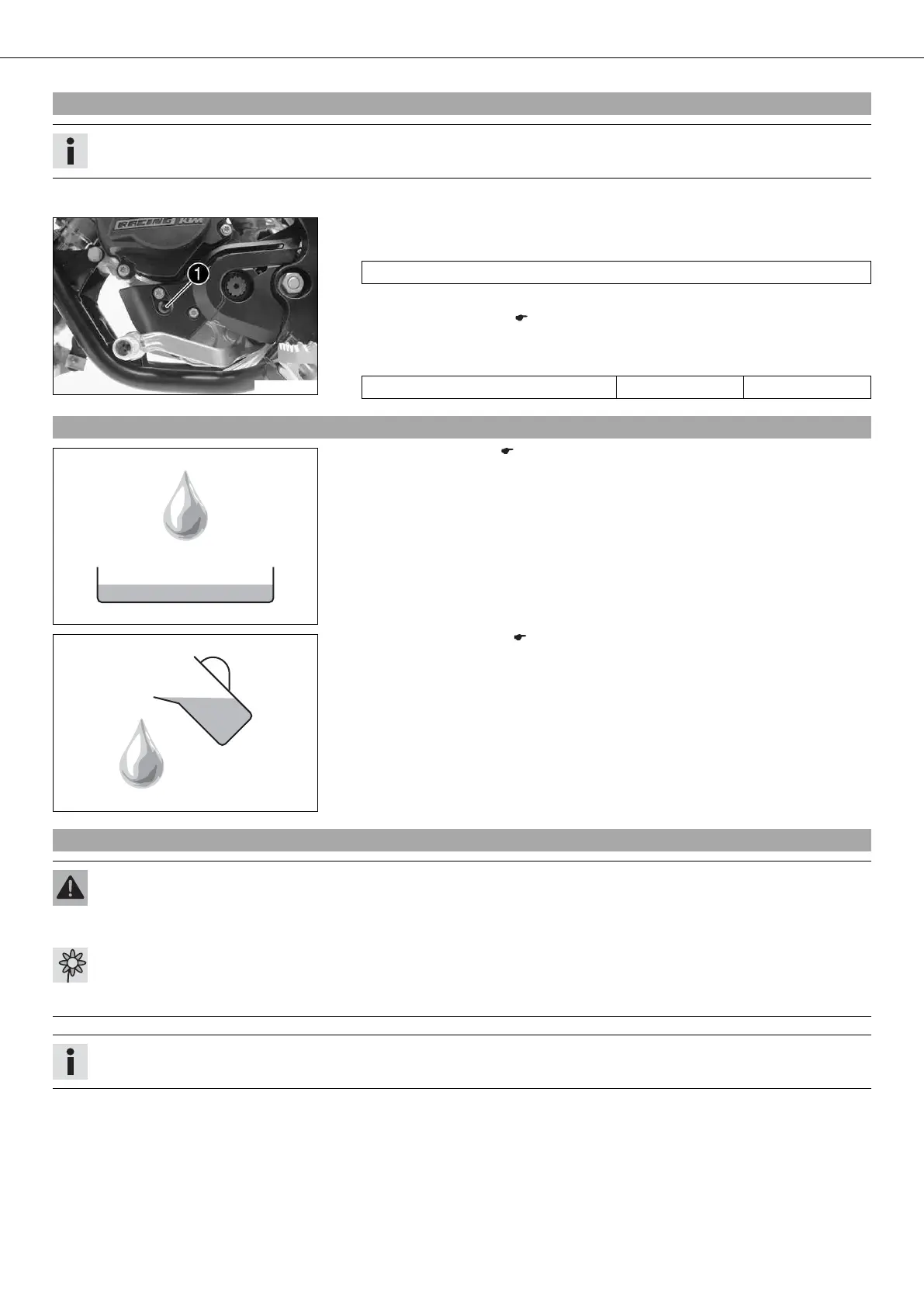

15.1Checking the gear oil level
Info
The gear oil level must be checked when the engine is cold.
– Stand the motorcycle upright on a horizontal surface.
300661-10
– Remove gear oil level check screw .
– Check the gear oil level.
A small amount of gear oil should flow out of the hole.
» If no gear oil flows out:
–
Add gear oil. x ( p. 68)
– Mount and tighten the gear oil level check screw.
Guideline
Screw, gear oil level check M6 6 Nm (4.4 lbf ft)
15.2Changing the gear oil x
400721-01
–
Drain the gear oil. x ( p. 67)
400722-01
–
Fill up with gear oil. x ( p. 68)
15.3Draining the gear oil x
Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Drain the gear oil only when the engine is warm.
– Stand the motorcycle on its side stand on a horizontal surface.
