MAINTENANCE WORK ON THE CHASSIS 42
700537-01

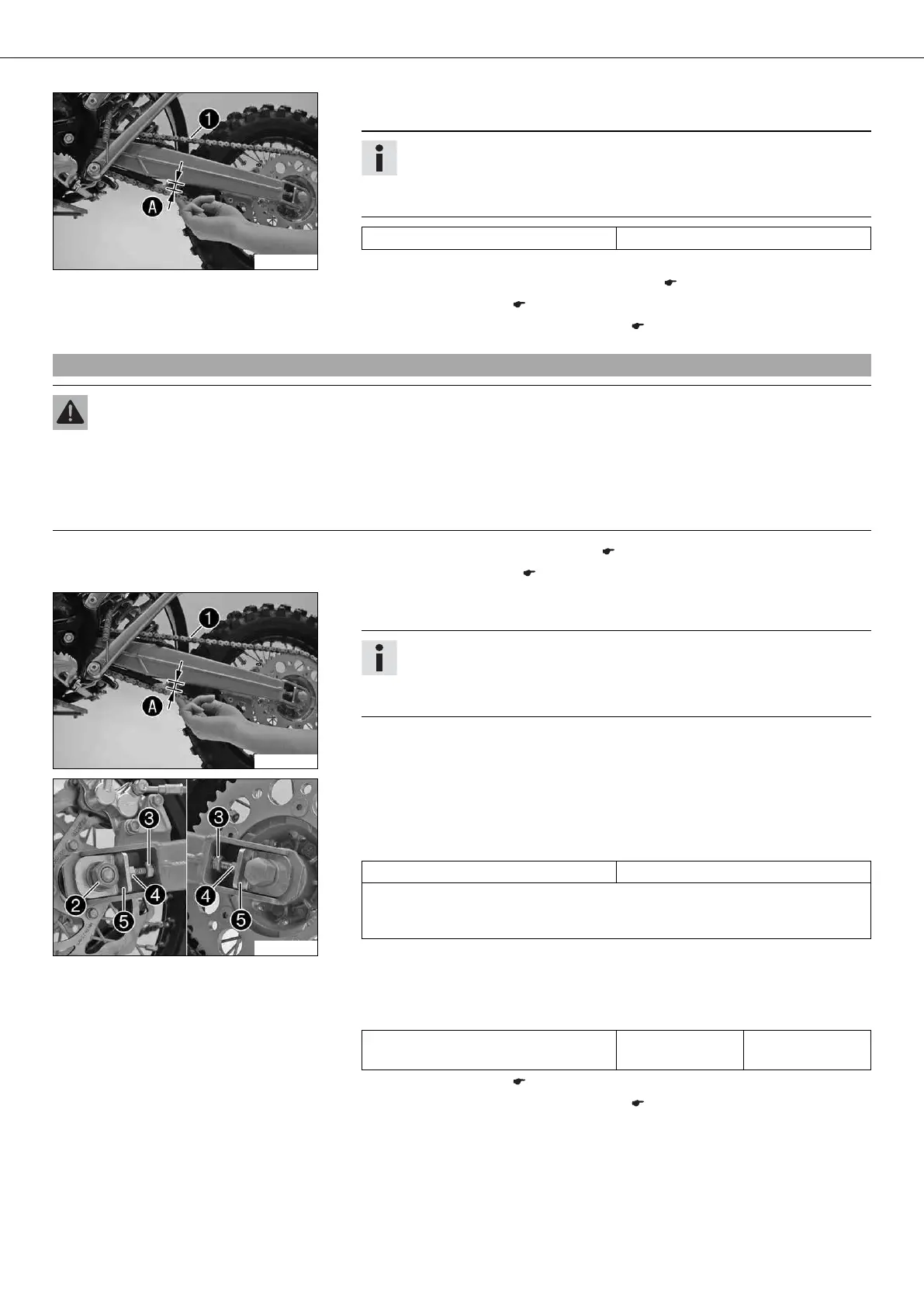

– Push the chain at the end of the chain sliding component upward to measure the
chain tension .
Info
The upper chain section  must be taut.
Because chain wear is not always even, repeat this measurement at differ-
ent chain positions.
Chain tension 5… 8 mm (0.2… 0.31 in)
» If the chain tension does not meet specifications:
– Adjusting chain tension - after checking. ( p. 45)
– Install the chain guard. ( p. 40)
– Remove the motorcycle from the lift stand. ( p. 27)
10.35Adjusting the chain tension
Warning
Danger of accidents Danger caused by incorrect chain tension.
– If the chain tension is too high, the components of the secondary power train (chain, engine sprocket, rear sprocket, bear-
ings in transmission and rear wheel) are under additional load. Apart from premature wear, in extreme cases the chain can
rupture or the countershaft of the transmission can break. On the other hand, if the chain is loose, it can fall off the engine
sprocket or the rear sprocket and block the rear wheel or damage the engine. Check the chain tension and correct if neces-
sary.
– Raise the motorcycle with a lift stand. ( p. 27)
– Remove the chain guard. ( p. 40)
700537-01
– Push the chain at the end of the chain sliding component upward to measure the
chain tension .
Info
The upper chain section  must be taut.
Because chain wear is not always even, repeat this measurement at differ-
ent chain positions.
700452-01
– Loosen nut .
– Loosen nuts .
– Adjust the chain tension by turning the adjusting screws  to the left and right.
Guideline
Chain tension 5… 8 mm (0.2… 0.31 in)
Turn the left and right adjusting screws  so that the distance of the chain
adjuster to the link fork on the left and right is equal and the rear wheel is in line
with the front wheel.
– Tighten nuts .
– Make sure that chain adjusters  are fitted correctly on adjusting screws .
– Tighten nut .
Guideline
Nut, rear wheel spindle M12x1 40 Nm
(29.5 lbf ft)
– Install the chain guard. ( p. 40)
– Remove the motorcycle from the lift stand. ( p. 27)
