TUNING THE CHASSIS 22

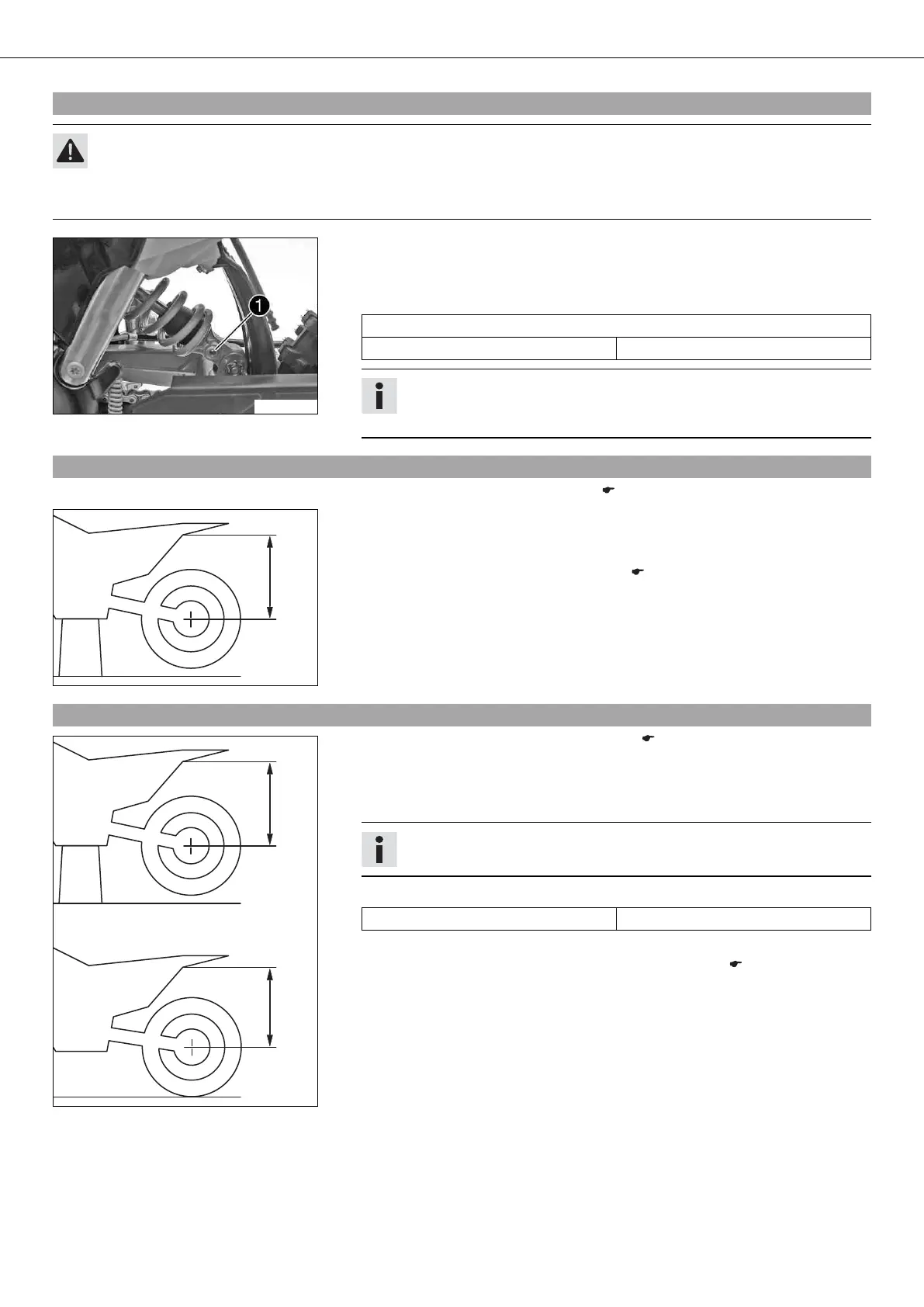

9.4Adjusting the rebound damping of the shock absorber
Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop
will be glad to help.)
700410-01
– Turn adjusting screw  clockwise up to the last perceptible click.
– Turn back counterclockwise by the number of clicks corresponding to the shock
absorber type.
Guideline
Rebound damping
Standard 12 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.
9.5Measuring rear wheel sag unloaded
– Raise the motorcycle with a lift stand. ( p. 26)
0
0
AA
400988-10
– Measure the distance – as vertical as possible – between the rear axle and a fixed
point, for example, a mark on the side cover.
– Make a note of the value as measurement .
– Remove the motorcycle from the lift stand. ( p. 26)
9.6Checking the static sag of the shock absorber
0
0
AA
0
0
BB
400989-10
– Measure distance  of rear wheel unloaded. ( p. 22)
– Hold the motorcycle in a vertical position with the assistance of another person.
– Measure the distance between the rear axle and the fixed point again.
– Make a note of the value as measurement .
Info
The static sag is the difference between measurements  and .
– Check the static sag.
Static sag 33 mm (1.3 in)
» If the static sag is less or more than the specified value:
–
Adjust the spring preload of the shock absorber. x ( p. 23)
