MAINTENANCE WORK ON THE CHASSIS 44

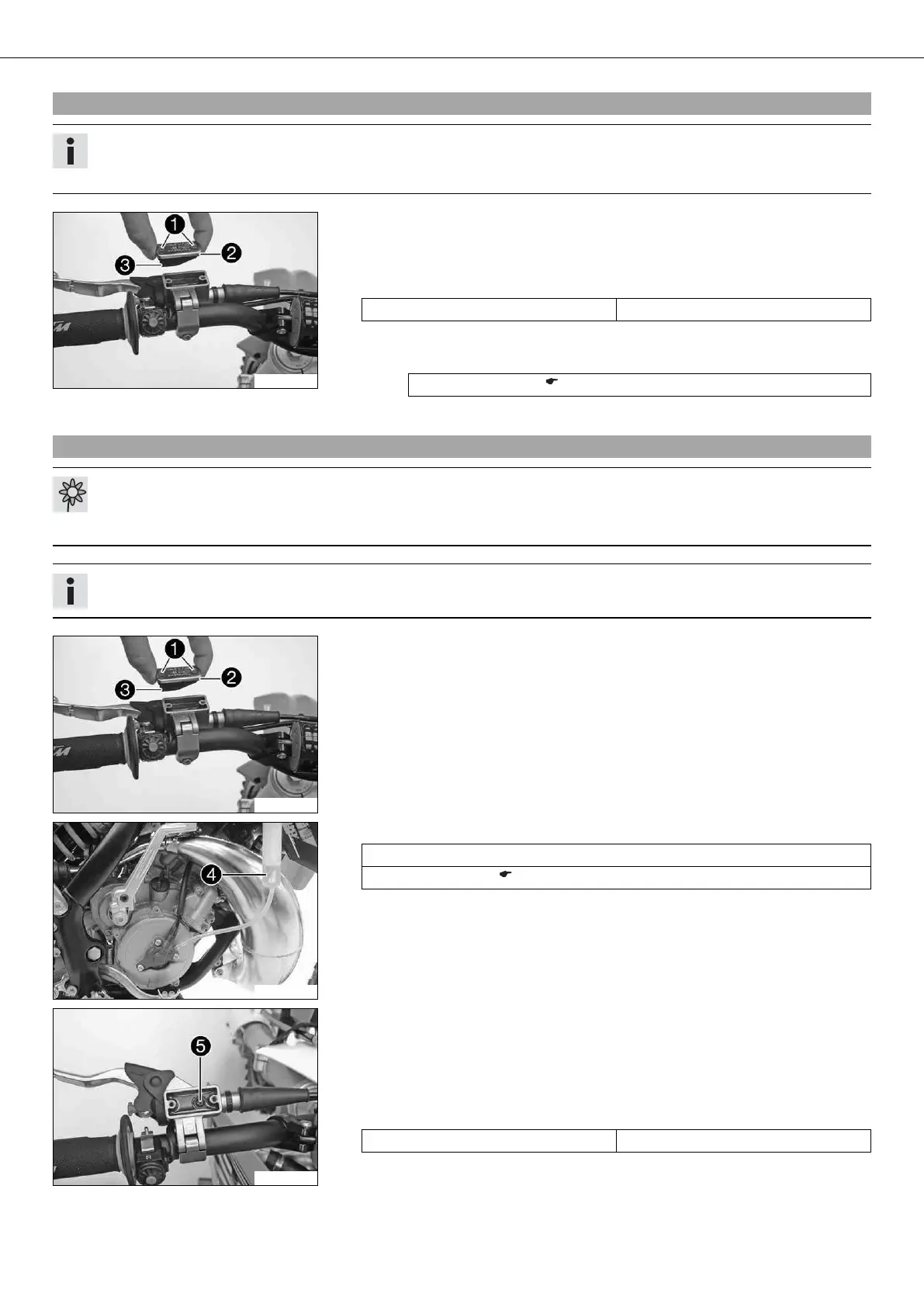

10.44Checking the fluid level of hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining disc.
Do not use brake fluid.
C00044-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
– Remove screws .
– Remove cover with diaphragm .
– Check the fluid level.
Fluid level under top level of container 4 mm (0.16 in)
» If the level of the fluid does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( p. 80)
– Position the cover with the diaphragm. Mount and tighten the screws.
10.45Changing the hydraulic clutch fluid x
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
The fluid level rises with increasing wear of the clutch lining disc.
C00044-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
– Remove screws .
– Remove cover with diaphragm .
300670-10
– Fill bleeding syringe with the appropriate hydraulic fluid.
Bleed syringe (50329050000)
Hydraulic fluid (15) ( p. 80)
– On the slave cylinder, remove the bleeder screw and mount bleeding syringe .
C00045-10
– Inject the liquid into the system until it escapes from drill hole of the master
cylinder without bubbles.
– To prevent overflow, drain fluid occasionally from the master cylinder reservoir.
– Remove the bleeding syringe. Mount and tighten screws bleeder screw.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level under top level of container 4 mm (0.16 in)
– Position the cover with the diaphragm. Mount and tighten the screws.
