KTM 65 SX 2012 User Manual

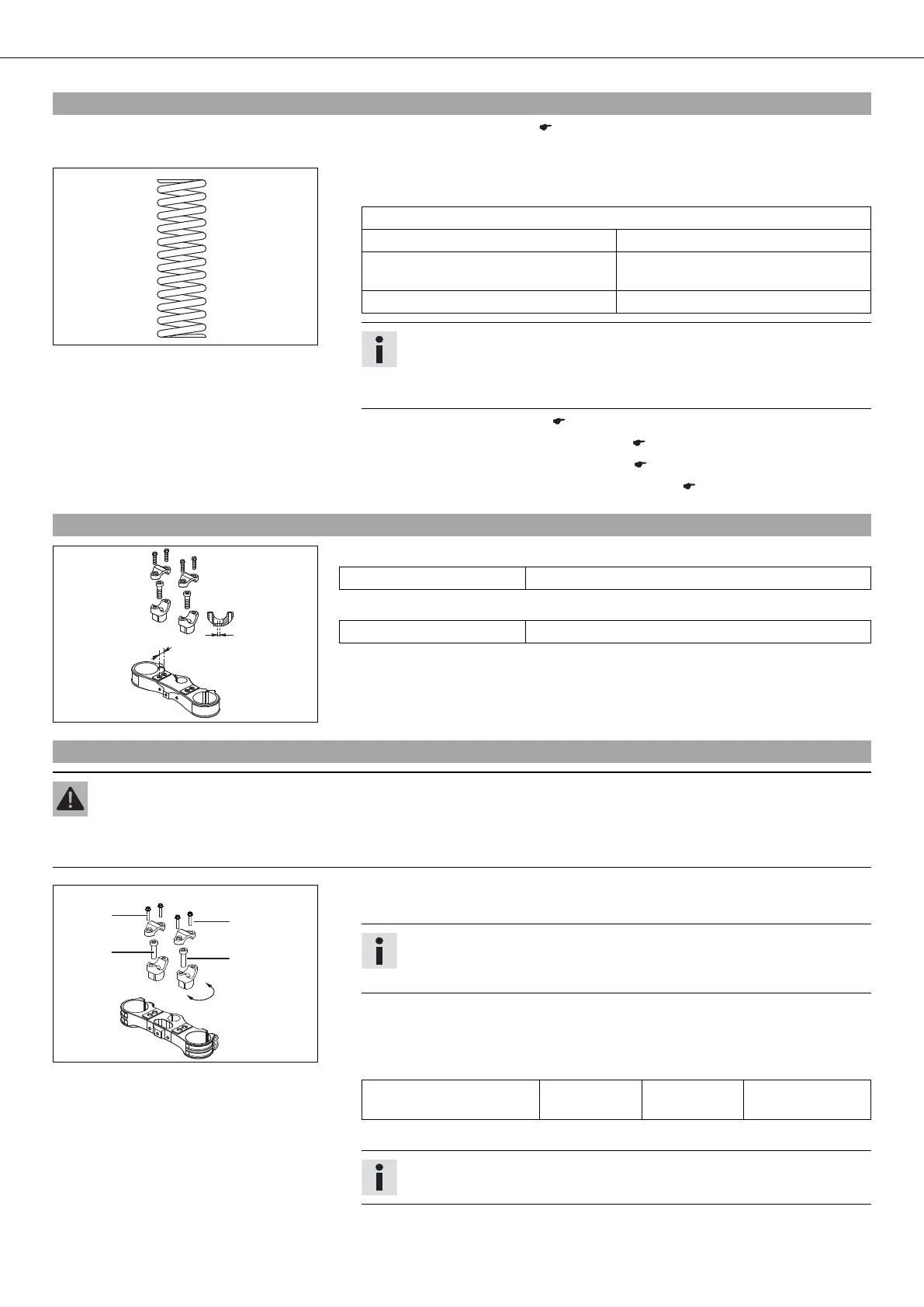

TUNING THE CHASSIS 24
9.9Adjusting the riding sag x
–
Remove shock absorber. x ( p. 33)
– After removing the shock absorber, clean it thoroughly.
B00292-10
– Choose and mount a suitable spring.
Guideline
Spring rate
Weight of rider: < 35 kg (< 77 lb.) 35 N/mm (200 lb/in)
Weight of rider: 35… 45 kg (77…
99 lb.)
40 N/mm (228 lb/in)
Weight of rider: > 45 kg (> 99 lb.) 45 N/mm (257 lb/in)
Info
The spring rate is shown on the outside of the spring.
Smaller weight differences can be compensated by changing the spring
preload.
–
Install the shock absorber. x ( p. 33)
– Check the static sag of the shock absorber. ( p. 22)
– Check the riding sag of the shock absorber. ( p. 23)
– Adjust the rebound damping of the shock absorber. ( p. 22)
9.10Handlebar position
0
0
BB
0
0
AA
400271-11
On the upper triple clamp, there are 2 holes at a distance of  to each other.
Distance  between holes 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance of  from the center.
Distance  between holes 3.5 mm (0.138 in)
The handlebar supports can be mounted in 4 different positions.
9.11Adjusting handlebar position x
Warning
Danger of accidents Handlebar breakage.
– If the handlebar is bent or straightened it will cause material fatigue, and the handlebar can break. Always replace handle-
bar.
0
0
22
0
0
11
0
0
22
11
B00375-10
– Remove the four screws . Remove the handlebar clamp. Remove the handlebar
and lay it to one side.
Info
Protect the motorcycle and its attachments from damage by covering them.
Do not bend the cables and lines.
– Remove the two screws . Remove the handlebar support.
– Place the handlebar support in the required position. Mount and tighten the two
screws .
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
– Position the handlebar.
Info
Make sure cables and wiring are positioned correctly.
