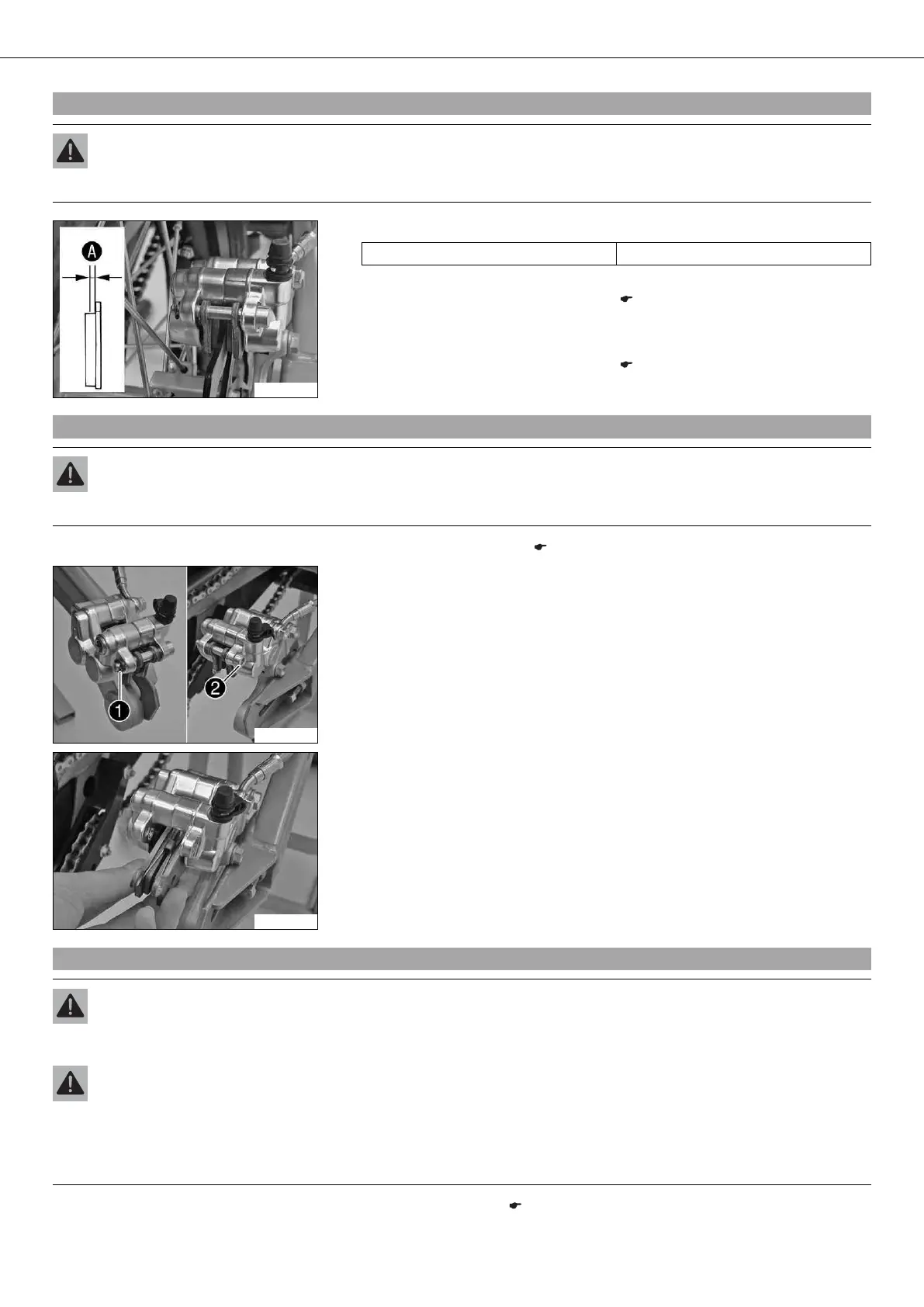

BRAKES 52
11.15Checking the rear brake linings
Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
– Change worn brake linings immediately. (Your authorized KTM workshop will be glad to help.)
700424-01
– Check the brake linings for minimum thickness .
Minimum thickness ≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
–
Change the rear brake linings. x ( p. 53)
– Check the brake linings for damage and cracking.
» If damage or wear is encountered:
–
Change the rear brake linings. x ( p. 53)
11.16Removing rear brake linings x
Warning
Danger of accident Brake system failure.
– Maintenance work and repairs must be carried out professionally. (Your authorized KTM workshop will be glad to help.)
–
Remove the rear wheel. x ( p. 56)
700428-01
– Remove lock washer .
– Remove screw .
700430-01
– Remove the brake linings.
– Clean brake caliper and brake caliper support.
11.17Installing the rear brake linings x
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Danger of accidents Reduced braking efficiency due to use of non-approved brake linings.
– Brake linings available from accessory suppliers are often not tested and approved for use on KTM vehicles. The construc-
tion and friction factor of the brake linings and therefore the brake power can differ considerably from the original KTM
brake linings. If brake linings are used that differ from the originals, there is no guarantee that they comply with the origi-
nal license. The vehicle no longer corresponds to the condition at delivery, and the warranty is no longer valid.
– Check the brake discs. ( p. 45)
